Indoor Power Centre for one AXIS A1001 Network door controller

  • Selectable PoE+ or mains supply power input
  • Simple layout, easy to install and connect
  • Can power magnetic locks from PoE
  • User-selectable 12V DC or 24V DC lock output voltage
  • Compact design to install near doors
  • All the A1001’s features and functions remain available to the integrator
  • Outputs can be configured to power auxiliary devices

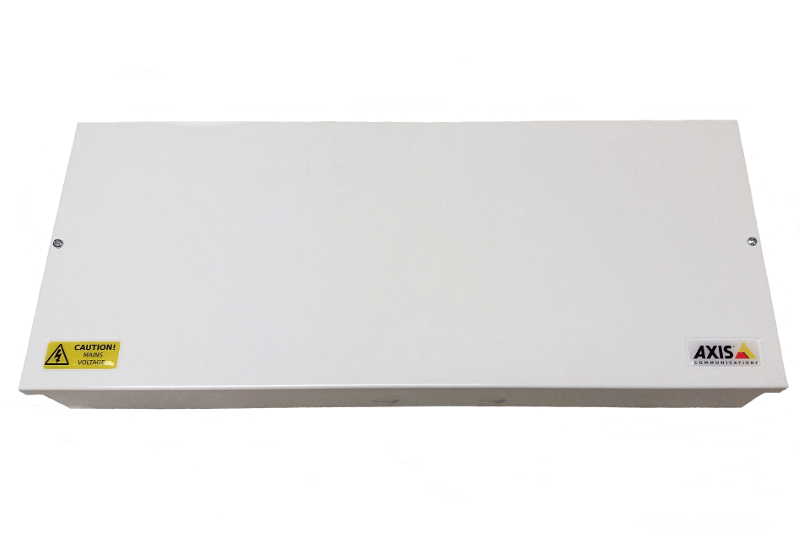

  • Indoor secure steel enclosure with tamper monitoring

DA890IN: Indoor Power Centre for one AXIS A1001 Network door controller

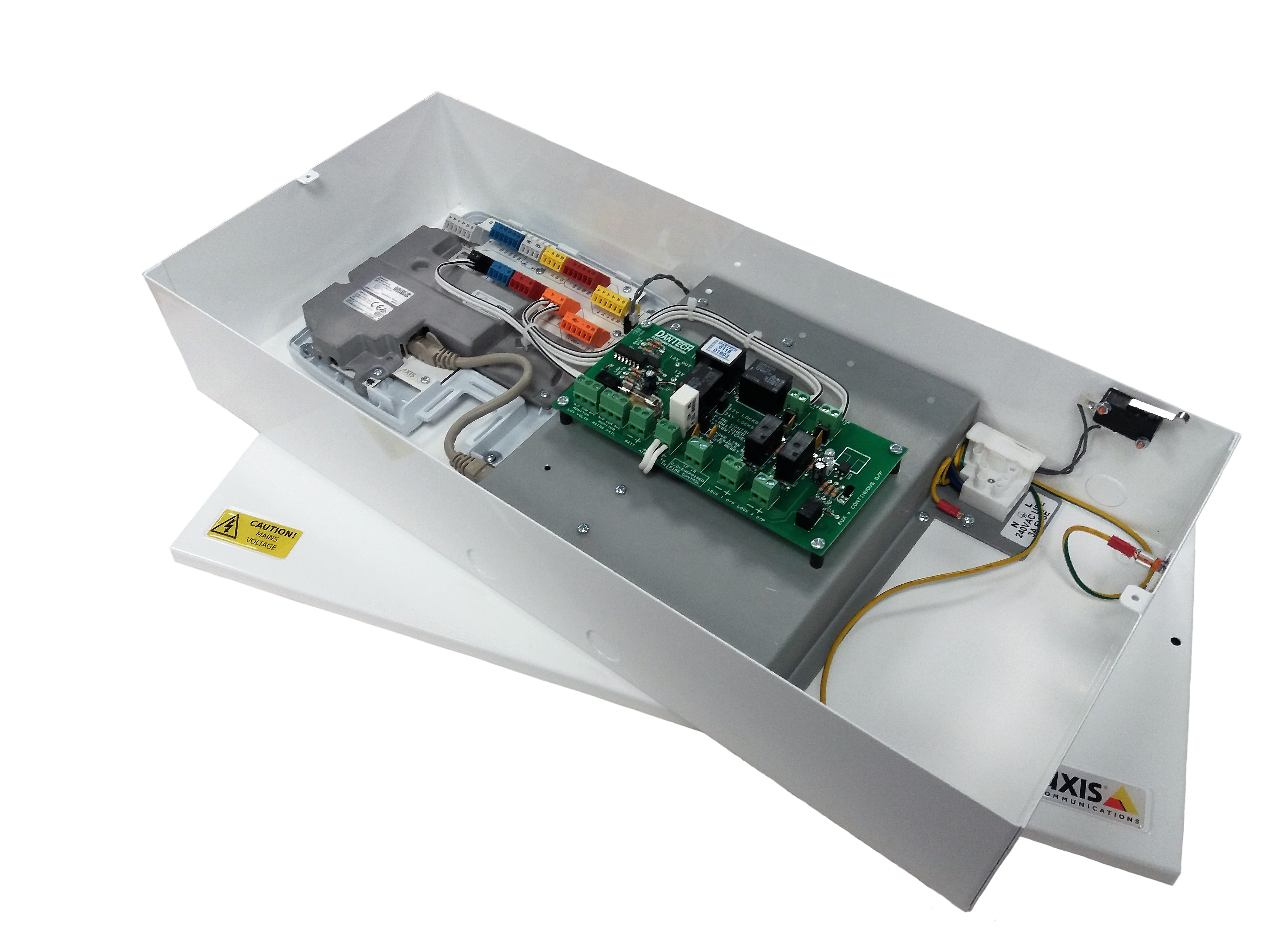

Easily install an AXIS A1001 Network door controller within the mild steel wall mount secure enclosure with tamper monitoring of the DA890IN for professional installations. Choose between mains or PoE+ to provide power for the controller and locks.

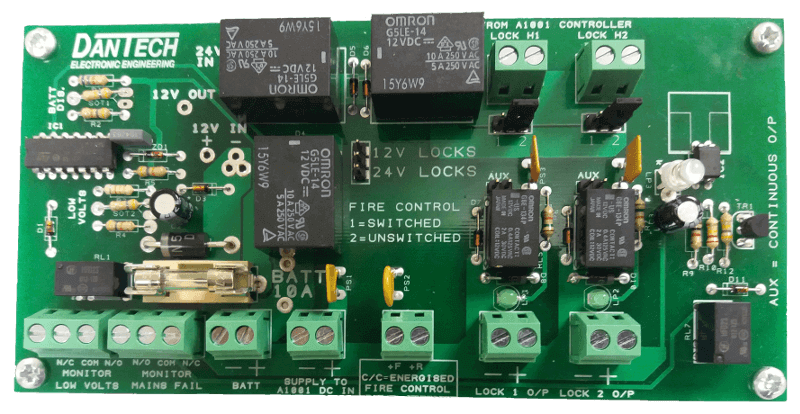

All of the DA890 Power centre range provide battery back-up support providing uninterrupted power during power failures, signalling contacts for mains power failure and low-battery monitoring in addition to providing lock power controlled by the A1001 Network door controller. PCB jumpers enable simple configuration of the system. Select 12V or 24V DC power for locking systems, control and choose which outputs are switched on or off when signaled by a fire panel or other system.

Ordering information

Technical information

Download Data sheet

Outputs: A1001 controller power

FusedSelf-reseting fuses
Connection typeRising clamp PCB terminal block
Output1 x 1A 12V DC

Outputs: Lock power availability

FusedSelf-reseting fuses
Connection typeRising clamp PCB terminal block
InputOutput selectionOutput
Mains 90-270V AC12V2A 12V DC via 2 outputs
Mains 90-270V AC24V1A 24V DC via 2 outputs
PoE+ 30W12V1A 12V DC via 2 outputs
PoE+ 30W24V500mA 24V DC via 2 outputs
note: current shown is total across both lock outputs

Inputs: Mains power

Power on indicationLED Indication
Voltage90-270V AC, 47-63Hz
Fused3A fast blow 20x5mm HRC fuse
Connection type10mm² internal terminal block (3 x 1.5mm² or 2 x 2.5mm²)
Power consumption≤ 60W
note: use mains or PoE+ supply

Inputs: PoE+ power

Power on indicationLED Indication
VoltagePoE+ IEEE802.3:2012 Type 2 Class 4 (30W 'at')
Connection typeRJ45
Power consumption≤ 25.5W
note: use mains or PoE+ supply

VRLA Stand-by battery

Type12V 7Ah VRLA (e.g. Yuasa NP7-12)
Fused20 x 5mm fast blow 10A glass fuse
Connection typeBattery lead with push fit connectors, PCB terminal block (2.5mm²)
Battery protectionAutomatic battery disconnect/reconnect deep-discharge protection
note: recommended operation is with stand-by battery fitted.

Monitoring contacts: Mains fail & Battery low-voltage

Contact configuration2 x SPCO single-pole change-over
RatingMaximum switching 30V 1A AC/DC
Connection typeRising clamp PCB terminal block (2.5mm²)

Environmental

Operating temperature-10°C to +40°C
Storage temperature-20°C to +50°C
Operating relative humidityMaximum 95% non-condensing
Ingress protectionIP20

Dimensions

Product

Width515mm
Height235mm
Depth95mm
Weight≤ 4.1Kg
Enclosure materialMild steel powder coasted. White RAL9016

Ordering information

GTINPart codeDescription
DA890INDantech Indoor Power Centre for AXIS A1001 Network door controller

Available from all good distributors.

Other models

GTINPart codeDescription
DA890EXDantech IP66 Weather-resistant Power Centre for AXIS A1001 Network door controller
DA890RMDantech 19" 2U Rack-mount Power Centre for AXIS A1001 Network door controller
DA890INQUADDantech large indoor Power Centre for AXIS A1001 Network door controller
DA890INQUADSWDantech large indoor Power Centre with integrated network switch for AXIS A1001 Network door controller

Available from all good distributors.
