Power Centre for Dual Paxton Net2 Plus controllers

  • All in one equipment mounting and power solution for access control
  • 12V DC (13.7) high reliability and efficiency switchmode power supply

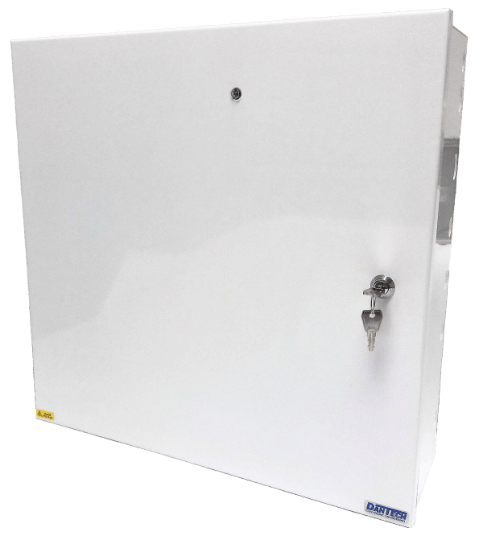

  • Neat and compact key-lockable enclosure with removable lid
  • User-selectable fire alarm switching lock outputs
  • Separate PCB & lock power outputs
  • Battery back-up - houses and charges two 12V VRLA batteries up to 12Ah

DA481: Power Centre for two Paxton Net2 Plus controllers

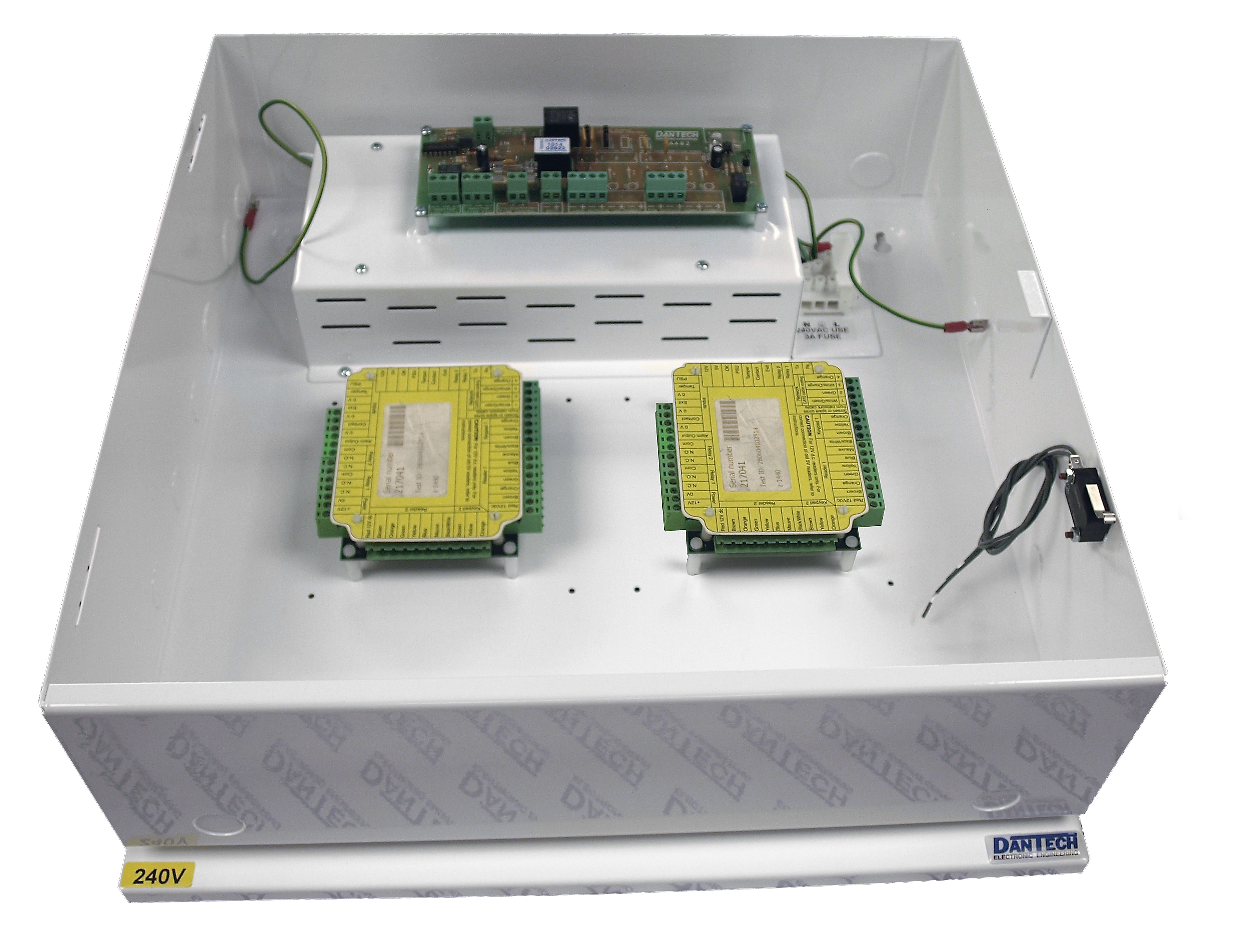

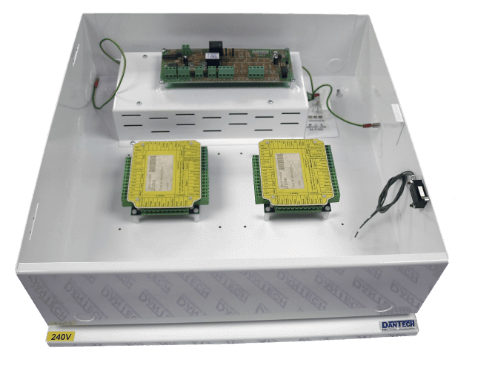

The DA481 is a unique access control enclosure suitable for mounting two controllers (or other equipment), as well as providing lock and system power. It has a built-in 12V DC battery backed power supply unit, designed for ease of use and reliability. Access control equipment can be housed and powered from one neat and tidy central location. Just add PCBs & batteries.

The power supply is equipped with monitoring contacts for mains and battery status, battery low-voltage disconnect (deep-discharge protection) and user-selectable fire alarm switching of lock outputs.

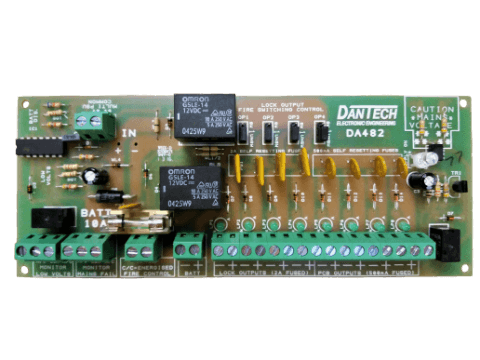

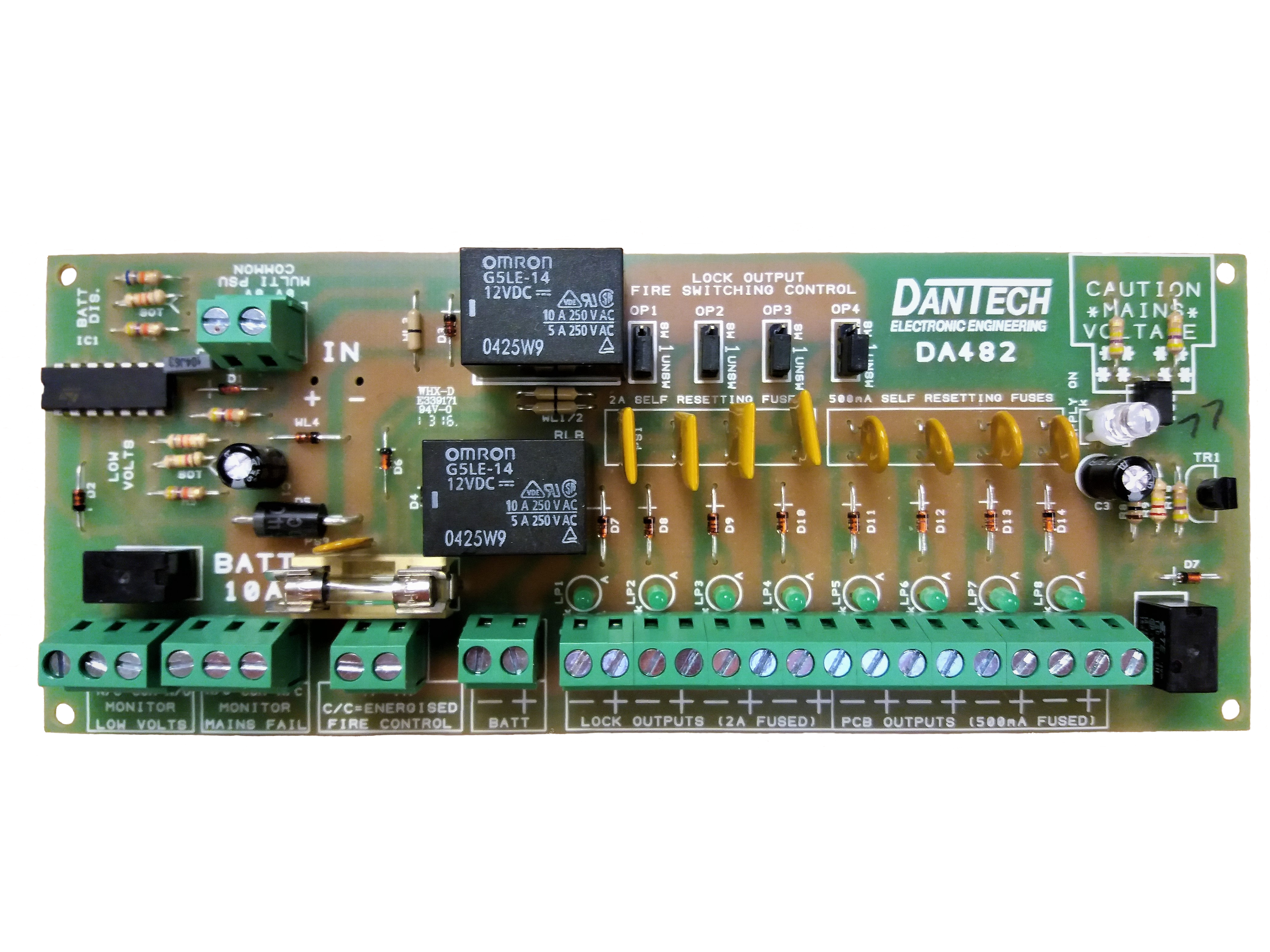

The unit contains two sets of outputs for each PCB position, a 500mA PCB output and a 2A lock output that is switchable by the fire enable. Both the switched and non-switched-outputs are protected by self resetting fuses and have individual LED status indication for each output.

The 2A switched-outputs can be switched via a single fire panel relay.

These units are supplied as standard pre-fitted with PCB mounting pillars configured suitably for some access control PCBs. This can be modified for other equipment, please contact us to find out more.

Ordering information

Technical information

Download Data sheet

Lock outputs

Fire enable switched Yes
In-built EMF spike protection Yes
Quantity Two
Voltage 12V DC (13.7V)
Current Maximum 2A each
Connection type PCB terminal block (2.5mm²)
Fused 2A self-resetting fuses

PCB outputs

Fire enable switched No
In-built EMF spike protection Yes
Quantity Two
Voltage 12V DC (13.7V)
Current Maximum 500mA each
Connection type PCB terminal block (2.5mm²)
Fused 500mA self-resetting fuses

Input

Voltage 230V AC @ 50Hz (+/- 10%)
Power consumption < 125VA
Connection type 10mm² internal terminal block (3 x 1.5mm² or 2 x 2.5mm²)
Fused 3A Mains fuse (BS1362)

Environmental

Operating temperature -10°C to +40°C
Storage temperature -20°C to +50°C
Operating relative humidityMaximum 95% non-condensing
Ingress protection N/A

Dimensions:

Product

Width 475mm
Height 455mm
Depth 120mm
Weight < 6.6Kg
Enclosure material Mild steel
Finish Powder coated RAL9016 White

Shipping packaging

Width485mm
Height465mm
Depth130mm
Weight *including product< 7Kg
Packaging materialCardboard

Other

Estimated operations before failure (MTBF) 50,000 hours
CE Approved Yes
Battery support Two 12V VRLA up to 12Ah

Ordering information

GTINPart codeDescription
5060501322273 DA481Power Centre for two Paxton Net2 Plus controllers

Available from all good distributors.
