DA774-LGE-12VDC

  • 495 x 690 x 120mm mild steel enclosure
  • 12V DC up to 8A output
  • Remote switching outputs
  • Simple layout, easy to install and connect

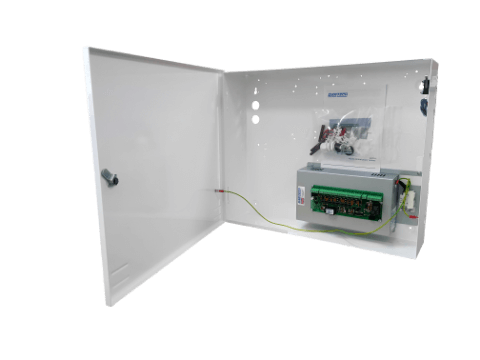

DA774-SML-12VDC

  • 495 x 420 x 120mm mild steel enclosure
  • 12V DC up to 8A output
  • Remote switching outputs
  • Simple layout, easy to install and connect

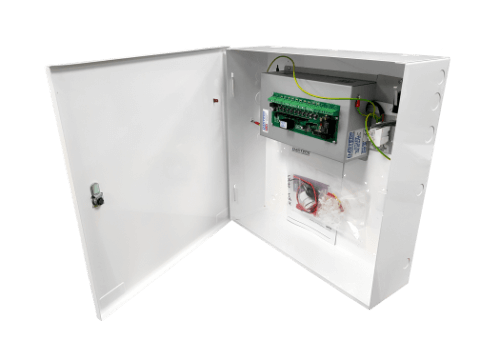

DA774-XSM-12VDC

  • 405 x 400 x 120mm mild steel enclosure
  • 12V DC up to 8A output
  • Remote switching outputs
  • Simple layout, easy to install and connect

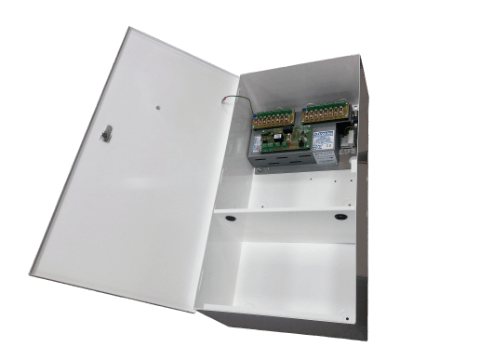

DA774-DB-12VDC

  • 600 x 300 x 200mm mild steel enclosure
  • 12V DC up to 8A output
  • Remote switching outputs
  • Simple layout, easy to install and connect

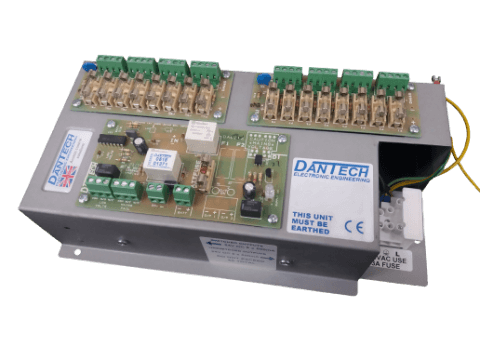

DA774-P-12VDC

  • Replacement PSU module
  • 12V DC up to 8A output
  • Remote switching outputs
  • Simple layout, easy to install and connect

DA774-LGE-24VDC

  • 495 x 690 x 120mm mild steel enclosure
  • 24V DC up to 4A output
  • Remote switching outputs
  • Simple layout, easy to install and connect

DA774-SML-24VDC

  • 495 x 420 x 120mm mild steel enclosure
  • 24V DC up to 4A output
  • Remote switching outputs
  • Simple layout, easy to install and connect

DA774-XSM-24VDC

  • 405 x 400 x 120mm mild steel enclosure
  • 24V DC up to 4A output
  • Remote switching outputs
  • Simple layout, easy to install and connect

DA774-DB-24VDC

  • 600 x 300 x 200mm mild steel enclosure
  • 24V DC up to 4A output
  • Remote switching outputs
  • Simple layout, easy to install and connect

DA774-P-24VDC

  • Replacement PSU module
  • 24V DC up to 4A output
  • Remote switching outputs
  • Simple layout, easy to install and connect

2019 Update

As part of ongoing efforts to improve our products and services, the DA774 Range of Access control Power Centres has been updated. Previous versions had included separate output PCBs for switched and non-switched-outputs with removable glass fuses. The newer model now has self reseting fuses and PCB jumper settings to configure if the output is to be switched or non-switched by the fire-control. Please refer to product information or contact us if you would like further information.

DA774 Power Centres

Available with 12V 8A DC or 24V 4A DC outputs, this Power Centre is ideal for access control applications. This unit is equipped with low-voltage monitoring clean contacts, mains-failure clean contacts and battery low-voltage disconnect (deep-discharge protection).

There are 10 load outputs available for use. All load outputs use automatic self-resetting fuses rated for continuous use and will allow a momentary inrush. Two of the outputs are designed to carry a higher load than the other eight. Please refer to product data sheet for more information.

Removable PSU sub-plate allows replacement without removing the wall-mounted enclosure.

These units can also be supplied with a removable sub-plate drilled to a required hole pattern to fit your access control PCB (or other equipment), size permitting, please contact us to find out more.

Ordering information

Fire enable

All load outputs can be selected as either: (1) Fire alarm switched or (2) Continuously powered. Simply move the associated jumper link to either position 1 or 2 for each load output. Ideal for access control applications where door locks are required to de-power during a fire event regardless of mains power availability.

Individually fused outputs

Each output is individually fused with self-resetting fuses rated for continuous use to protect the power supply in the event of equipment or wiring failures.

In-built back EMF spike protection

Electromotive forces are caused by changing magnetic fields around inductors, often through self induction during inrush, inducing a voltage back into the circuit. Should devices such as magnetic locks and motors cause an EMF spike, these units are equipped with back EMF spike protection to prevent damage.

Mains failure monitoring contacts

In the event that mains power is not detected the Mains Fail monitoring contacts will change-over. The volt free change-over contacts are ideal for switching equipment or providing signals to external systems.

Low-battery monitoring contacts

If the unit is equipped with a VRLA battery, the DA774 unit will automatically trickle charge it when mains power is available and seamlessly switch to this as a power source when mains power is not available. In the event of the battery is running low on capacity the Low Vol monitoring contacts will change-over, ideal for signalling systems or switching other equipment that the system is about to de-power.

Deep discharge protection

Completely discharging a battery or deep cycles can cause significant damage to batteries and reduce their future performance. To prevent this type of damage all DA774 Power centres will automatically disconnect a connected battery that has been depleted of useful capacity to protect it from damage. When mains power is restored, the unit will automatically re-connect and re-charge it.

Power on LED status indication

The internal power supply unit has a green LED to give visual indication of if power is available.

Individual-output LED status indication

Each output of the Power Centre has a green LED indicator to visually show an engineer the current power status of each output.

Mild steel wall-mountable enclosure

Precision-made enclosures, finished in a durable easy to clean white powder coating.

Cable entry knockouts on all sides

To assist with quick and simple installation, each enclosure features cable knock-outs on all sides so engineers can quickly prepare the enclosure for cable glands for wiring such as the mains power cable on any side of the enclosure.

White powder coating to RAL9016

Each enclosure is powder-coated in white to provide a tough durable, easy to clean finish.

Removable key-locking door with tamper switch

Each unit is fitted with a key locking, tamper-switched door that can be unhinged and removed without tools when unlocked for easy engineer access inside the unit. The tamper switch can be connected to internally fitted equipment such as access controllers or other equipment to signal that the enclosure has been opened.

Designed, tested and manufactured in Great Britain

Dantech Electronic Engineering design the products we make. We manufacture and test our products by hand with trained technicians to ensure every single unit that leaves our factory is something we are proud to have our name on and our guarantee. We are so confident in the quality of our made in Britain products, they each have five-years warranty. We take pride in knowing our customers receive a product that will do the job it was designed to do, for true value.

High reliability and efficiency switched-mode power supply

Switched-mode power supplies are much more energy efficient than coiled transformers that continuously produce magnetic fields for another coil to convert to an alternative power level. Switched-mode power supplies have power storage that feeds output filtering circuits at much lower voltages to that of the mains-input which is switched on and off at high frequency to maintain the power in the supply. This method wastes less energy making a much more energy efficient power supply.

Battery back-up

Integrated UPS function supports VRLA batteries up to 17Ah. When mains power is available this unit will charge and maintain the battery. When mains power is not available, this unit will seamlessly switch to the battery for power input maintaining power to the outputs. When power is restored, the unit will automatically seamlessly switch back to mains power and re-charge the battery.

Ordering information

GTINPart codeDescription
DA774-LGE-12VDC12V DC 8A Large mild steel wall mount Power Centre
DA774-LGE-24VDC24V DC 4A Large mild steel wall mount Power Centre
DA774-SML-12VDC12V DC 8A small mild steel wall mount Power Centre
DA774-SML-24VDC24V DC 4A small mild steel wall mount Power Centre
DA774-XSM-12VDC12V DC 8A Extra-small mild steel wall mount Power Centre
DA774-XSM-24VDC24V DC 4A Extra-small mild steel wall mount Power Centre
DA774-DB-12VDC12V DC 8A Deep mild steel wall mount Power Centre
DA774-DB-24VDC24V DC 4A Deep mild steel wall mount Power Centre
DA774-P-12VDC12V DC 8A Replacement power supply for DA774 Power Centre
DA774-P-24VDC24V DC 4A Replacement power supply for DA774 Power Centre

Available from all good distributors.
