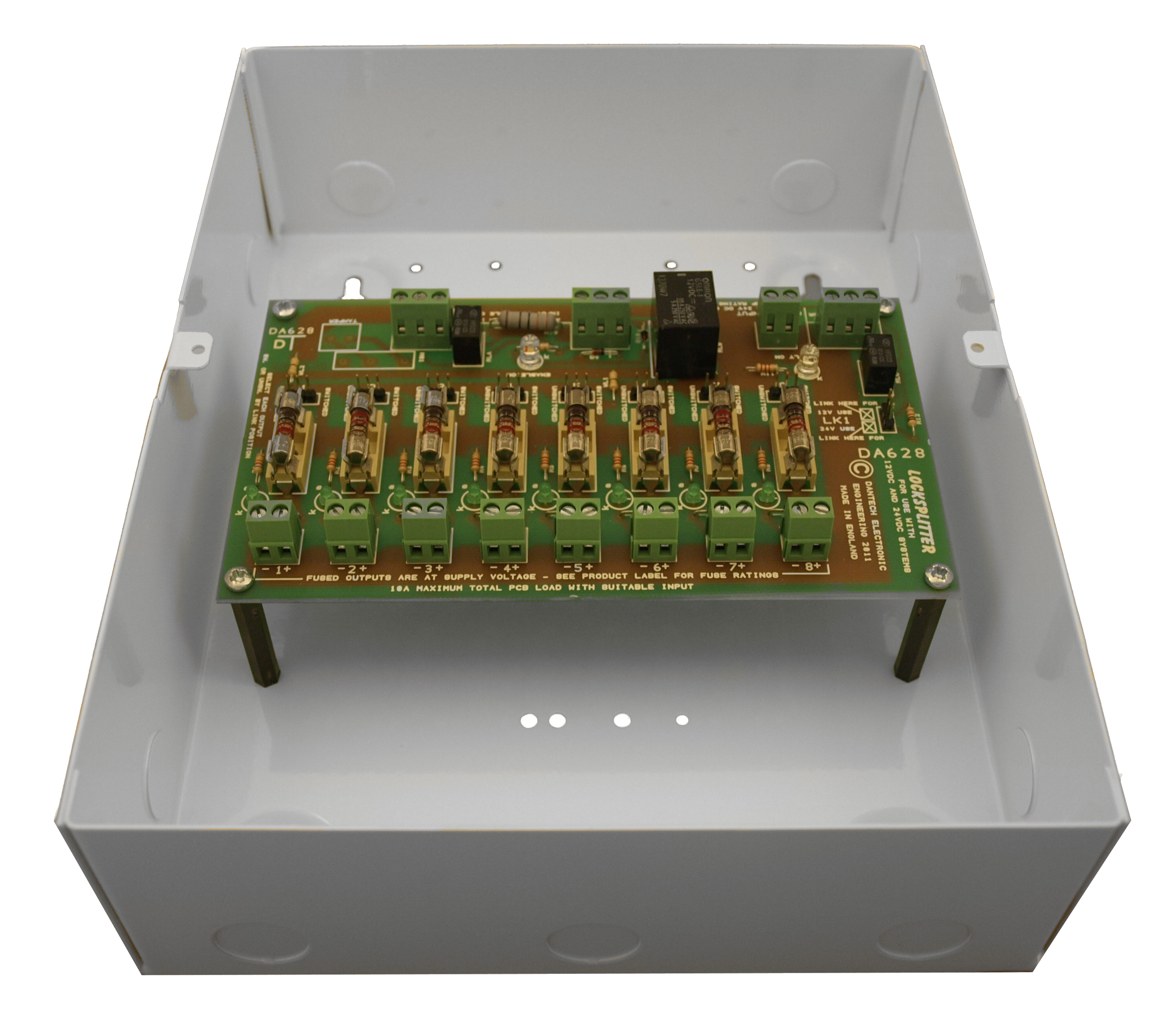

Steel-cased power splitter current distribution board for electronic locks

  • Available as either PCB-only, plated or in a mild steel enclosure
  • Input voltage either 12V DC or 24V DC, user-selectable
  • Individually fused outputs
  • Mains-on LED indication
  • Made in Britain with 5 year warranty

DA628: Steel-cased power splitter current distribution board for electronic locks

Designed to take power from a security power supply to feed to multiple locks. The PCB will distribute 12V DC or 24V DC to eight individually fused diode-protected outputs.

These can be individually selected to be powered continuously or switched, for example by a fire system. Monitoring change-over clean contacts are provided for PCB supply status and for enable trigger status. LED indicators are provided to show SUPPLY, ENABLE and individual-output status.

Ordering information

Technical information

Download Data sheet

Output

Fused outputsEight
Fused20x5mm 1A Quick-blow glass fuse
Voltage≈ Vin
CurrentMaximum 1A
Connection type2.5mm² PCB terminal block

Switching contacts

Contact configurationDouble pole change-over
VoltageMaximum 24V DC
CurrentMaximum 1A
Connection typePCB terminal block (2.5mm²)

Input

Voltage9 ≤ 24V
Power consumption< 20mA
Connection typePCB terminal block (2.5mm²)
Mains-on indicationLED indicator
Enabled indicationLED indicator

Environmental

Operating temperature -10°C to +40°C
Storage temperature -20°C to +50°C
Operating relative humidityMaximum 95% non-condensing
Ingress protection N/A

Dimensions:

Product

Width 117mm
Height 48mm
Depth 20mm
Weight < 1.8Kg

Ordering information

GTINPart codeDescription
DA628Lock-splitter distribution PCB board in a mild steel enclosure

Other models

GTINPart codeDescription
DA628PPlate-mounted lock-splitter distribution PCB board
DA628ULock-splitter distribution PCB board only

Available from all good distributors.
