DA665-8:

  • 230 x 145 x 40mm
  • 8x 500mA individually fused outputs
  • Replaceable 20x5mm glass fuses
  • Mild steel powder-coated enclosures
  • Includes a spares-bag mounting kit
  • 96V to 265V AC input

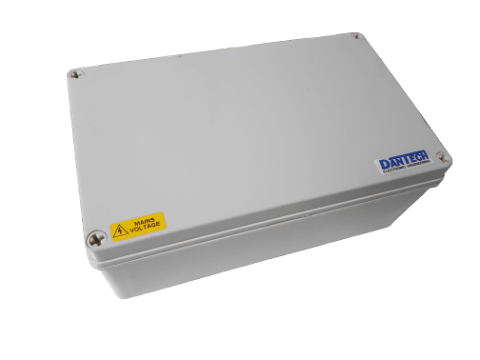

DA665-IP66-8:

  • 8x 500mA individually fused outputs
  • IP66 Rated weather-resistant enclosure
  • Includes a spares-bag mounting kit
  • 90V to 270V AC @ 47Hz to 63Hz

DA665-P-1:

  • 1x 4A single fused output
  • Mild steel mounting plate
  • Includes a spares-bag mounting kit
  • 90V to 270V AC @ 47Hz to 63Hz

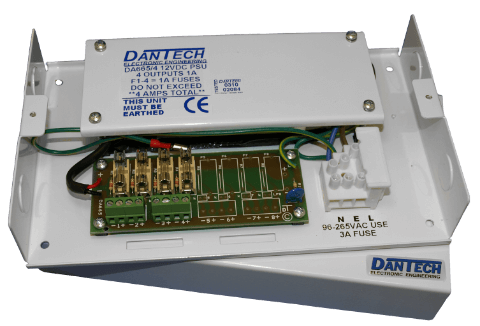

DA665-4:

  • 4x 1A individually fused outputs
  • Mild steel powder-coated enclosures
  • Includes a spares-bag mounting kit
  • 90V to 270V AC @ 47Hz to 63Hz

DA665-IP66-4:

  • 4x 1A individually fused outputs
  • IP66 Rated weather-resistant enclosure
  • Includes a spares-bag mounting kit
  • 90V to 270V AC @ 47Hz to 63Hz

DA665-P-4:

  • 4x 1A individually fused outputs
  • Mild steel mounting plate
  • Includes a spares-bag mounting kit
  • 90V to 270V AC @ 47Hz to 63Hz

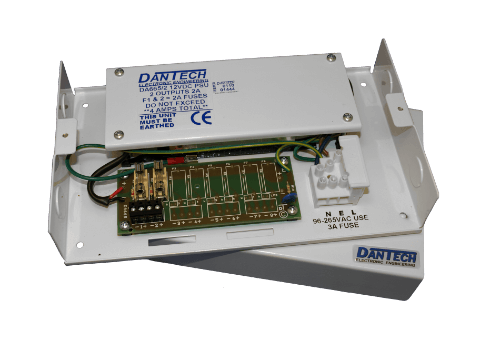

DA665-2:

  • 2x 2A individually fused outputs
  • Mild steel powder-coated enclosures
  • Includes a spares-bag mounting kit
  • 90V to 270V AC @ 47Hz to 63Hz

DA665-IP66-2:

  • 2x 2A individually fused outputs
  • IP66 Rated weather-resistant enclosure
  • Includes a spares-bag mounting kit
  • 90V to 270V AC @ 47Hz to 63Hz

DA665-P-2:

  • 2x 2A individually fused outputs
  • Mild steel mounting plate
  • Includes a spares-bag mounting kit
  • 90V to 270V AC @ 47Hz to 63Hz

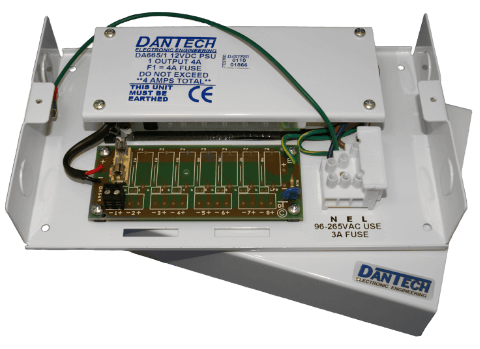

DA665-1:

  • 1x 4A single fused output
  • Mild steel powder-coated enclosures
  • Includes a spares-bag mounting kit
  • 90V to 270V AC @ 47Hz to 63Hz

DA665-IP66-1:

  • 1x 4A single fused output
  • IP66 Rated weather-resistant enclosure
  • Includes a spares-bag mounting kit
  • 90V to 270V AC @ 47Hz to 63Hz

DA665-P-8:

  • 8x 500mA individually fused outputs
  • Mild steel mounting plate
  • Includes a spares-bag mounting kit
  • 90V to 270V AC @ 47Hz to 63Hz

DA665: 12V DC switched-mode power supplies

These switched-mode power supplies can accept a wide range of mains voltage from as little as 90V to 270V with frequencies of 47 to 63Hz. These units will provide a regulated output of 12V 4A DC.

Manufactured and tested in Britain, this range of power supplies has a five-year warranty, allowing installers to fit and forget. It is ideal for where high reliability is required and where companies may have long service or maintenance contracts. These units are intended for use with CCTV cameras. However, they are multi-purpose and can be used in a range of security applications.

Up to eight individually fused outputs

The DA665 range of power supplies are available within mild steel enclosures, IP66 Weather-resistant or open-frame plate-mounted. The mild steel-cased output options include one, two, four or eight individually fused outputs.

90V to 270V AC @ 47Hz to 63Hz

Designed to operate on standard mains power voltages world-wide this unit can accept a wide range mains-input of between 90V to 270V AC @ 47Hz to 63Hz.

Ordering information

GTINPart codeDescription
5060501320101 DA665-1Mild steel 1 x 4A 12V DC Multi-purpose 4A power supply
5060501320118 DA665-2Mild steel 2 x 2A 12V DC Multi-purpose 4A power supply
5060501320125 DA665-4Mild steel 4 x 1A 12V DC Multi-purpose 4A power supply
5060501320132 DA665-8Mild steel 8 x 500mA 12V DC Multi-purpose 4A power supply
5060501320149 DA665-IP66-1IP66 Weather-resistant 1 x 4A 12V DC Multi-purpose 4A power supply
5060501320156 DA665-IP66-2IP66 Weather-resistant 2 x 2A 12V DC Multi-purpose 4A power supply
5060501320163 DA665-IP66-4IP66 Weather-resistant 4 x 1A 12V DC Multi-purpose 4A power supply
5060501320170 DA665-IP66-8IP66 Weather-resistant 8 x 500mA 12V DC Multi-purpose 4A power supply
DA665-P-1Open-frame 1 x 4A 12V DC Multi-purpose 4A power supply
DA665-P-2Open-frame 2 x 2A 12V DC Multi-purpose 4A power supply
DA665-P-4Open-frame 4 x 1A 12V DC Multi-purpose 4A power supply
DA665-P-8Open-frame 8 x 500mA 12V DC Multi-purpose 4A power supply

Available from all good distributors.
