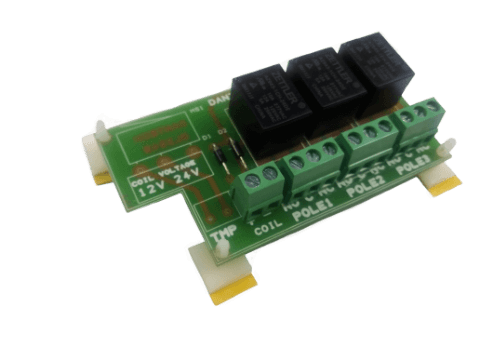

Access control Tri-relay module

  • Extend fire & access control loops
  • Easy installation
  • Mount in existing enclosures
  • Compatible with DA301 High-security junction box

DA699:
Mains power failure detector

  • Mains present indication
  • Fault indication (follows relay)
  • Alarm relay, SPST 30V DC 1A
  • Tamper switch
  • Supply voltage 12V DC

DA341:

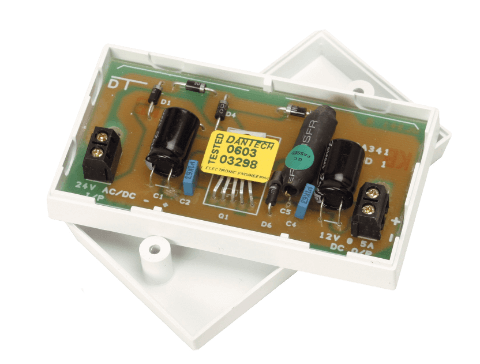

24V AC/DC to 12V DC converter

  • Input voltage 24V DC/AC
  • Output voltage 12V DC
  • Maximum load 350mA (500mA peak)
  • Made in Britain with 5 year warranty

DA628:
Lock-splitter distribution board

  • Add fire-control or remote switching to systems
  • Selectable input voltage (12V / 24V DC)
  • Individually fused outputs with LED indication

DA314:
Pre-wired resistor packs

  • Pack of 8 pre-wired EOL resistors
  • Wires 100mm
  • Made in Britain with 5 year warranty

This range of resistor packs are designed to significantly reduce installation time on-site for electrical engineers.

DA8WS:
8-Way current splitter

  • Convert one output into eight
  • PCB + 350mm fly leads
  • Includes self-adhesive mounting pillars
  • Made in Britain with 5 year warranty

A fused distribution board with individually 1A fused outputs, with terminal blocks. Used in CCTV or access control application where the installer needs to split the available current.

Up to 30V working; maximum of 8A.

FIXING2DIN068X048:
Dual Pack of DIN Clips

  • 2-Pack of DIN Rail-mounting clips
  • Dimension: 68 x 48 x 8mm
  • Tool free clip on and off
  • Fiberglass reinforced nylon 66 (PA66+GF30%)

DA290:
12V battery automatic isolator

  • Low 12V battery isolator (9V disconnect)
  • Automatically disconnect and re-connect depleted batteries
  • Protect against deep cycle damage
  • Current consumption <50mA
  • Fault indication, follows relay
  • Made in Britain with 5 year warranty

DA4WS:
4-Way current splitter

  • Convert one output into four
  • PCB + 350mm fly leads
  • Includes self-adhesive mounting pillars
  • Made in Britain with 5 year warranty

A fused distribution board with individually 1A fused outputs, with terminal blocks. Used in CCTV or access control application where the installer needs to split the available current.

Up to 30V working; maximum of 8A.

DA291:

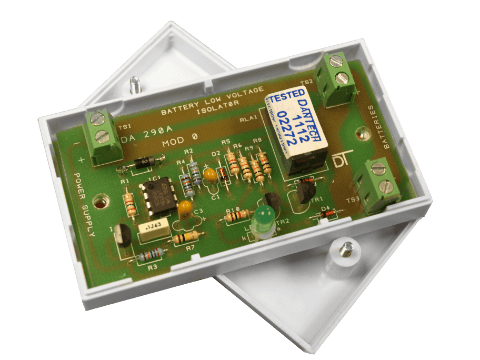

12V battery automatic isolator

  • Low 12V battery isolator (11V disconnect)
  • Automatically disconnect and re-connect depleted batteries
  • Protect against deep cycle damage
  • Current consumption <50mA
  • Fault indication, follows relay
  • Made in Britain with 5 year warranty

DA292:
24V battery automatic isolator

  • Low 24V battery isolator (22V disconnect)
  • Automatically disconnect and re-connect depleted batteries
  • Protect against deep cycle damage
  • Current consumption <50mA
  • Fault indication, follows relay
  • Made in Britain with 5 year warranty

DA475:
Dual PCB Mounting caddy

Stack two access control PCBs on one mounting position.

  • Fit two controllers to one set of mounts
  • RM4 Controllers
  • Paxton Net2
  • Lenel Access control PCBs

IEC Power lead

  • Moulded UK Mains plug
  • Moulded IEC C14 Connector
  • Suitable for IEC C13 socket
  • Ideal for IT & ICT enviroments

DA805-IP66:
24V AC to 12V 4A DC converter

  • Input voltage 24V DC
  • Output 12V 4A DC
  • IP66 Enclosure
  • Made in Britain with 5 year warranty

8 Output splitter PCB module for use with DADPC units

  • Use with or without stand-by batteries
  • Constant and remote control outputs
  • Use with or without restart function

Featuring SPCO relay monitoring contacts, output controls and battery support.
