DA4WS: Individually fused output PCB distribution board 4-way current splitter

  • Four individually fused outputs
  • PCB + 350mm fly lead
  • Made in Britain

DA4WS: Individually fused output PCB distribution board 4-way current splitter

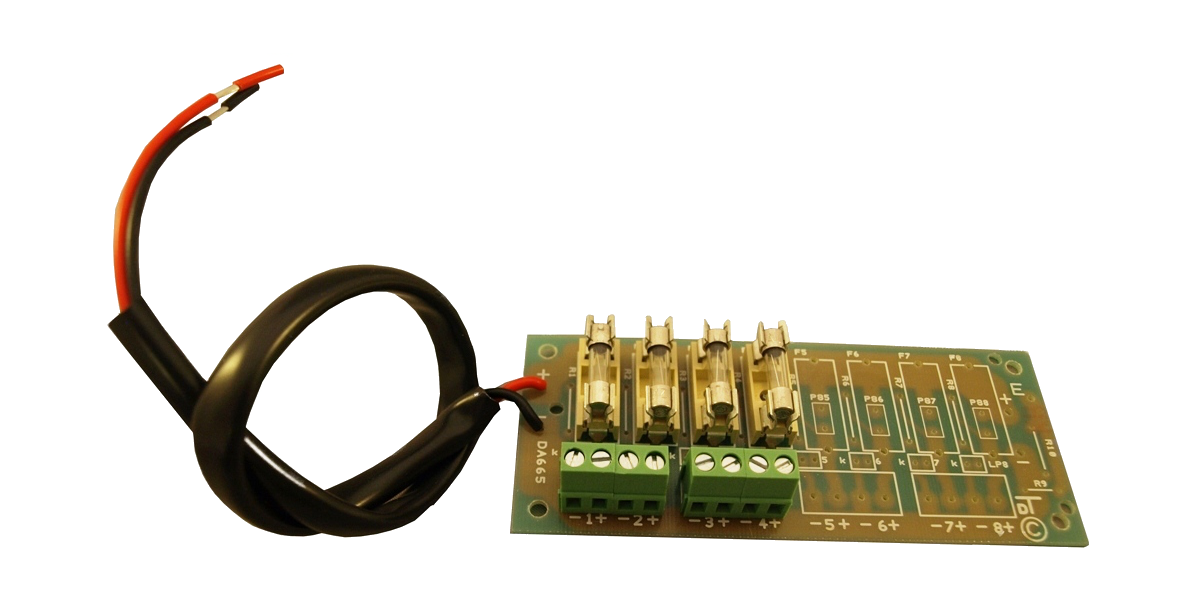

Convert a single output to four outputs with this four-way fused distribution board. These boards have 4 individually fused outputs, with terminal blocks. Used in CCTV or access control application where the installer needs to split the available current.

Can be used in either 12V DC or 24V DC working; maximum of 8A. Variations of this product are available on request, please contact us with your requirements to find out more.

Ordering information

PCB + 350mm fly lead

Installing this distribution board is easy with the pre-installed 350mm red & black wires.

Individually fused outputs

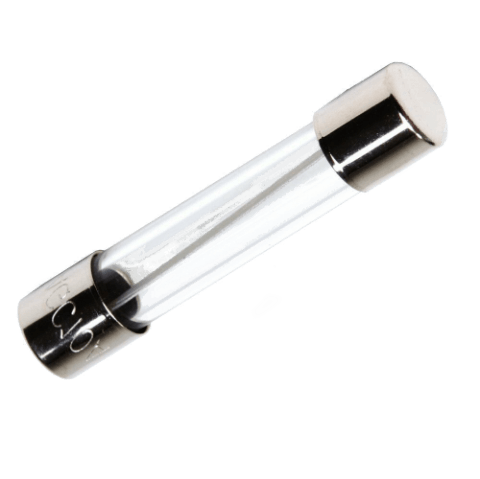

Each output is independently fuse protected, the removable front plate gives easy access to the output fuses. The fused outputs can accommodate any 20 x 5mm fuses. As standard, these units are fitted with Quick-blow Glass Fuses.

Made in Britain

We’re proud to say that this product is made with pride right here in the UK, from design to the labels carefully fitted during every unit's hand-testing by one of our engineers.

Technical information

Download Data sheet

Output
Fused outputsFour
Fused20x5mm 1A Quick-blow glass fuse
VoltageMaximum 24V
CurrentMaximum 1A
Connection type2.5mm² PCB terminal block

Input
VoltageMaximum 24V
Connection typeFly lead 350mm (Red + / Black - )

Environmental

Operating temperature -10°C to +40°C
Storage temperature -20°C to +50°C
Operating relative humidityMaximum 95% non-condensing
Ingress protection N/A

Dimensions:

Product

Width117mm
Height48mm
Depth20mm
Weight< 0.8Kg

Shipping packaging

Width185mm
Height115mm
Depth38mm
Weight *including product< 0.9Kg
Packaging materialCardboard

Ordering information

GTINPart codeDescription
5060501320750 DA4WSFour way output splitter with individually fused outputs

Other models

GTINPart codeDescription
5060501320477 DA8WSEight way output splitter with individually fused outputs
