DA628:
Steel-cased power splitter current distribution board for electronic locks

  • Mild steel enclosure
  • Add fire-control or remote switching to systems
  • Selectable input voltage (12V / 24V DC)
  • Individually fused outputs with LED indication

Individually select outputs to be powered continuously or switched, for example by a fire system. Monitoring contacts are provided for PCB supply status and for enable trigger status.

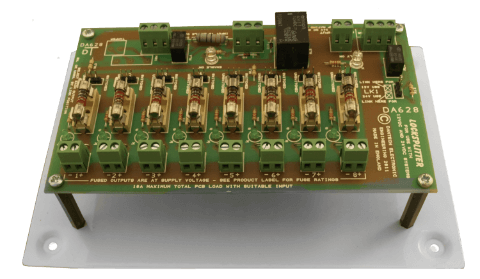

DA628P:
Plate-mounted power splitter current distribution board for electronic locks

  • Mounted on mild steel plate
  • Add fire-control or remote switching to systems
  • Selectable input voltage (12V / 24V DC)
  • Individually fused outputs with LED indication

Individually select outputs to be powered continuously or switched, for example by a fire system. Monitoring contacts are provided for PCB supply status and for enable trigger status.

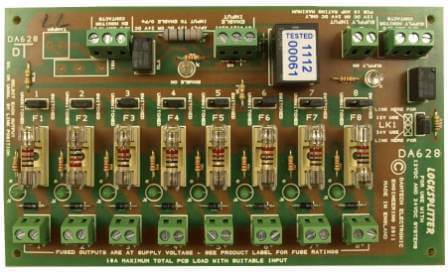

DA628:
Power splitter current distribution board PCB for electronic locks

  • Add fire-control or remote switching to systems
  • Selectable input voltage (12V / 24V DC)
  • Individually fused outputs with LED indication

Individually select outputs to be powered continuously or switched, for example by a fire system. Monitoring contacts are provided for PCB supply status and for enable trigger status.

DA628: Lock-splitter distribution board

Designed to take power from a security power supply to feed to multiple locks. The PCB will distribute 12V DC or 24V DC to eight individually fused diode-protected outputs.

These can be individually selected to be powered continuously or switched, for example by a fire system. Monitoring change-over clean contacts are provided for PCB supply status and for enable trigger status. LED indicators are provided to show SUPPLY, ENABLE and individual-output status.

Ordering information

Ordering information

GTINPart codeDescription
DA628Electronic lock power splitter PCB board in a mild steel enclosure
DA628PPlate-mounted electronic lock power splitter PCB board
DA628UElectronic lock power splitter PCB board only

Available from all good distributors.
