Access control Tri-relay module

  • Extend fire & access control loops
  • Easy installation
  • Mount in existing enclosures
  • Compatible with DA301 High-security junction box

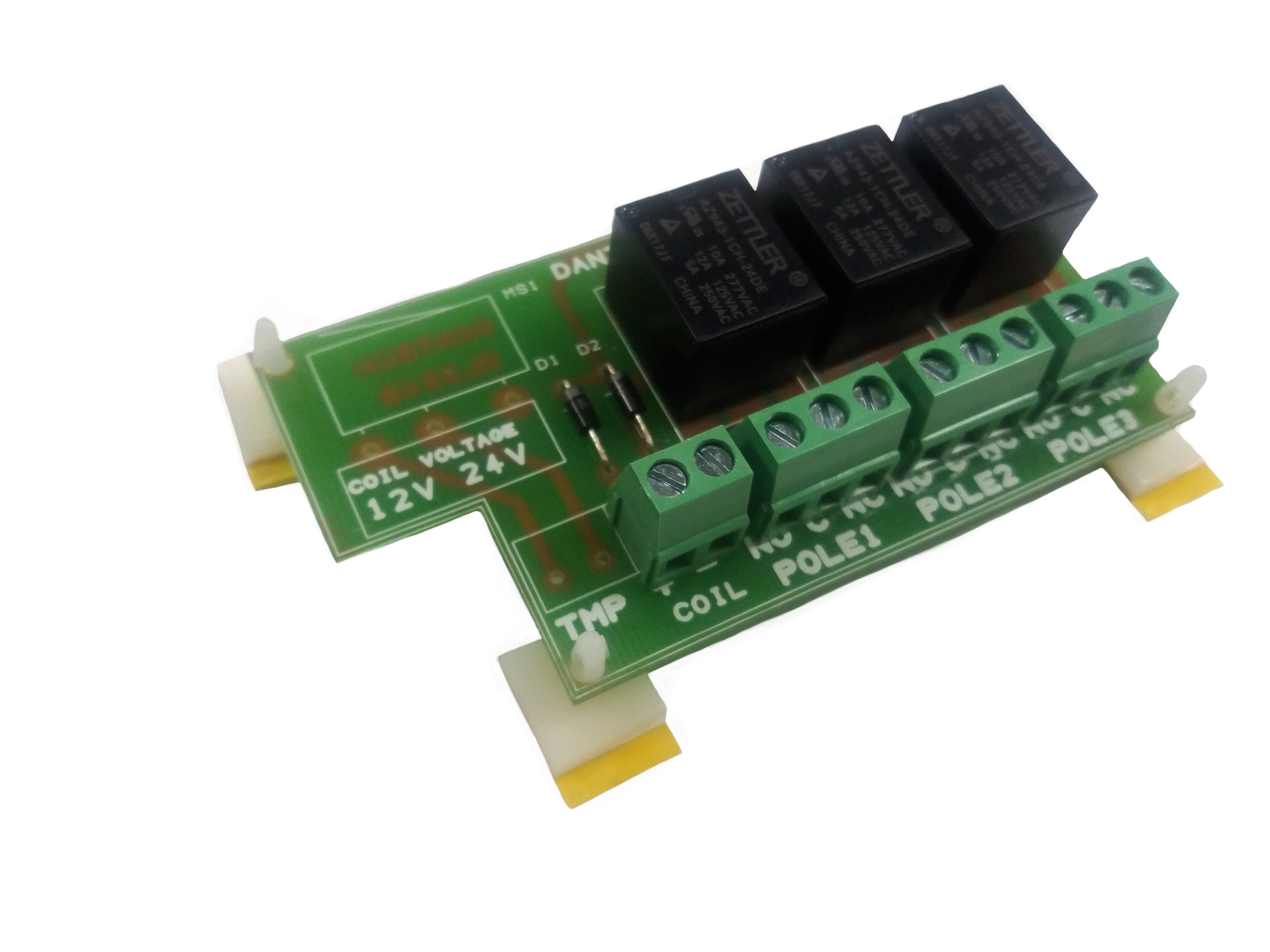

DA254: Access control Tri-relay module

Designed for extending critical control circuit loops for access control and fire systems, the Tri-relay unit is ideal for when installing new equipment or extending systems.

In the event of a loss of power within a circuit connected to Coil terminals, such as the triggering of an alarm or fire system, the three control relays will change-over.

The DA254 is available as a 12V DC or 24V DC device, with three SPCO relays with N/O and N/C contacts rated to 24V 5A DC, please refer to ordering information for available models.

Technical information

Download Data sheet

Switching contacts

Relay channelsThree
Contact configurationSingle pole change-over (per channel)
VoltageMaximum 24V
CurrentMaximum 5A DC resistive load
Connection typePCB terminal block (2mm²)

Input

DA254-12V DA254-24V
Voltage 12V DC 24V DC
Power consumption < 80mA < 80mA
Connection type PCB terminal block (2.5mm²) PCB terminal block (2.5mm²)

Environmental

Operating temperature -10°C to +40°C
Storage temperature -20°C to +50°C
Operating relative humidityMaximum 95% non-condensing

Dimensions:

Product

Width 100mm
Height 50mm
Depth 20mm
Weight < 0.1Kg
Enclosure material N/a
Finish PCB Only

Ordering information

GTINPart codeDescription
DA254-12V12VDC Access control Tri-relay module
DA254-24V24VDC Access control Tri-relay module

Available from all good distributors.

You may also be interested in...

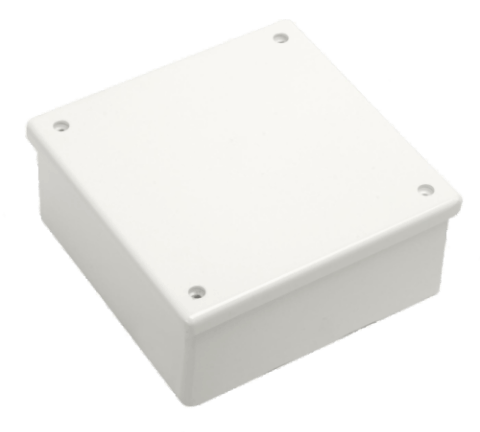

DA301: 8-Way High-security junction box
