DA123-F: Flush mounting setting switch push-button

Switching rating 30V DC 100mA
LED indication versions available
Flush or Surface mount versions available
Tamper-loop versions available

DA123-F: Flush mounting setting switch push-button

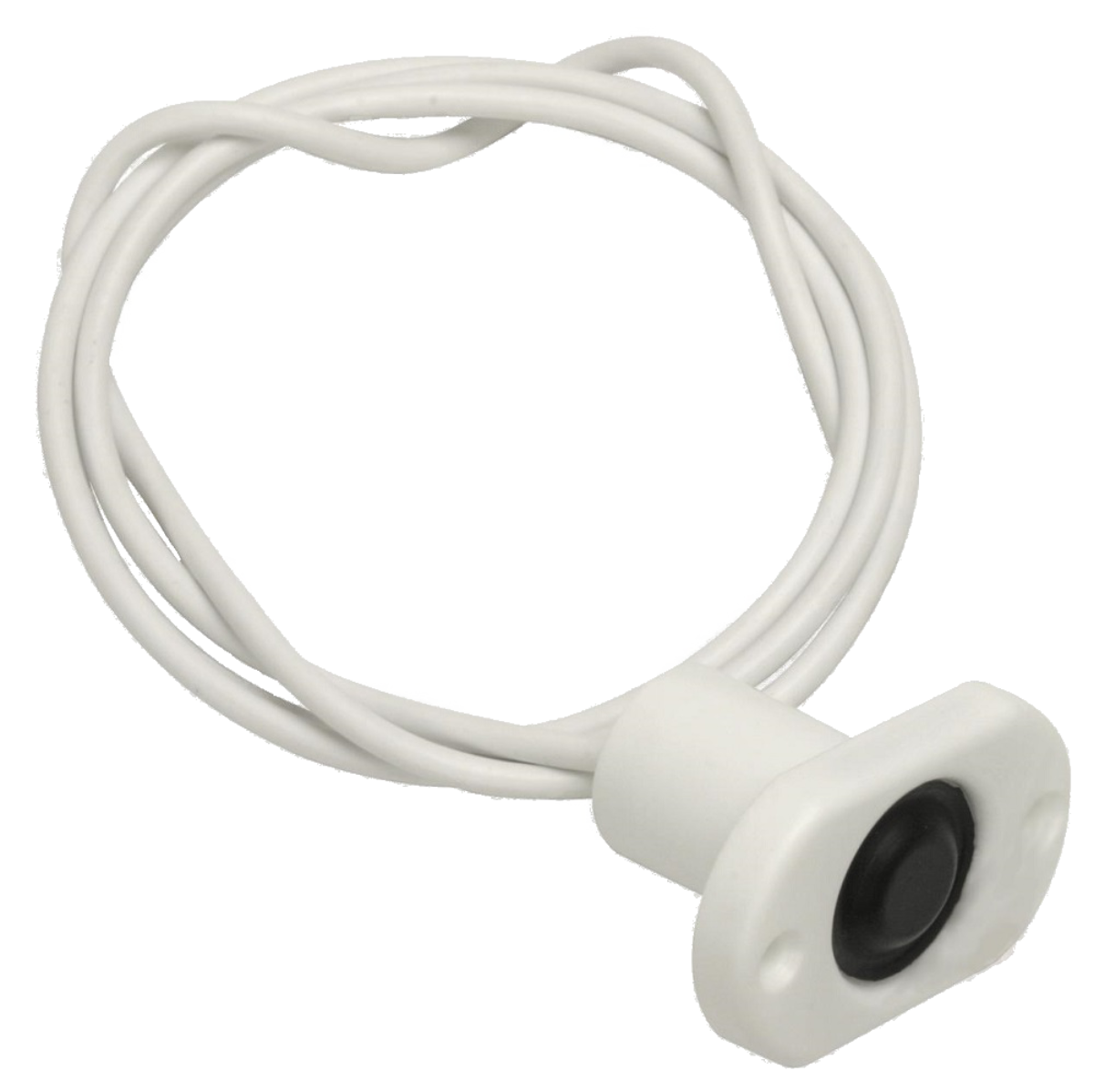

These are a range of highly water-resistant final exit setting buttons, which use a magnetically-operated, sealed, dry-reed switch. The push-button diaphragm is a flexible moulding, and there is no metal spring to corrode or break. The push-button has a momentary operation and is available as flush or surface-mounting.

Connections are via an integral one-meter-long four-core, white fly lead. The flush mount version fits into a 30mm deep hole that is 19mm in diameter, supplied with a neoprene gasket and hardened steel zinc-plated fixing screws.

Available either "normally open" going closed or "closed-circuit" going open.

Ordering information

Technical information

Download Data sheet

Switching contacts


Contact configuration	SPST
Voltage	Maximum 30V
Current	Maximum 100mA
Connection type	900mm Fly-lead

Environmental

Operating temperature	-10°C to +40°C
Storage temperature	-20°C to +50°C
Operating relative humidity	Maximum 95% non-condensing
Ingress protection	N/A

Dimensions:

Product

Width	28mm
Height	45mm
Depth	25mm (Not including cable exit)
Weight	< 0.1Kg
Enclosure material	Plastic

Shipping packaging

Width	130mm
Height	200mm
Depth	30mm
Weight *including product	< 0.2Kg
Packaging material	5" x 7½" Re-usable plastic bag

Ordering information

GTIN	Part code	Description
	DA123-F	SPST Push button N/O White flush mount normally open with tamper-loop
	DA123-F-CC	SPST Push button N/C White flush mount normally-closed with tamper-loop
	DA123-F-BLK	SPST Push button N/O Black flush mount normally open with tamper-loop
	DA123-F-CC-BLK	SPST Push button N/C Black flush mount normally-closed with tamper-loop

Other models

GTIN	Part code	Description
	DA123-S	SPST Push button N/O White surface-mount normally open with tamper-loop
	DA123-S-CC	SPST Push button N/C White surface-mount normally-closed with tamper-loop
	DA123-SLED	SPST Push button N/O White surface-mount normally open with LED
	DA123-SLED-CC	SPST Push button N/C White surface-mount normally-closed with LED
	DA123-FLED	SPST Push button N/O White flush mount normally open with LED
	DA123-FLED-CC	SPST Push button N/C White flush mount normally-closed with LED
	DA123-SBZR	SPST Push button N/O White surface-mount normally open with buzzer
	DA123-SBZR-CC	SPST Push button N/C White surface-mount normally-closed with buzzer
	DA123-SLEDBZR	SPST Push button N/O White surface-mount normally open with LED & buzzer
	DA123-SLEDBZR-CC	SPST Push button N/C White surface-mount normally-closed with LED & buzzer
	DA123-S-BLK	SPST Push button N/O Black surface-mount normally open with tamper-loop
	DA123-S-CC-BLK	SPST Push button N/C Black surface-mount normally-closed with tamper-loop
	DA123-SLED-BLK	SPST Push button N/O Black surface-mount normally open with LED
	DA123-SLED-CC-BLK	SPST Push button N/C Black surface-mount normally-closed with LED
	DA123-FLED-BLK	SPST Push button N/O Black flush mount normally open with LED
	DA123-FLED-CC-BLK	SPST Push button N/C Black flush mount normally-closed with LED
	DA123-SBZR-BLK	SPST Push button N/O Black surface-mount normally open with buzzer
	DA123-SBZR-CC-BLK	SPST Push button N/C Black surface-mount normally-closed with buzzer
	DA123-SLEDBZR-BLK	SPST Push button N/O Black surface-mount normally open with LED & buzzer
	DA123-SLEDBZR-CC-BLK	SPST Push button N/O Black surface-mount normally-closed with LED & buzzer
