DPS1: 1.5A 12V DC output

  • 12V 1.5A DC fused output
  • Integrated UPS battery back-up function
  • Mild steel powder-coated enclosures
  • Input 230V AC @ 50Hz (+/- 10%)
  • Made in Britain with 5 year warranty

DA449:
12V 8A DC or 24V 4A DC

  • Engineer selectable output
  • 8A 12V DC (13.7V) or 24V 4A DC (27.4V)
  • House and charge VRLA batteries for back-up
  • Mains fail signalling
  • Independent relay
  • Input 230V AC @ 50Hz (+/- 10%)

DA448:
12V 5A DC or 24V 2.5A DC

  • Engineer selectable output
  • 5A 12V DC (13.7V) or 24V 2.5A DC (27.4V)
  • House and charge VRLA batteries for back-up
  • Mains fail signalling
  • Independent relay
  • Input 230V AC @ 50Hz (+/- 10%)

DA448-XSM:
12V 5A DC or 24V 2.5A DC

  • Large 405x400x120mm enclosure
  • Engineer selectable output
  • 5A 12V DC (13.7V) or 24V 2.5A DC (27.4V)
  • House and charge VRLA batteries for back-up
  • Mains fail signalling
  • Independent relay

DA447:
12V 3A DC or 24V 1.5A DC

  • Engineer selectable output
  • 3A 12V DC (13.7V) or 24V 1.5A DC (27.4V)
  • House and charge VRLA batteries for back-up
  • Mains fail signalling
  • Independent relay
  • Input 230V AC @ 50Hz (+/- 10%)

DA447-XSM:
12V 3A DC or 24V 1.5A DC

  • Large 405x400x120mm enclosure
  • Engineer selectable output
  • 3A 12V DC (13.7V) or 24V 1.5A DC (27.4V)
  • House and charge VRLA batteries for back-up
  • Mains fail signalling
  • Independent relay

DA446:
12V 1.5A DC or 24V 750mA DC

  • Engineer selectable output
  • 1.5A 12V DC (13.7V) or 24V 750mA DC (27.4V)
  • House and charge VRLA batteries for back-up
  • Mains fail signalling
  • Independent relay
  • Input 230V AC @ 50Hz (+/- 10%)

DA371: 1.5A 12V DC output

  • 1.5A 12V DC fused output
  • Integrated UPS battery back-up function
  • Mains failure & Low-battery signalling
  • Mild steel powder-coated enclosures
  • Includes a spares-bag mounting kit
  • Input 230V AC @ 50Hz (+/- 10%)

DA391: 4A 12V DC output

  • 1x 4A individually fused outputs
  • Integrated UPS battery back-up function
  • Mild steel powder-coated enclosures
  • Input 230V AC @ 50Hz (+/- 10%)

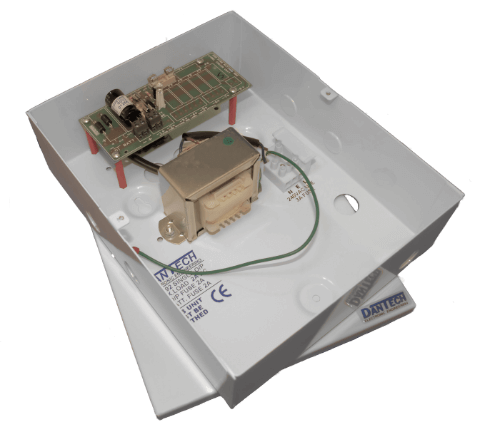

DA392: 2x 2A 12V DC outputs

  • 2x 2A individually fused outputs
  • Integrated UPS battery back-up function
  • Mild steel powder-coated enclosures
  • Input 230V AC @ 50Hz (+/- 10%)

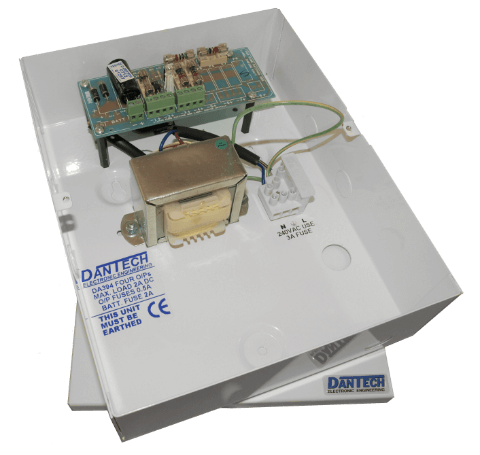

DA394: 4x 500mA 12V DC outputs

  • 4x 500mA individually fused outputs
  • Integrated UPS battery back-up function
  • Mild steel powder-coated enclosures
  • Input 230V AC @ 50Hz (+/- 10%)

DA395: 2x 1A 12V DC outputs

  • 2x 1A individually fused outputs
  • Integrated UPS battery back-up function
  • Mild steel powder-coated enclosures
  • Input 230V AC @ 50Hz (+/- 10%)

DA398: 2x 2A 12V DC outputs

  • 2x 2A individually fused outputs
  • Integrated UPS battery back-up function
  • Mild steel powder-coated enclosures
  • Input 230V AC @ 50Hz (+/- 10%)

DA396: 4x 1A 12V DC outputs

  • 4x 1A individually fused outputs
  • Integrated UPS battery back-up function
  • Mild steel powder-coated enclosures
  • Input 230V AC @ 50Hz (+/- 10%)

DA397: 8x 12V 500mA DC outputs

  • 8 x 500mA 12V DC individually fused outputs
  • Integrated UPS battery back-up function
  • Mild steel powder-coated enclosures
  • Input 230V AC @ 50Hz (+/- 10%)

DA399: 4x 750mA 12V DC with monitoring and VRLA battery back-up support

  • Four 750mA 12V DC fused outputs
  • Mains power failure signalling relay contacts
  • Integrated UPS battery back-up function
  • Low UPS battery signalling relay contacts
  • Input 230V AC @ 50Hz (+/- 10%)

Steel-cased 3A 12V DC power supply with 12Ah battery support

  • 3A 12V DC fused outputs
  • Integrated UPS battery back-up function
  • Input 230V AC @ 50Hz (+/- 10%)

DA486: 2A 12V DC PSU with integrated UPS function & monitoring

  • Input 230V AC @ 50Hz (+/- 10%)
  • Mains fail signalling
  • Battery low-voltage disconnect
  • House and charge a VRLA battery up to 7Ah capacity

DA487: 3A 12V DC PSU with integrated UPS function & monitoring

  • Input 230V AC @ 50Hz (+/- 10%)
  • Mains fail signalling
  • Battery low-voltage disconnect
  • House and charge a VRLA battery up to 7Ah capacity

DA488: 4A 12V DC PSU with integrated UPS function & monitoring

  • Input 230V AC @ 50Hz (+/- 10%)
  • Mains fail signalling
  • Battery low-voltage disconnect
  • House and charge a VRLA battery up to 7Ah capacity

DA698: 4A 12V DC PSU with integrated UPS function & monitoring

  • Input 230V AC @ 50Hz (+/- 10%)
  • Mains fail signalling
  • Battery low-voltage disconnect
  • House and charge a VRLA battery up to 7Ah capacity

DA665: 12V 4A DC

  • Up to eight individually fused outputs
  • Mild steel powder-coated enclosures
  • Input 230V AC @ 50Hz (+/- 10%)

DA667: 12V DC 8A

  • Up to sixteen 12V DC individually fused outputs
  • Mild steel powder-coated enclosures
  • Input 230V AC @ 50Hz (+/- 10%)

DA668: 24V DC 2A

  • Up to eight 24V DC individually fused outputs
  • Mild steel powder-coated enclosures
  • Input 230V AC @ 50Hz (+/- 10%)

DA669: 24V DC 4A

  • Up to sixteen 24V DC individually fused outputs
  • Mild steel powder-coated enclosures
  • Input 230V AC @ 50Hz (+/- 10%)
