Mild steel 8x 24V 250mA DC Multi-purpose 2A power supply

  • Eight 24V DC 250mA individually fused outputs
  • Mild steel powder-coated enclosures
  • Includes a spares-bag mounting kit
  • 90V to 270V AC @ 47Hz to 63Hz

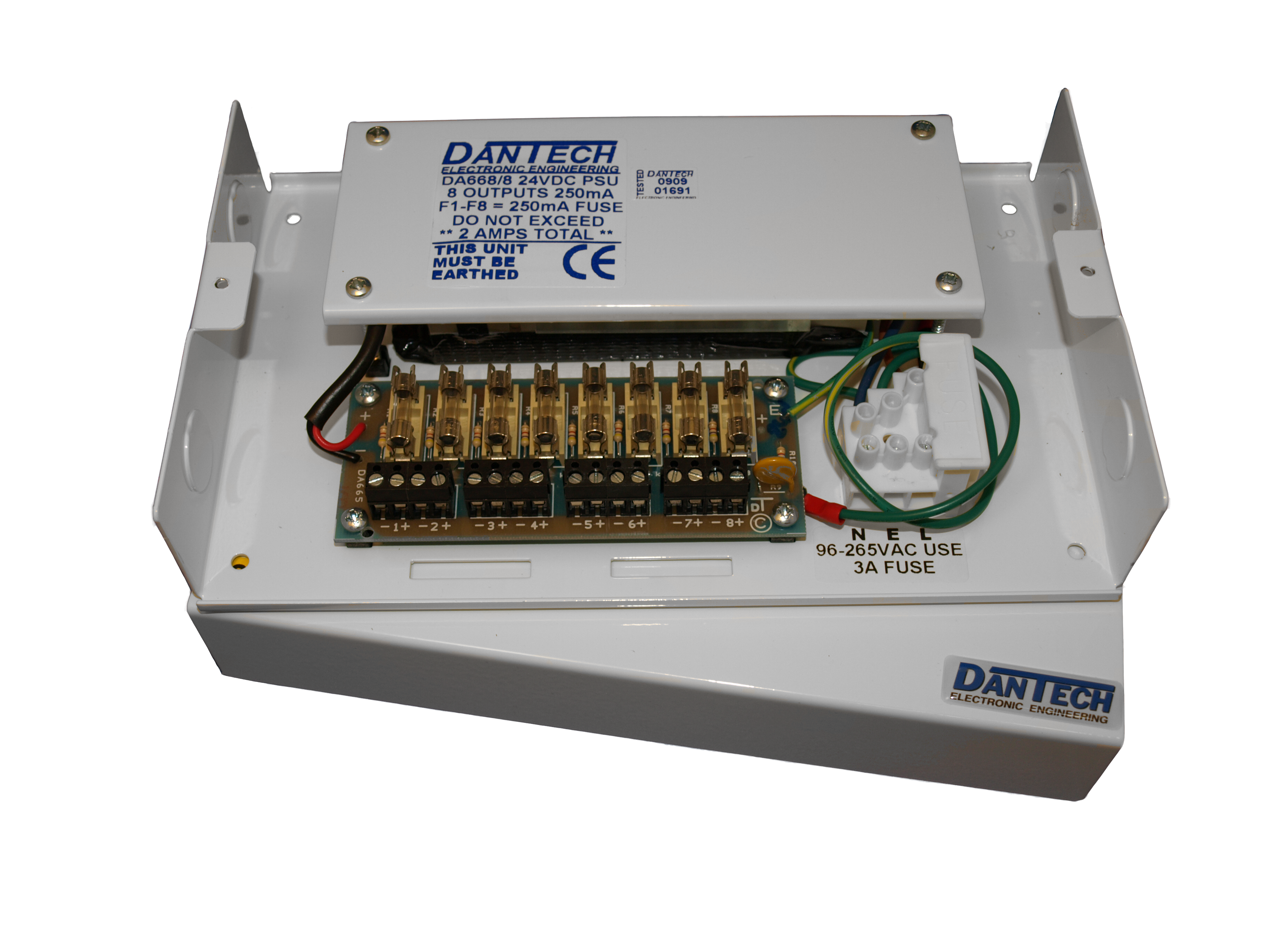

DA668-8: Mild steel 8x 24V 250mA DC Multi-purpose 2A power supply

These switched-mode power supplies can accept a wide range of mains voltage from as little as 90V to 270V with frequencies of 47 to 63Hz. These units will provide a regulated output of 24V DC up to 1A total via eight individually fused 250mA outputs.

Manufactured and tested in Britain, this range of power supplies has a five-year warranty, allowing installers to fit and forget. It is ideal for where high reliability is required and where companies may have long service or maintenance contracts. These units are intended for use with CCTV cameras. However, they are multi-purpose and can be used in a range of security applications.

Up to eight individually fused outputs

The DA668 range of power supplies are available with one, two, four or eight individually fused outputs.

Mild steel powder-coated enclosures

Precision-made from mild steel and powder-coated white for an easy-clean, durable finish, this enclosure is ideal for wall mounting. The enclosure includes 'knock-outs' for gland entries.

Includes a spares-bag mounting kit

Each unit includes a spares-bag for the installation engineer. This kit contains useful items, such as cable glands, wall plugs and fixing screws.

90V to 270V AC @ 47Hz to 63Hz

Designed to operate on standard mains power voltages world-wide this unit can accept a wide range mains-input of between 90V to 270V AC @ 47Hz to 63Hz.

Ordering information

Technical information

Download Data sheet

Ordering information

GTINPart codeDescription
DA668-8Mild steel 8x 24V 250mA DC Multi-purpose 2A power supply

Other models

GTINPart codeDescription
DA668-1Mild steel 24V 2A DC Multi-purpose power supply
DA668-2Mild steel 2x 24V 1A DC Multi-purpose 2A power supply
DA668-4Mild steel 4x 24V 500mA DC Multi-purpose 2A power supply
DA668-IP66-1IP66 Weather-resistant 24V 2A DC Multi-purpose power supply
DA668-IP66-2IP66 Weather-resistant 2x 24V 1A DC Multi-purpose 2A power supply
DA668-IP66-4IP66 Weather-resistant 4x 24V 500mA Multi-purpose 2A power supply
DA668-IP66-8IP66 Weather-resistant 8x 24V 250mA DC Multi-purpose 2A power supply
DA668-P-1Open-frame 24V 2A DC Multi-purpose power supply
DA668-P-2Open-frame 2x 24V 1A DC Multi-purpose 2A power supply
DA668-P-4Open-frame 4x 24V 500mA DC Multi-purpose 2A power supply
DA668-P-8Open-frame 8x 24V 250mA DC Multi-purpose 2A power supply
