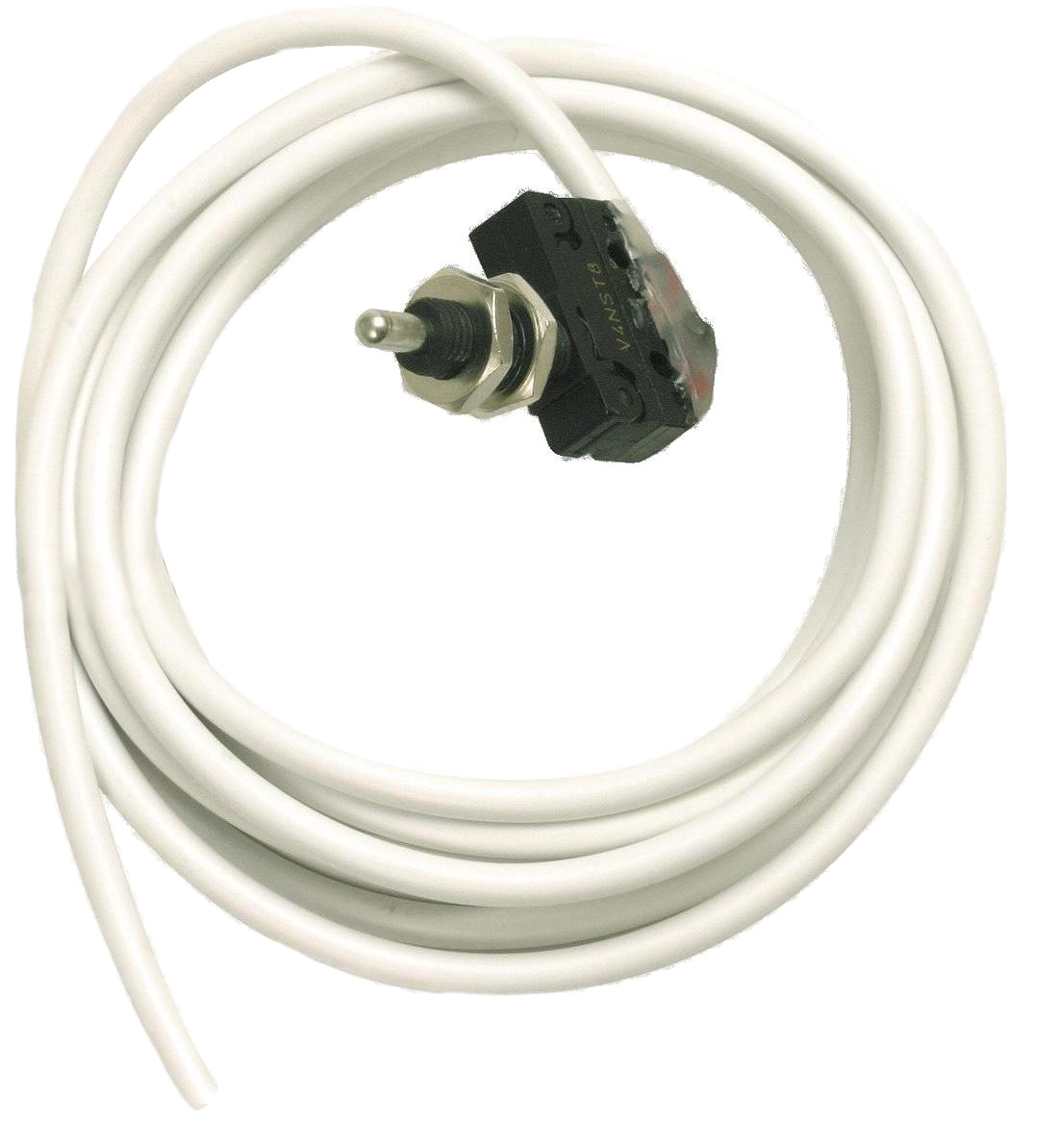

Pre-wired SPST micro-switch for monitoring mortice locks

  • Ideal for monitoring if mortice locks are engaged
  • Supplied with 4 core cable
  • Tamper-loop
  • Made in Britain with 5 year warranty

DA602: Pre-wired SPST micro-switch for monitoring mortice locks

The DA602 is a micro switch for a door lock keep; this unit is designed to be retro fitted to an existing lock keep. The single-pole single throw contact is actuated when the lock bolt is thrown.

Wired with a tamper-loop, this switch can be integrated into new or existing alarm systems to indicate if the wire has been cut or disconnected.

Ordering information

Technical information

Download Data sheet

Switching contacts

Contact configurationSingle pole single throw
VoltageMaximum 30V
CurrentMaximum 1A
Connection type900mm fly-lead

Environmental

Operating temperature -10°C to +40°C
Storage temperature -20°C to +50°C
Operating relative humidityMaximum 95% non-condensing
Ingress protection N/A

Dimensions:

Product

Width7mm
Height25mm
Depth20mm
Weight< 0.1Kg

Ordering information

GTINPart codeDescription
DA602Pre-wired SPST micro-switch

Available from all good distributors.
