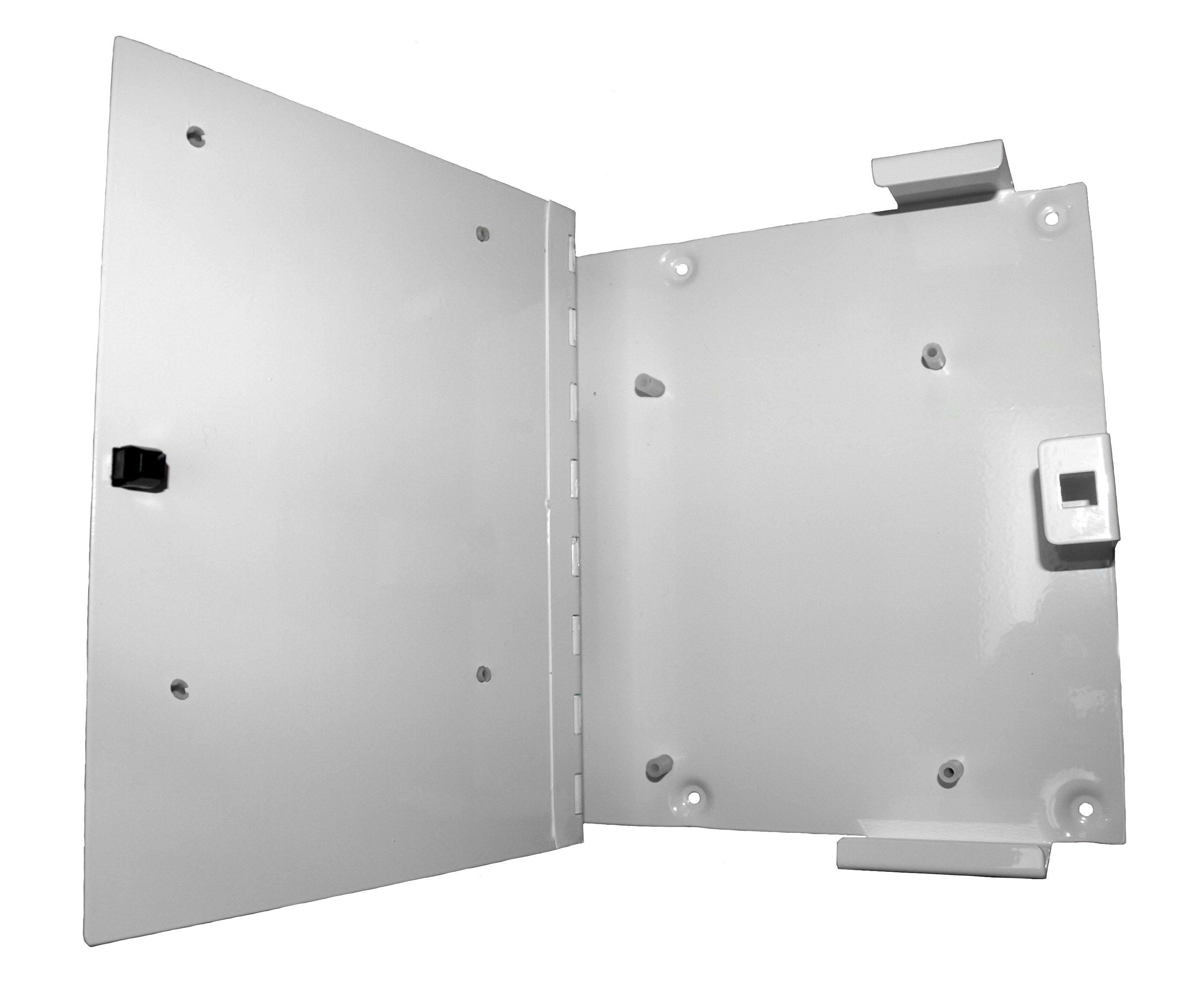

Dual PCB Mounting caddy for Lenel PCBs

  • Fit two controllers to one set of mounts
  • Push in pillars for ease of installation
  • Dzus lid fastener for easy access
  • Cable management positions
  • Designed for easy access to PCB controllers

DA475-LEN: Dual PCB Mounting caddy for Lenel PCBs

Our range of access control PCB caddies allow two controllers to be installed in one mounting position. Ideal for where space is at a premium or simply to install additional controllers within an existing system.

About lenel Controllers and modules

Lenel has series of controller offerings. Each series has unique capabilities, but consists of similar components: one or more Intelligent System Controllers as well as specific Reader Interface Modules, Input Modules, and Output Modules. Each controller in each series has a specific maximum number of modules that the controller can support, so the controller can be tailored to the needs of each site.

More information is available here.

These can be fitted within our ranges of access control power supply solutions.

Ordering information

Technical information

Download Data sheet

Environmental

Operating temperature -10°C to +60°C
Storage temperature -20°C to +70°C
Operating relative humidityMaximum 95% non-condensing
Ingress protection N/A

Dimensions:

Product

Width190mm
Height235mm
Depth60mm
Weight< 0.9Kg

Other

Material 1.2mm Mild steel
Finish Powder coated RAL9016

Ordering information

GTINPart codeDescription
DA475-LENPCB Stacking caddy for Lenel

Other models

GTINPart codeDescription
DA475-RM4PCB Stacking caddy for RM4
DA475-NET2PCB Stacking caddy for Net2

Available from all good distributors.
