Contacted door lock keep for mortice lock bolt status monitoring

  • Brushed stainless steel faceplate
  • Supply voltage 12V DC
  • Supplied with 1m, 3 core cable

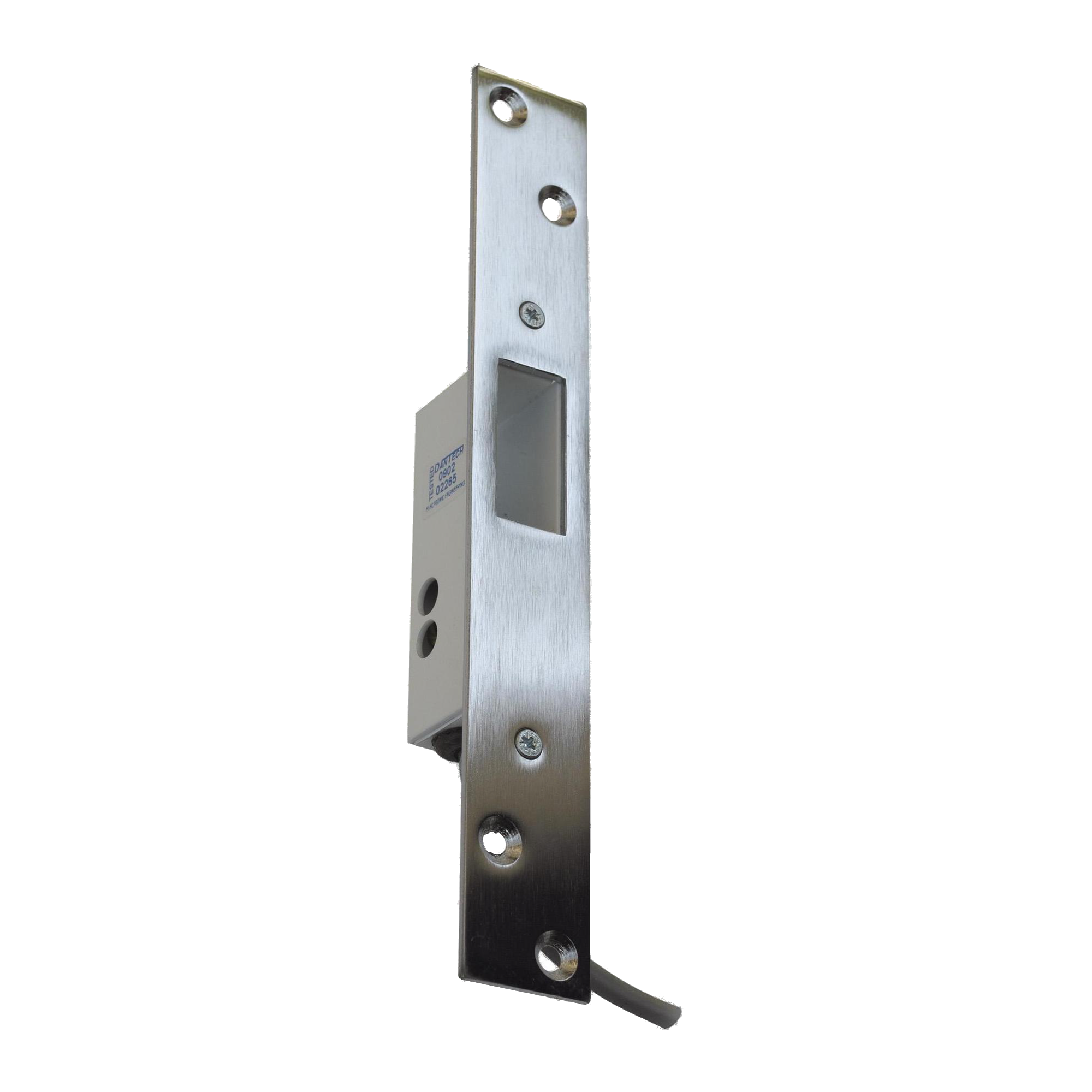

DA223: Contacted door lock keep

The DA223 is a door lock keep; this unit replaces an existing lock keep. There is a single-pole change-over (SPCO) contact that is actuated when the lock bolt is thrown. Typical uses for these units are for final setting of an intruder alarm system or for monitoring whether perimeter doors are locked.

Ordering information

Technical information

Download Data sheet

Switching contact

Contact configurationSPST, Single Pole Single Throw
VoltageMaximum 30V
CurrentMaximum 500mA
Connection typefly-lead (2 meters)

Environmental

Operating temperature -10°C to +40°C
Storage temperature -20°C to +50°C
Operating relative humidityMaximum 95% non-condensing
Ingress protection N/A

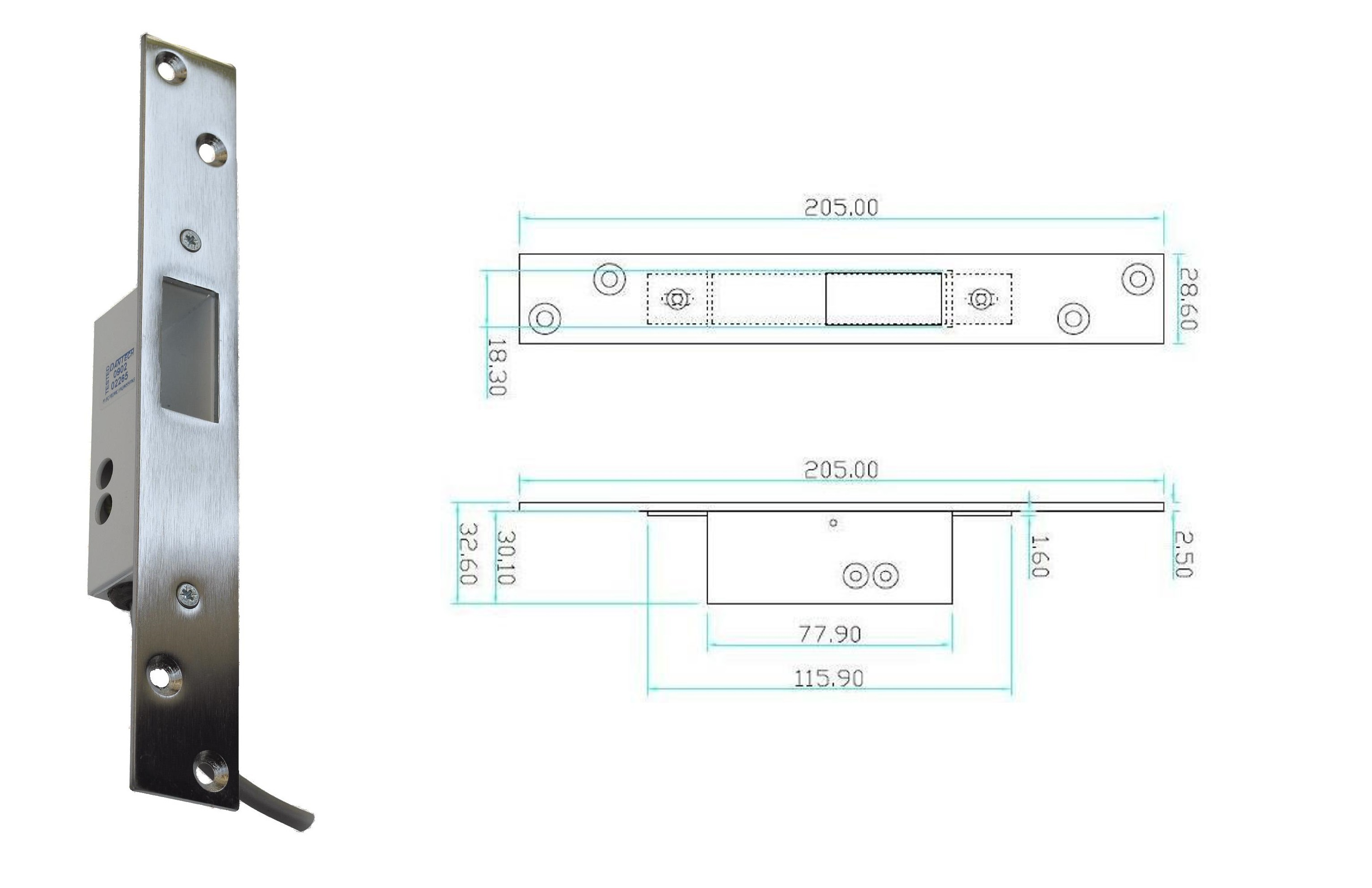

Dimensions:

Product

Width29mm
Height205mm
Depth33mm
Weight< 0.4Kg
Enclosure materialFace plate: Stainless steel
Rear: Mild steel
FinishFace plate: Brushed Stainless steel
Rear: Zintec-coated mild steel

Ordering information

GTINPart codeDescription
DA223Contacted door lock keep

Available from all good distributors.
