DA125: Expanding foam detector

  • LED indication
  • Switch rating 30V DC 100mA
  • 2 years warranty

DA125: Expanding foam detector

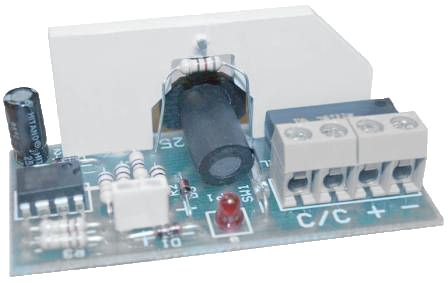

This small PCB unit is for detecting the use of expanding foam into equipment such as sounders, bells or other security devices.

Powered by 12V DC this detector has closed contacts, which will open when expanding foam pushes the hinged mounted magnet away from the PCB affixed reed switch.

Ordering information

Technical information

Download Data sheet

Switching contacts

Contact configurationSPST, Normally closed
VoltageMaximum 30V
CurrentMaximum 100mA (non-inductive)
Connection typePCB terminal block (2.5mm²)

Input

Voltage10.5 > 14V DC
Power consumption< 20mA
Connection typePCB terminal block (2.5mm²)

Environmental

Operating temperature -10°C to +40°C
Storage temperature -20°C to +50°C
Operating relative humidityMaximum 95% non-condensing
Ingress protection N/A

Dimensions:

Product

Width60mm
Height28mm
Depth30mm
Weight< 0.1Kg

Shipping packaging

Width89mm
Height115mm
Depth30mm
Weight *including product< 0.2Kg
Packaging material3½" x 4½" Re-usable plastic bag

Ordering information

GTINPart codeDescription
DA125Expanding foam detector

Available from all good distributors.
