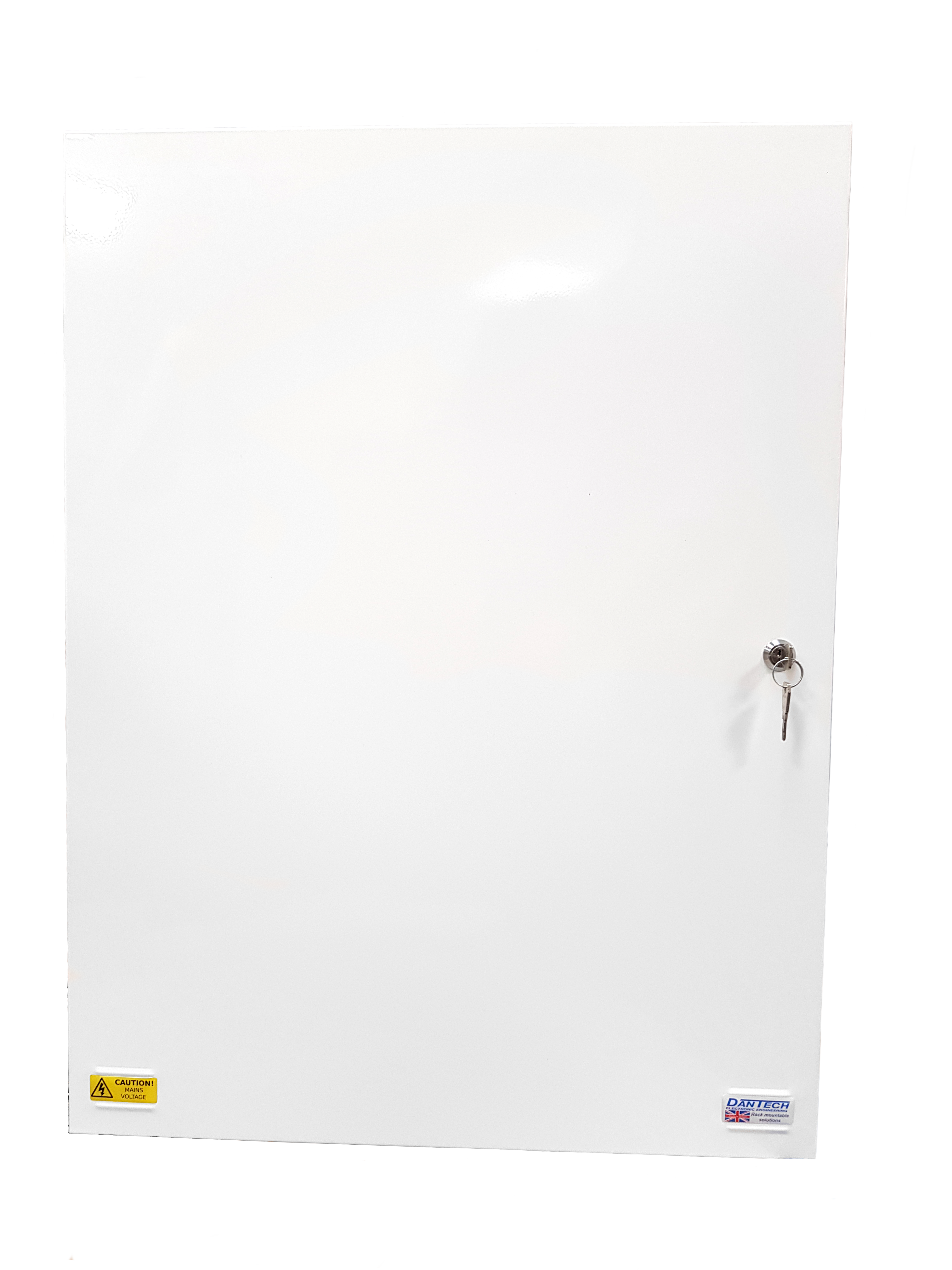

DA816-S: 200mm Slim rack mount cabinet
A wall-mountable slim rack cabinet, developed for installers specializing in large buildings from commercial skyscrapers to large domestic dwellings that require long cable runs. This unit allows you to create a secure mini communications room in a slim wall-mounted cabinet or simply as a CAT5 Junction Box
. The unit allows for many configurations of 19” rack mounting equipment.

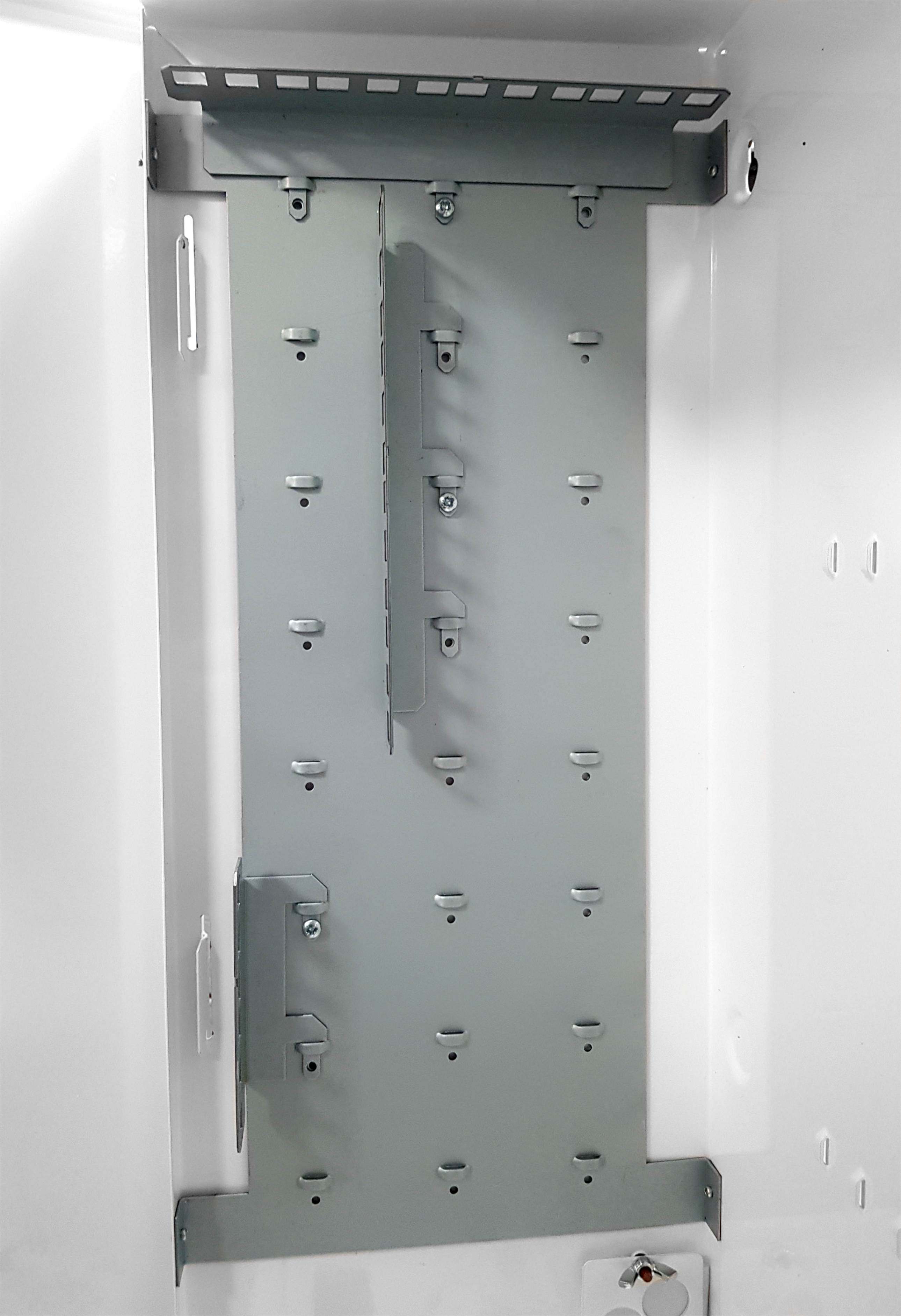

The DA816 is supplied with two pairs of 4U and one pair of 2U brackets, which can be horizontally and/or vertically mounted in various positions. This unit allows shallow devices such as patch panels to be horizontally mounted with deeper switching units mounted vertically.
Example #1:
4U (max. 170mm1deep) mounted horizontally with 4U of equipment 350mm1 deep, mounted vertically.
Example #2:
6U of equipment (max. 170mm1 deep) mounted horizontally with 4U of equipment 250mm1 deep, mounted vertically.

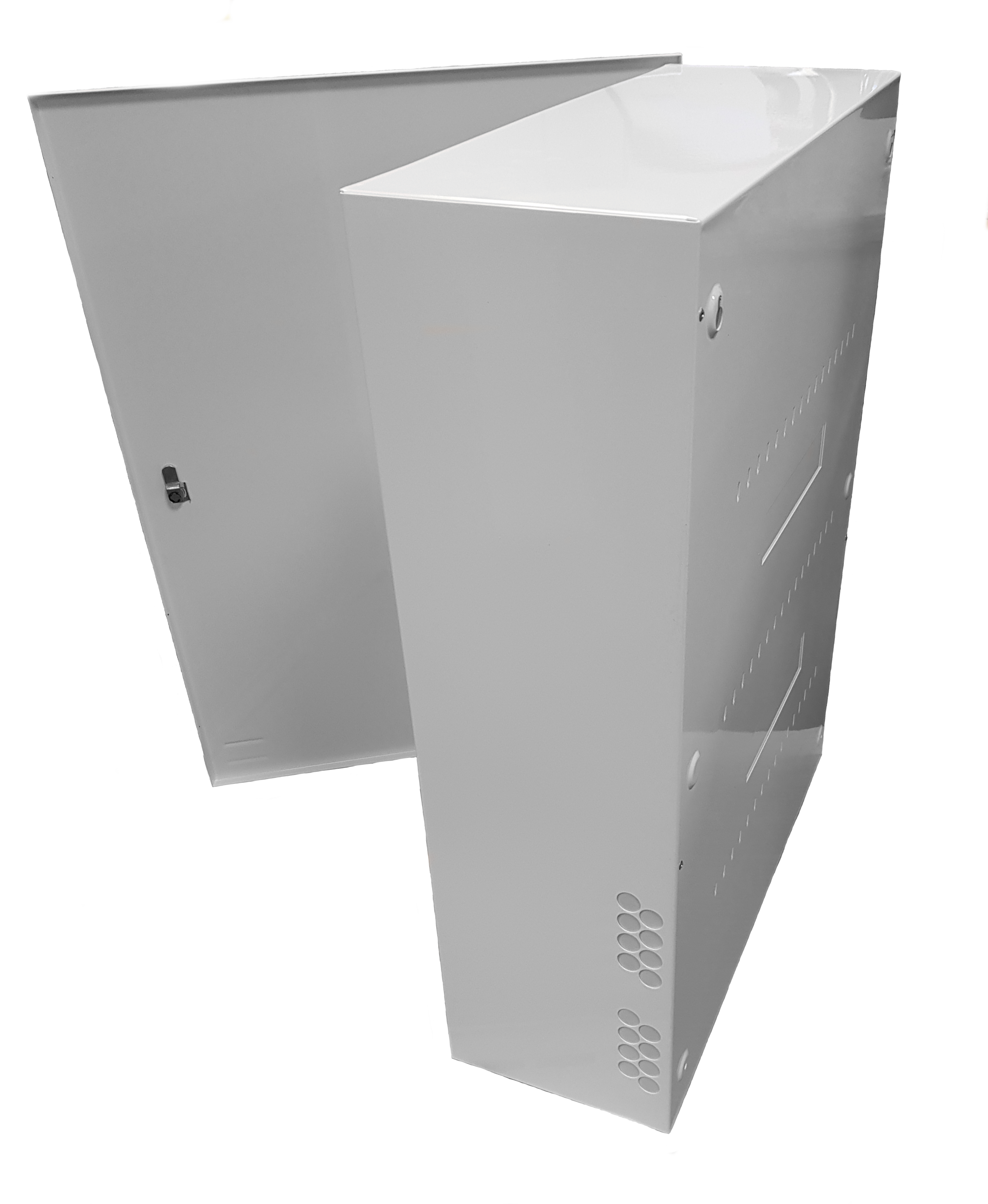

In addition the unit is fitted with an optional 4-way IEC connector power distribution unit with twin cooling fans. Other features include: lid tamper micro switch, removable hinged lid with key-lock, vents, wall mounting fixing positions, tool free removable rear cable entries, seven spare earthing points.
1Maximum size includes any protrusions such as cable entry/exits from rear of mounted equipment
Inclusive mounting kit
Each DA816 includes a Spares Kit
of components that may be of use during installation. This includes:
- 20x M6 Cage Nuts
- 4x Wall fixing screws
- 4x Wall fixing plugs
- 2x IP68 Mains cable gland
