200mm Slim rack mount cabinet with power distribution unit

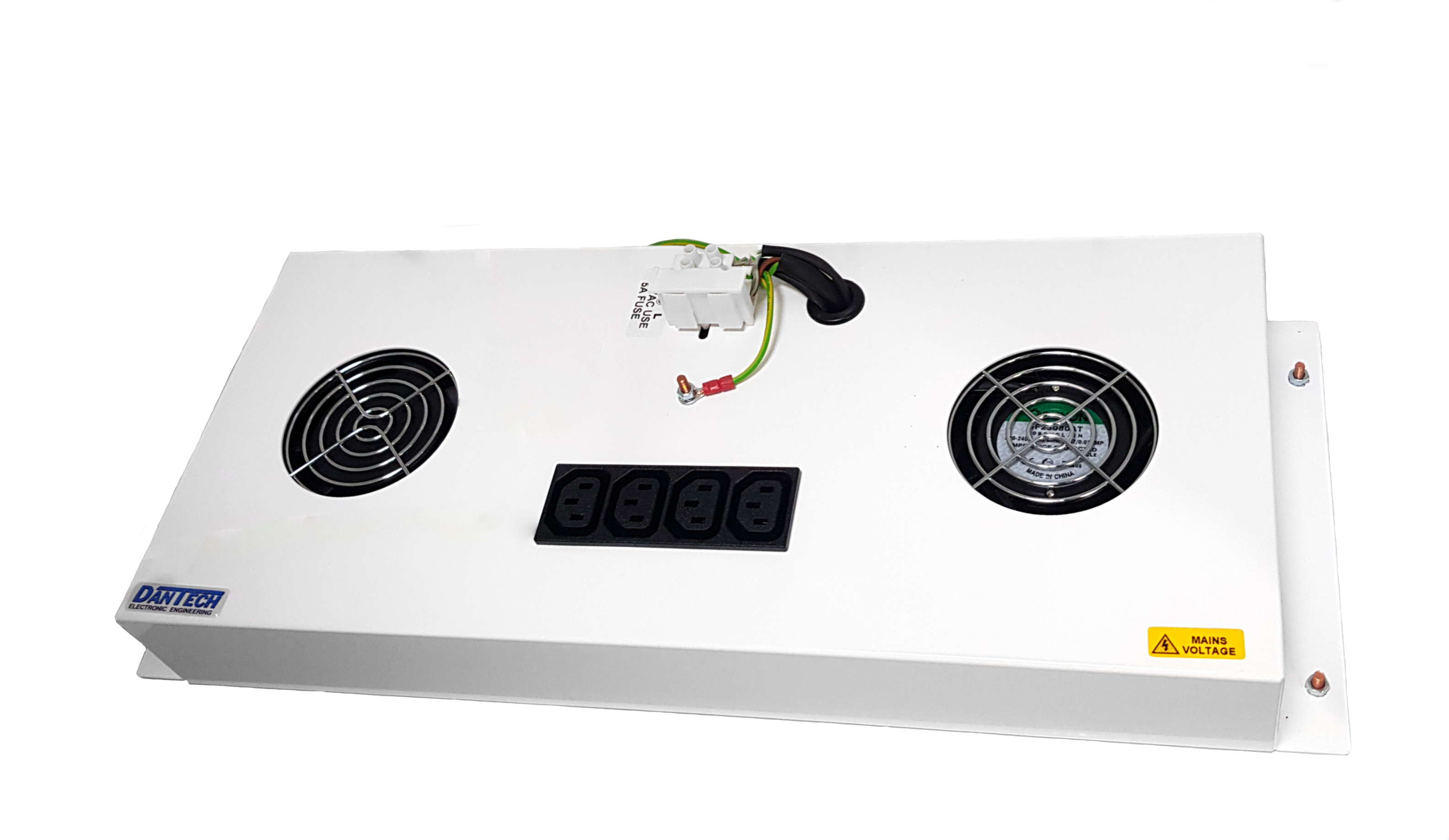

  • 4-way IEC connector PDU & twin cooling fans
  • Horizontal and vertical equipment mounting
  • Removable hinged & lockable lid with tamper switching
  • Tool free removable rear cable entries

DA816-F: 200mm Slim rack mount cabinet

A wall-mountable slim rack cabinet, developed for installers specializing in large buildings from commercial skyscrapers to large domestic dwellings that require long cable runs. This unit allows you to create a secure mini communications room in a slim wall-mounted cabinet or simply as a CAT5 Junction Box. The unit allows for many configurations of 19” rack mounting equipment.

The DA816 is supplied with two pairs of 4U and one pair of 2U brackets, which can be horizontally and/or vertically mounted in various positions. This unit allows shallow devices such as patch panels to be horizontally mounted with deeper switching units mounted vertically.

Example #1:

4U (max. 170mm1deep) mounted horizontally with 4U of equipment 350mm1 deep, mounted vertically.

Example #2:

6U of equipment (max. 170mm1 deep) mounted horizontally with 4U of equipment 250mm1 deep, mounted vertically.

In addition the unit is fitted with an optional 4-way IEC connector power distribution unit with twin cooling fans. Other features include: lid tamper micro switch, removable hinged lid with key-lock, vents, wall mounting fixing positions, tool free removable rear cable entries, seven spare earthing points.

1Maximum size includes any protrusions such as cable entry/exits from rear of mounted equipment

Inclusive mounting kit

Each DA816 includes a Spares Kit of components that may be of use during installation. This includes:

Technical information

Download Data sheet

Rack mount storage

Rack mount equipment width 19" (468mm ℄ to ℄ )
Maximum horizontal depth 170mm1
Maximum vertical depth 500mm1
Maximum vertical depth with 4U horizontal 350mm1

1Maximum size includes any protrusions such as cable entry/exits from rear of mounted equipment

Power distribution unit (PDU)

Input voltage 230V AC @ 50Hz (+/- 10 %)
Input connection type10mm² internal terminal block (3 x 1.5mm² or 2 x 2.5mm²)
Input fuse 5A Mains fuse (BS1362)
Output connection typeFour IEC C14 Connectors
Fan coolingTwin 80mm cooling fans

Environmental

Operating temperature -10°C to +40°C
Storage temperature -20°C to +50°C
Operating relative humidity Maximum 95% non-condensing
Ingress protection N/A

Dimensions:

Product

Width 530mm
Height 700mm
Depth 200mm
Weight < 15.3Kg
Enclosure material Mild steel
Finish Powder coated RAL9016 (white)

Ordering information

GTINPart codeDescription
5060501320439 DA816-FSlim wall mount, vertical rack cabinet with power distribution unit

Other models

GTINPart codeDescription
5060501320446 DA816-SSlim wall mount, vertical rack cabinet.
