Mild steel 2 x 4A 12V DC Multi-purpose 8A power supply

  • Two 12V DC 4A individually fused outputs
  • Mild steel powder-coated enclosures
  • Includes a spares-bag mounting kit
  • 90V to 270V AC @ 47Hz to 63Hz

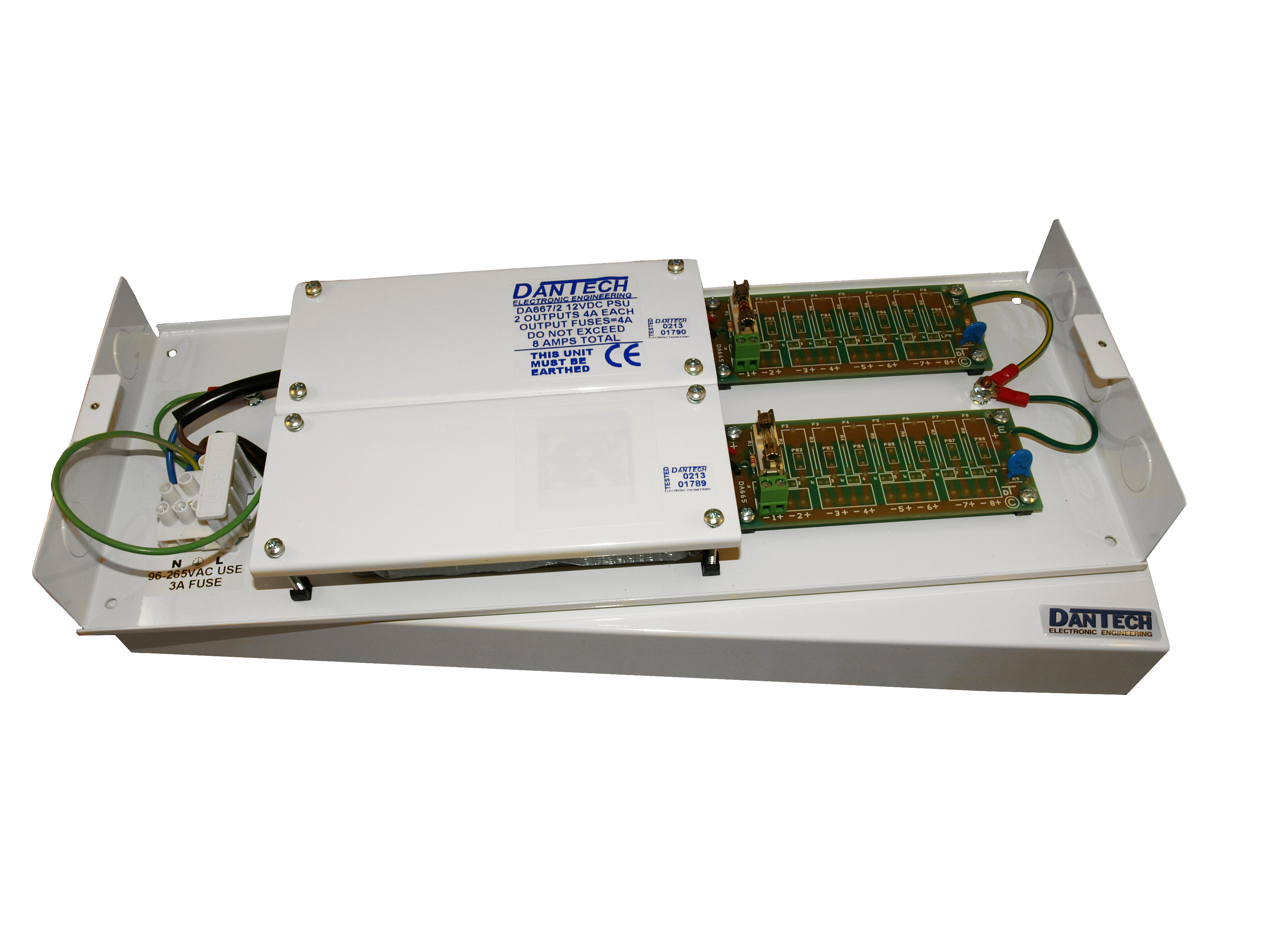

DA667-2: Mild steel 2 x 4A 12V DC Multi-purpose 8A power supply

These switched-mode power supplies can accept a wide range of mains voltage from as little as 90V to 270V with frequencies of 47 to 63Hz. These units will provide a regulated output of 12V DC up to 8A total via individually fused outputs.

Manufactured and tested in Britain, this range of power supplies has a five-year warranty, allowing installers to fit and forget. It is ideal for where high reliability is required and where companies may have long service or maintenance contracts. These units are intended for use with CCTV cameras. However, they are multi-purpose and can be used in a range of security applications.

Mild steel powder-coated enclosures

Precision-made from mild steel and powder-coated white for an easy-clean, durable finish, this enclosure is ideal for wall mounting. The enclosure includes 'knock-outs' for gland entries.

Includes a spares-bag mounting kit

Each unit includes a spares-bag for the installation engineer. This kit contains useful items, such as cable glands, wall plugs and fixing screws.

90V to 270V AC @ 47Hz to 63Hz

Designed to operate on standard mains power voltages world-wide this unit can accept a wide range mains-input of between 90V to 270V AC @ 47Hz to 63Hz.

Ordering information

Technical information

Download Data sheet

Ordering information

GTINPart codeDescription
DA667-2Mild steel 2 x 4A 12V DC Multi-purpose 8A power supply

Available from all good distributors.

Other models

GTINPart codeDescription
DA667-4Mild steel 4 x 2A 12V DC Multi-purpose 8A power supply
DA667-8Mild steel 8 x 1A 12V DC Multi-purpose 8A power supply
DA667-16Mild steel 16 x 500mA 12V DC Multi-purpose 8A power supply
DA667-IP66-2IP66 Weather-resistant 2 x 8A 12V DC Multi-purpose 8A power supply
DA667-IP66-4IP66 Weather-resistant 4 x 2A 12V DC Multi-purpose 8A power supply
DA667-IP66-8IP66 Weather-resistant 8 x 1A 12V DC Multi-purpose 8A power supply
DA667-IP66-16IP66 Weather-resistant 16 x 500mA 12V DC Multi-purpose 8A power supply
DA667-P-2Open-frame 2 x 8A 12V DC Multi-purpose 8A power supply
DA667-P-4Open-frame 4 x 2A 12V DC Multi-purpose 8A power supply
DA667-P-8Open-frame 8 x 1A 12V DC Multi-purpose 8A power supply
DA667-P-16Open-frame 16 x 500mA 12V DC Multi-purpose 8A power supply

Available from all good distributors.
