DA445: 19" 2U Rack mount power supply

Typically used for powering CCTV cameras, the DA445 range of multi-purpose 19" 2U rack-mount power supplies are ideal for tidy, professional rack-mounted installations.

Manufactured and tested in Britain, this range of power supplies has a five-year warranty, allowing installers to fit and forget. It is ideal for where high reliability is required and where companies may have long service or maintenance contracts.

Ordering information

Quick-blow glass output fuses

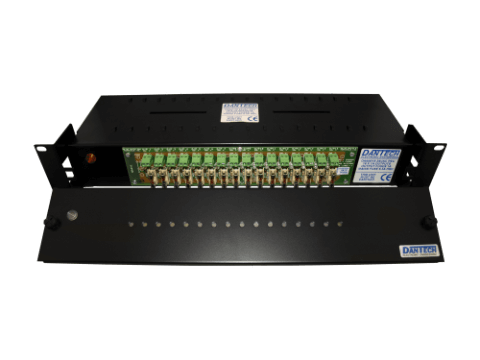

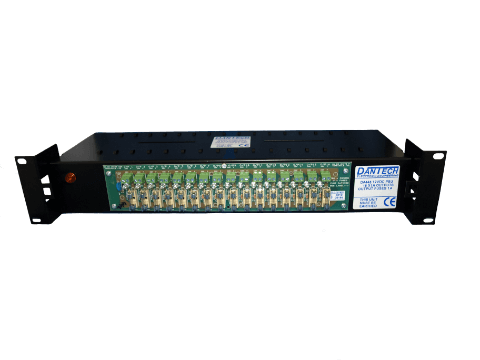

Each output is independently fuse protected, the removable front plate gives easy access to the output fuses. The fused outputs can accommodate any 20 x 5mm fuses. As standard, these units are fitted with Quick-blow Glass Fuses.

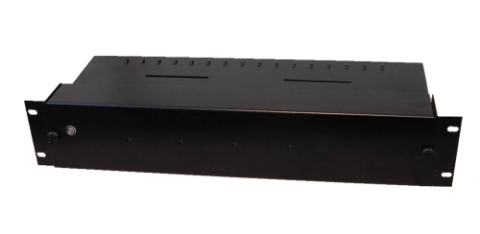

2U 19" rack-mount enclosure

Precision-made from mild steel and powder-coated with a textured black finish for an durable finish. The front of the power supply has two Dzus quarter turn fasteners for quick release of the front panel to gain easy access to the front-mounted fused outputs. The enclosure includes cable tie points for cables on the top of the unit for connecting wires from the rear of the unit to the front-mounted outputs.

IEC C13 lead with UK mains plug

This unit is fitted with an IEC C14 socket to accept IEC C13 connectors. Each product includes an IEC lead with a UK Mains plug.

Made in Britain with 5 year warranty

Ordering information

GTINPart codeDescription
DA445-4-12V19" 2U Rack mount 16A power supply with 4x 4A 12V DC outputs
DA445-8-12V19" 2U Rack mount 16A power supply with 8x 2A 12V DC outputs
DA445-16-12V19" 2U Rack mount 16A power supply with 16x 1A 12V DC outputs
DA445-4-24V19" 2U Rack mount 8A power supply with 4x 2A 24V DC outputs
DA445-8-24V19" 2U Rack mount 8A power supply with 8x 1A 24V DC outputs
DA445-16-24V19" 2U Rack mount 8A power supply with 16x 500mA 24V DC outputs

Available from all good distributors.
