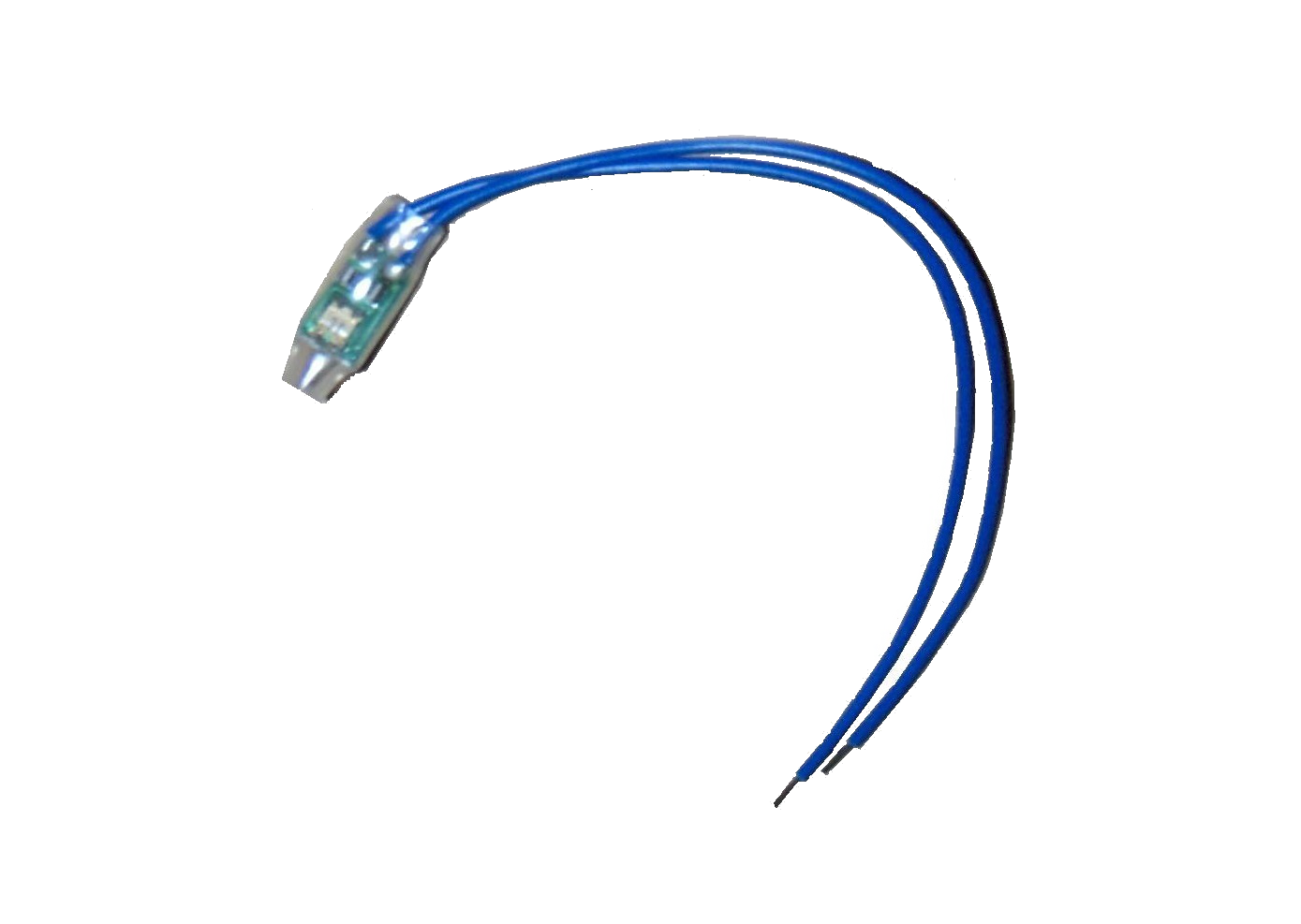

DA640: Tri-colour LED indicator

  • Pre-wired LED
  • Yellow: AC current
  • Green: DC Current
  • Red: DC with reversed polarity

DA640: Tri-colour Yellow Red & Green LED indicator

Used with DC circuits this tri-colour LED will illuminate either RED or GREEN depending which way round it is connected. To change between RED and GREEN illumination, simply reverse the wires. Used with AC circuits both red and green LEDs will light up giving a YELLOW indication to show that AC voltage is present.

Typical uses include indications for power supply units, relays, camera and magnetic locks. With it's wide range input of 9-30V, displaying yellow on AC and Red/Green depending on the polarity of DC It is also commonly used as a temporary indicator to aid with installations.

Ordering information

Technical information

Download Data sheet

Indication

Green DC Input (Correct polarity)
Red DC Input (Reversed polarity)
Yellow AC Input

Input
Voltage9 > 30V
Power consumption< 15mA
Connection type100mm blue fly leads

Environmental

Operating temperature -10°C to +40°C
Storage temperature -20°C to +50°C
Operating relative humidityMaximum 95% non-condensing
Ingress protection N/A

Dimensions:

Product

Width 10mm
Height 18mm
Depth 4mm
Weight < 0.01Kg
Enclosure material Clear Polyolefil heat shrunk insulation

Ordering information

GTINPart codeDescription
DA640Tri-colour Yellow Red & Green LED indicator

Available from all good distributors.
