12V 1A DC in-line power supply

  • Single 12V 1A DC output
  • 1 years warranty
  • Fire retardant ABS enclosure with mounting points
  • Thermally fused

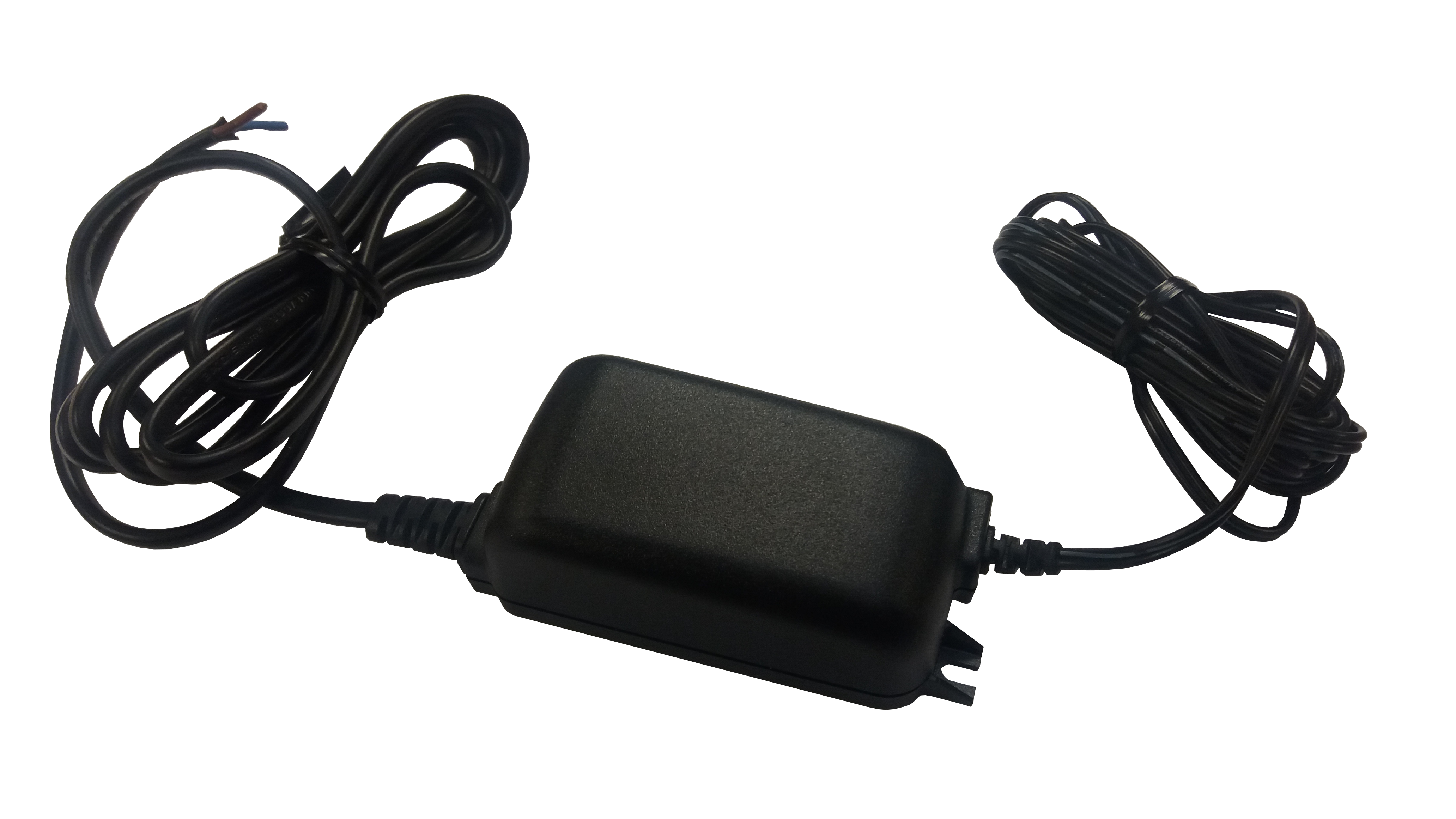

DA492: 12V 1A DC in-line power supply

The DA492 single output power supply unit, provides 1 x 12V 1A DC. It accepts a mains voltage input of 230V AC @50Hz (+/- 10%) and the output is thermally fused. Typical uses for this power supply unit include powering CCTV cameras.

Ordering information

Provides power for a 12V DC device up to 500mA

This in-line power supply has an internal output terminal block for terminating hard-wired equipment requiring up to 500mA of 12V DC.

100 > 240V AC mains-input

Designed as a component of a larger electrical system such as a CCTV system, simply terminate the mains power into the internal terminal block and connect a device that requires power to the output. As with all mains-powered devices, you must ensure it is installed in accordance with manufacturer's guidance, local law and regulations.

Fire retardant ABS enclosure

The black ABS enclosure is fire retardant to UK law to reduce fire risks.

Technical information

Download Data sheet

Output
Voltage12V DC
Current1x 1A
Connection type900mm fly-lead (- Black, + Red)
Fused20 x 5mm 1A quick-blow glass fuse

Input
Voltage100 > 240V AC @ 50Hz (+/- 10%)
Power consumption< 16VA
Connection type900mm fly-lead ( Blue / Brown )
FusedThermally fused

Environmental

Operating temperature 0°C to +40°C
Storage temperature -20°C to +50°C
Operating relative humidityMaximum 95% non-condensing
Ingress protection IP20

Dimensions:

Product

Width40mm
Height125mm1
Depth30mm
Weight< 0.5Kg
Enclosure materialFire retardant Acrylonitrile Butadiene Styrene (ABS)
FinishBlack

190mm enclosure excluding protruding wires

Ordering information

GTINPart codeDescription
DA49212V 1A DC in-line power supply unit

Available from all good distributors.
