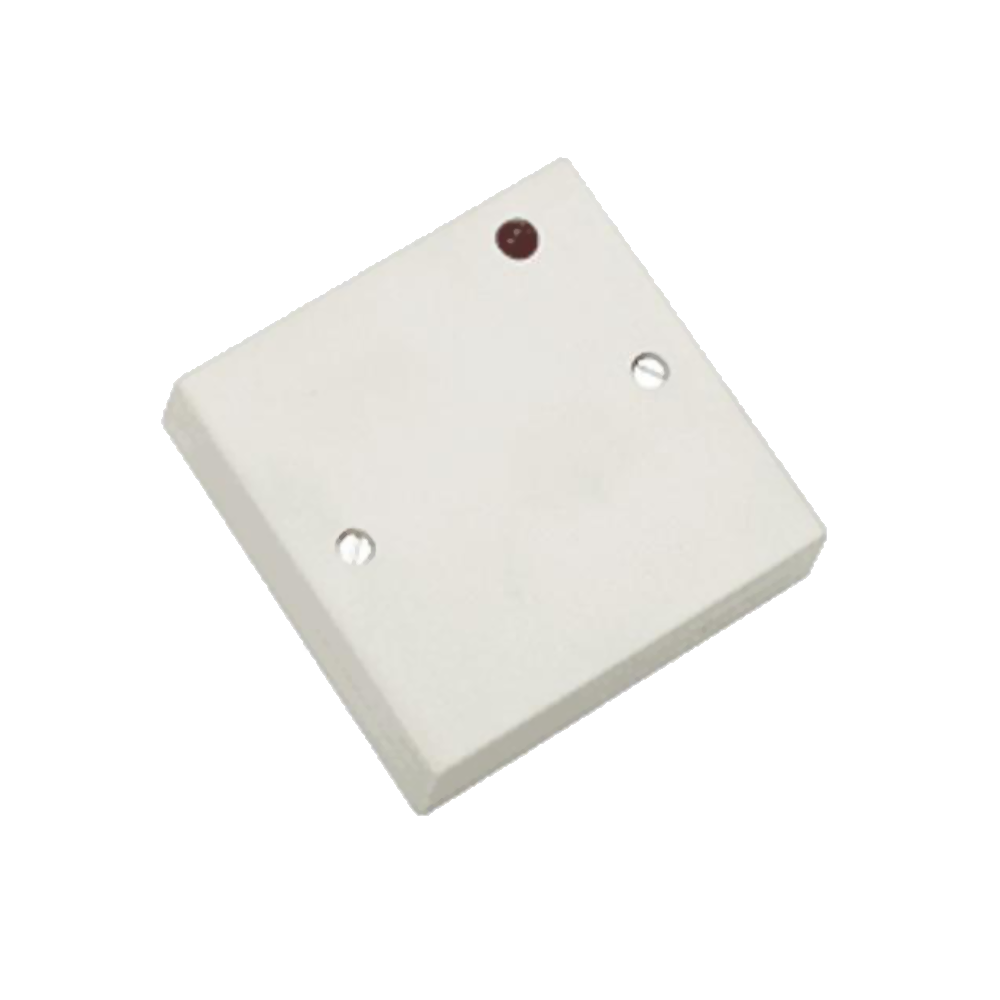

A multi-purpose sensor designed to detect the presence or absence of a nearby surface.
An infra-red beam is transmitted from the unit and is reflected back by a nearby object or surface up to 75mm away. If the object or surface is removed the beam will not reflect back and the relay contacts will change-over.
Ideal for use with an intruder alarm system and The DA455-2 mounting bracket for access points using roller shutter doors.
Download Data sheet
| Relay channels | One |
| Contact configuration | Single pole change-over |
| Voltage | Maximum 30V |
| Current | Maximum 1A |
| Connection type | PCB terminal block (2.5mm²) |
| Voltage | 10.5 > 14V DC |
| Power consumption | < 35mA |
| Connection type | PCB terminal block (2.5mm²) |
| Operating temperature | -10°C to +40°C |
| Storage temperature | -20°C to +50°C |
| Operating relative humidity | Maximum 95% non-condensing |
| Ingress protection | IP20 |
| Width | 85mm |
| Height | 85mm |
| Depth | 20mm |
| Weight | < 0.1Kg |
| Enclosure material | Plastic |
| Finish | White |
| Width | 100mm |
| Height | 110mm |
| Depth | 22mm |
| Weight *including product | < 0.1Kg |
| Packaging material | Corrugated cardboard |

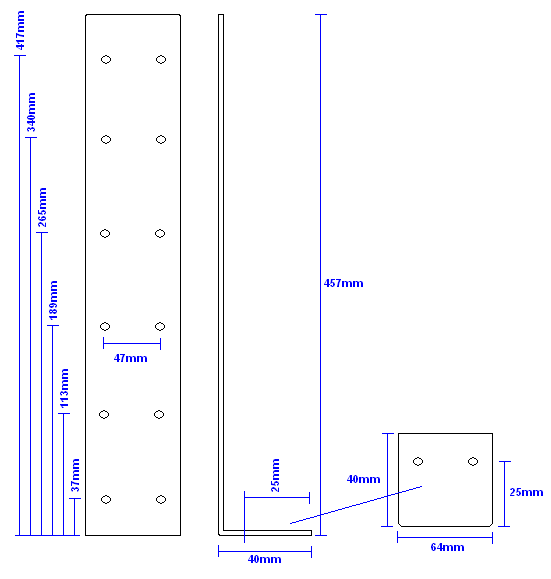

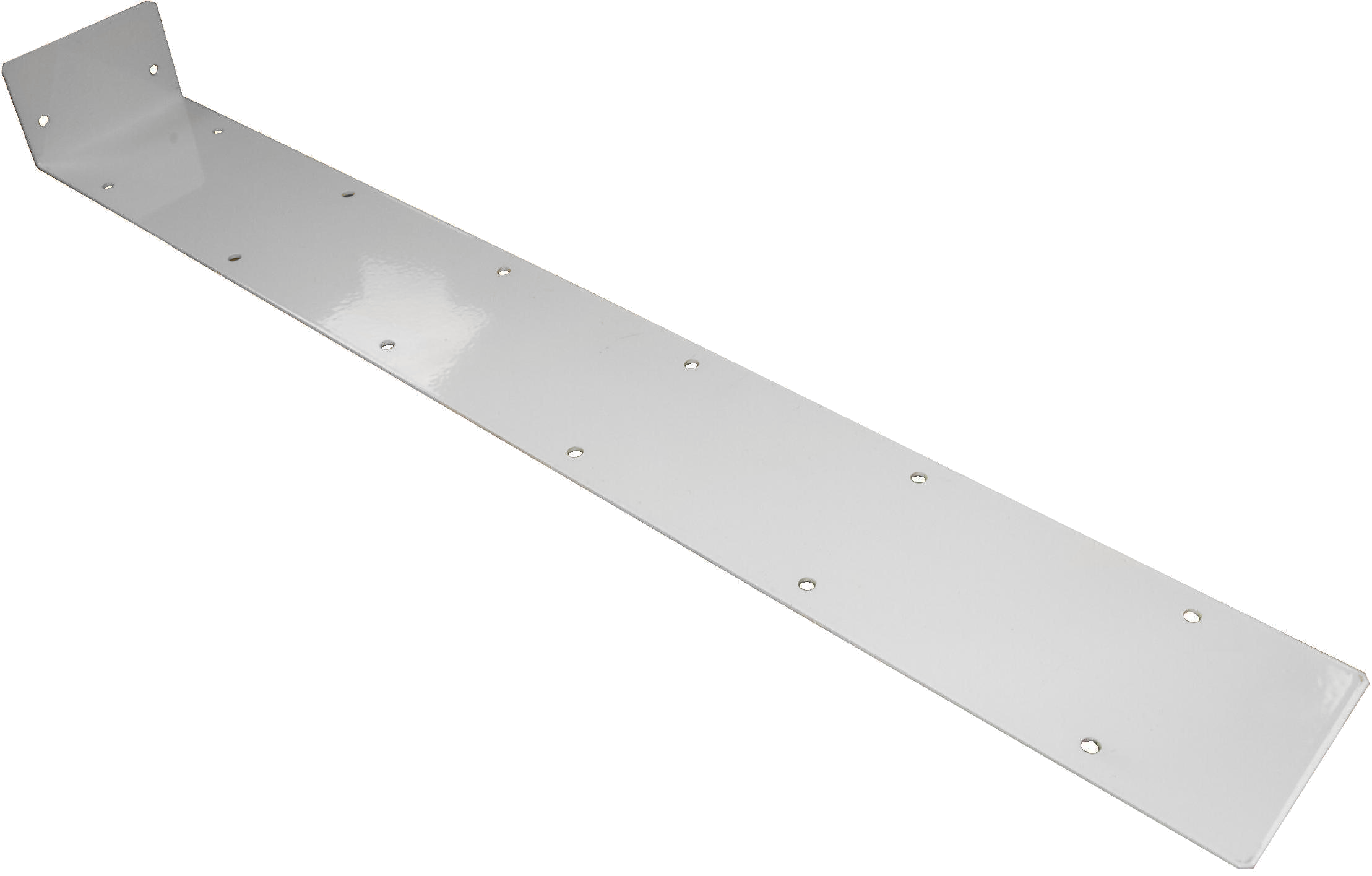

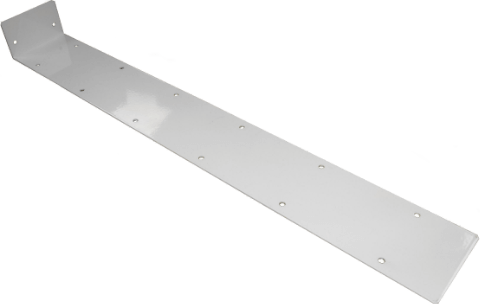

The DA455-2 is a simple mild steel L
shaped mounting bracket for the DA455.
| GTIN | Part code | Description |
|---|---|---|
 |
DA455-1 | Multi-purpose Infra-red Proximity Sensor |
|
DA455-2 | Mounting bracket for DA455-1 IR Proximity Sensor |
Available from all good distributors.
