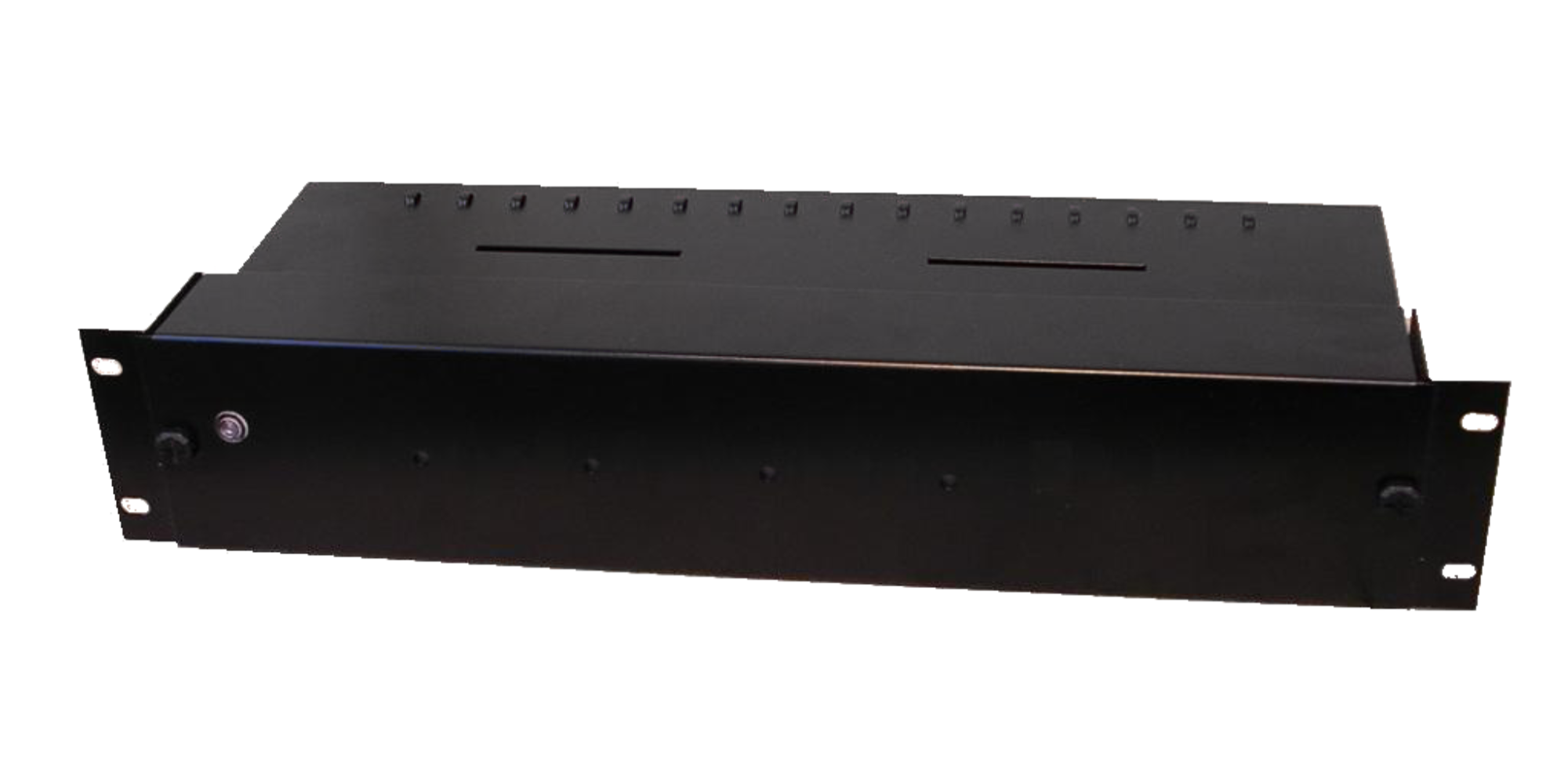

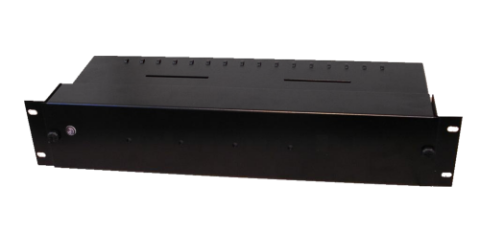

DA444-110V-4: 19" 2U Rack mount 110V 16A power supply with 4x isolated 24V 4A AC outputs
Typically used for powering CCTV cameras, the DA444 range of multi-purpose 19" 2U rack-mount power supplies are ideal for tidy, professional rack-mounted installations.
Manufactured and tested in Britain, this range of power supplies has a five-year warranty, allowing installers to fit and forget. It is ideal for where high reliability is required and where companies may have long service or maintenance contracts.
Electrically isolated outputs
Isolation between circuits can be an advantage in many applications, such as preventing ground loops. Ground loops occur when two or more circuits share a common return path. When ground loops occur, there is the high likelihood that the signal voltage developed by current from one of the circuits on the return path will disrupt the operation of the other circuit.
Quick-blow glass output fuses
Each output is independently fuse protected, the removable front plate gives easy access to the output fuses. The fused outputs can accommodate any 20 x 5mm fuses. As standard, these units are fitted with Quick-blow Glass Fuses.
2U 19" rack-mount enclosure
Precision-made from mild steel and powder-coated with a textured black finish for an durable finish. The front of the power supply has two Dzus quarter turn fasteners for quick release of the front panel to gain easy access to the front-mounted fused outputs. The enclosure includes cable tie points for cables on the top of the unit for connecting wires from the rear of the unit to the front-mounted outputs.
IEC C13 lead with UK mains plug
This unit is fitted with an IEC C14 socket to accept IEC C13 connectors. Each product includes an IEC lead with a UK Mains plug.
Download Data sheet
