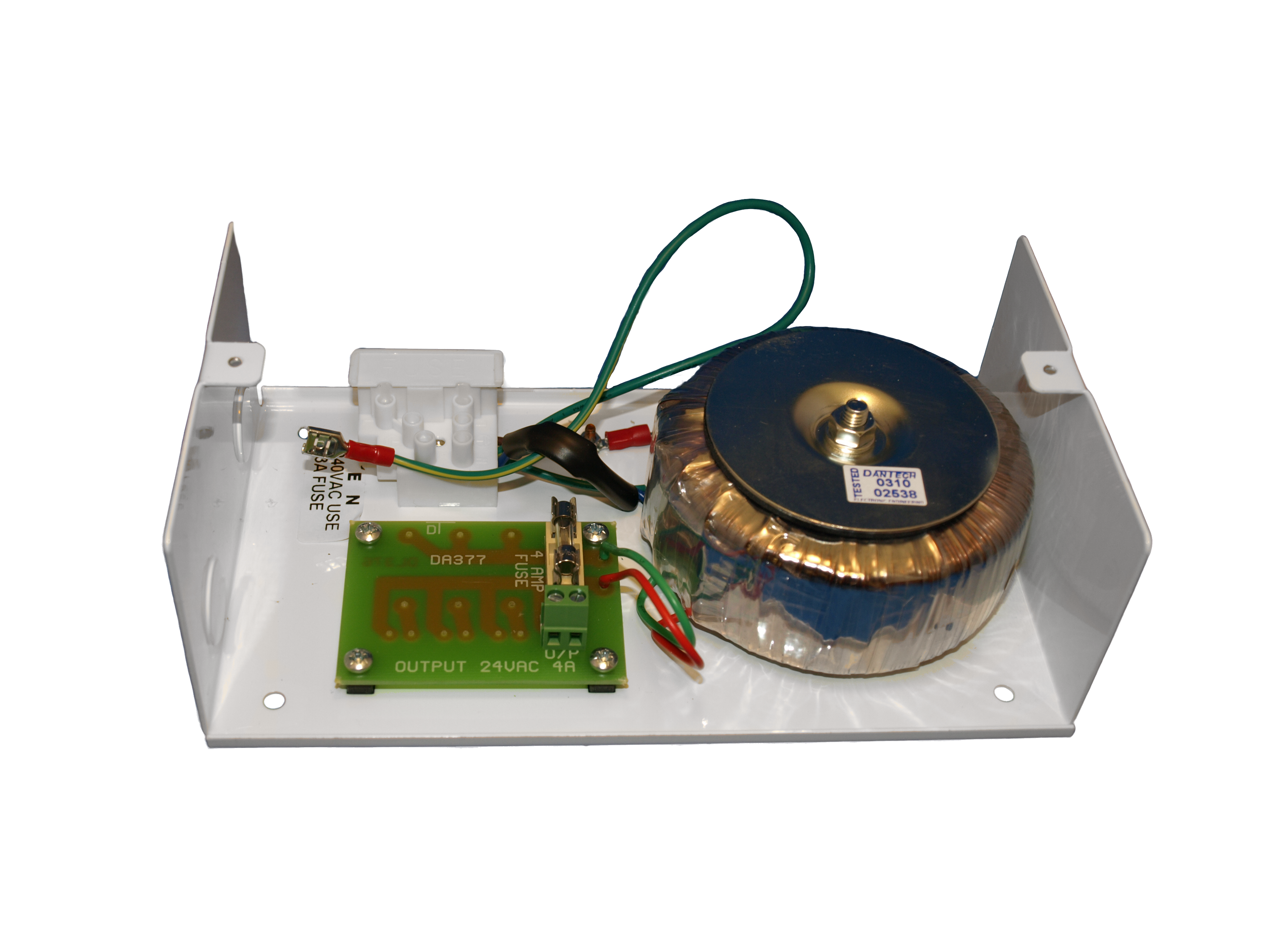

110V AC to 1 x 4A 24V AC Power supply in a mild steel enclosure

  • One 4A 24V AC fused outputs
  • Mild steel powder-coated enclosures
  • Includes a spares-bag mounting kit
  • Input 110V AC @ 50Hz (+/- 10%)

DA377-110V: 110V AC to 1 x 4A 24V AC Power supply in a mild steel enclosure

This simple range of multi-purpose power supplies is available metal-cased or within an IP66 weather-resistant enclosure. They provide 4A of 24V AC via individually fused outputs.

Manufactured and tested in Britain, this range of power supplies has a five-year warranty, allowing installers to fit and forget. It is ideal for where high reliability is required and where companies may have long service or maintenance contracts.

Typical uses include powering CCTV cameras and camera housing heaters.

One 4A 24V AC fused outputs

This unit can provide 4A continuously and the output is fused protected with a 'quick-blow' 4A glass fuse.

Includes a spares-bag mounting kit

Each unit includes a spares-bag for the installation engineer. This kit contains useful items, such as cable glands, wall plugs and fixing screws.

Input 110V AC @ 50Hz (+/- 10%)

Designed to operate on UK standard mains power, this unit will accept a mains-powered input of 110V AC @ 50Hz (+/- 10%)

Ordering information

Technical information

Download Data sheet

Output
Outputs1
Voltage24V AC
Current4A maximum total
Connection typePCB terminal block (2.5mm²)
Fused20 x 5mm 4A quick-blow glass fuse
Power on indicationnone

Input
Voltage110V AC @ 50Hz (+/- 10%)
Power consumption< 125VA
Connection type10mm² internal terminal block (3 x 1.5mm² or 2 x 2.5mm²)
Fused3A Mains fuse (BS1362)
Power indicationnone

Environmental

Operating temperature -10°C to +40°C
Storage temperature -20°C to +50°C
Operating relative humidityMaximum 95% non-condensing
Ingress protection IP20

Dimensions:

Product

Width 118mm
Height 200mm
Depth 70mm
Weight < 2.1Kg
Enclosure material Mild steel
Finish Powder coated RAL9016 (white)

Shipping packaging

Width 128mm
Height 210mm
Depth 80mm
Weight *including product< 2.3Kg
Packaging material Corrugated cardboard

Ordering information

GTINPart codeDescription
DA377-110V110V AC to 1 x 4A 24V AC Power supply in a mild steel enclosure

Other models

GTINPart codeDescription
DA377-230V 230V AC to 1 x 4A 24V AC Power supply in a mild steel enclosure
DA377-110V-IP66 110V AC to 1 x 4A 24V AC Power supply in an ABS IP66 enclosure
DA377-230V-IP66 230V AC to 1 x 4A 24V AC Power supply in an ABS IP66 enclosure
DA377-110V-P Plate-mounted 110V AC to 1 x 4A 24V AC open-frame power supply
DA377-230V-P Plate-mounted 230V AC to 1 x 4A 24V AC open-frame power supply

Available from all good distributors.
