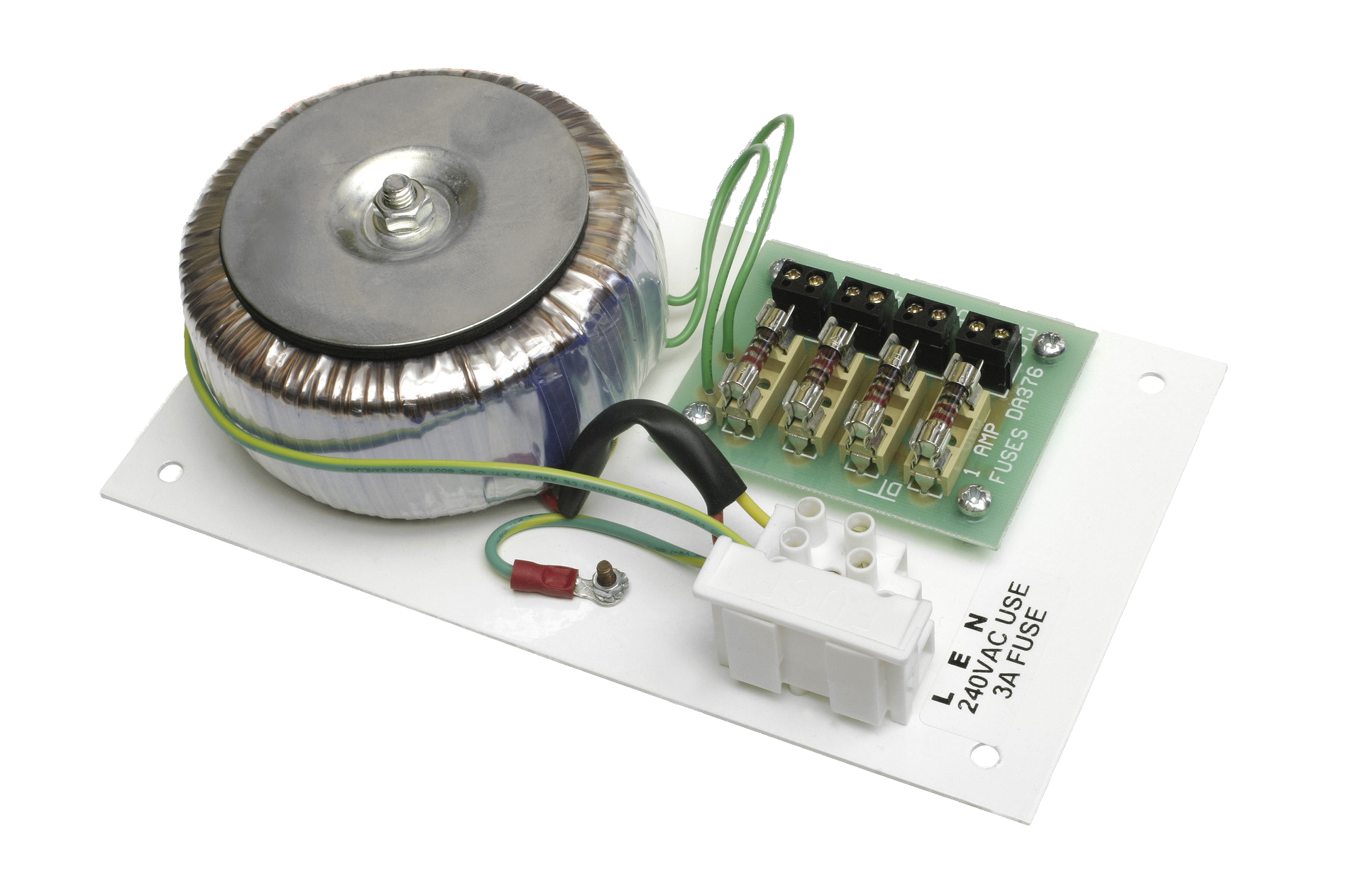

Plate-mounted 110V AC to 4 x 1A 24V AC open-frame power supply

Four 1A 24V AC fused outputs
Open-frame power supply with mild steel mounting plate
Includes a spares-bag mounting kit
Input 230V AC @ 50Hz (+/- 10%)

DA376-110V-P: Plate-mounted 110V AC to 4 x 1A 24V AC open-frame power supply

This simple range of multi-purpose power supplies provides up to 4A of 24V AC via individually fused outputs. The DA376 is available with 110V or 230V AC input within a mild steel enclosure, IP66 Rated enclosure or plate-mounted.

Manufactured and tested in Britain, this range of power supplies has a five-year warranty, allowing installers to fit and forget. It is ideal for where high reliability is required and where companies may have long service or maintenance contracts. Typical uses include powering door access controllers, electronic door releases, magnetic locks and CCTV cameras.

Individually fused outputs

This unit can provide up to 4A via four individual fused 1A outputs continuously. Each output is individually fused protected with a quick-blow glass fuse.

Ordering information

Technical information

Download Data sheet

Output


Voltage	24V AC
Current	4x 1A (4A maximum total)
Connection type	PCB terminal block (2.5mm²)
Fused	20 x 5mm 1A quick-blow glass fuse
Power on indication	none

Input


Voltage	110V AC @ 50Hz (+/- 10%)
Power consumption	< 125VA
Connection type	10mm² terminal block (3 x 1.5mm² or 2 x 2.5mm²)
Fused	3A Mains fuse (BS1362)
Power indication	none

Environmental

Operating temperature	-10°C to +40°C
Storage temperature	-20°C to +50°C
Operating relative humidity	Maximum 95% non-condensing
Ingress protection	N/A

Dimensions:

Product

Width	130mm
Height	230mm
Depth	60mm
Weight	< 2.0Kg
Enclosure material	None
Finish	Open-frame

Ordering information

GTIN	Part code	Description
	DA376-110V-P	Plate-mounted 110V AC to 4 x 1A 24V AC open-frame power supply

Other models

GTIN	Part code	Description
	DA376-110V	110V AC to 4 x 1A 24V AC Power supply in a mild steel enclosure
	DA376-230V	230V AC to 4 x 1A 24V AC Power supply in a mild steel enclosure
	DA376-110V-IP66	110V AC to 4 x 1A 24V AC Power supply in an ABS IP66 enclosure
	DA376-230V-IP66	230V AC to 4 x 1A 24V AC Power supply in an ABS IP66 enclosure
	DA376-230V-P	Plate-mounted 230V AC to 4 x 1A 24V AC open-frame power supply

Available from all good distributors.
