12V 3A DC with UPS function & 16V 5A AC Power supply

  • 12V DC 3A (13.7V) output
  • 16V AC 5A output
  • House and charge a VRLA battery up to 7Ah capacity
  • Includes a spares-bag mounting kit
  • Input 230V AC @ 50Hz (+/- 10%)

DA369: 12V 3A DC with UPS function & 16V 5A AC Power supply

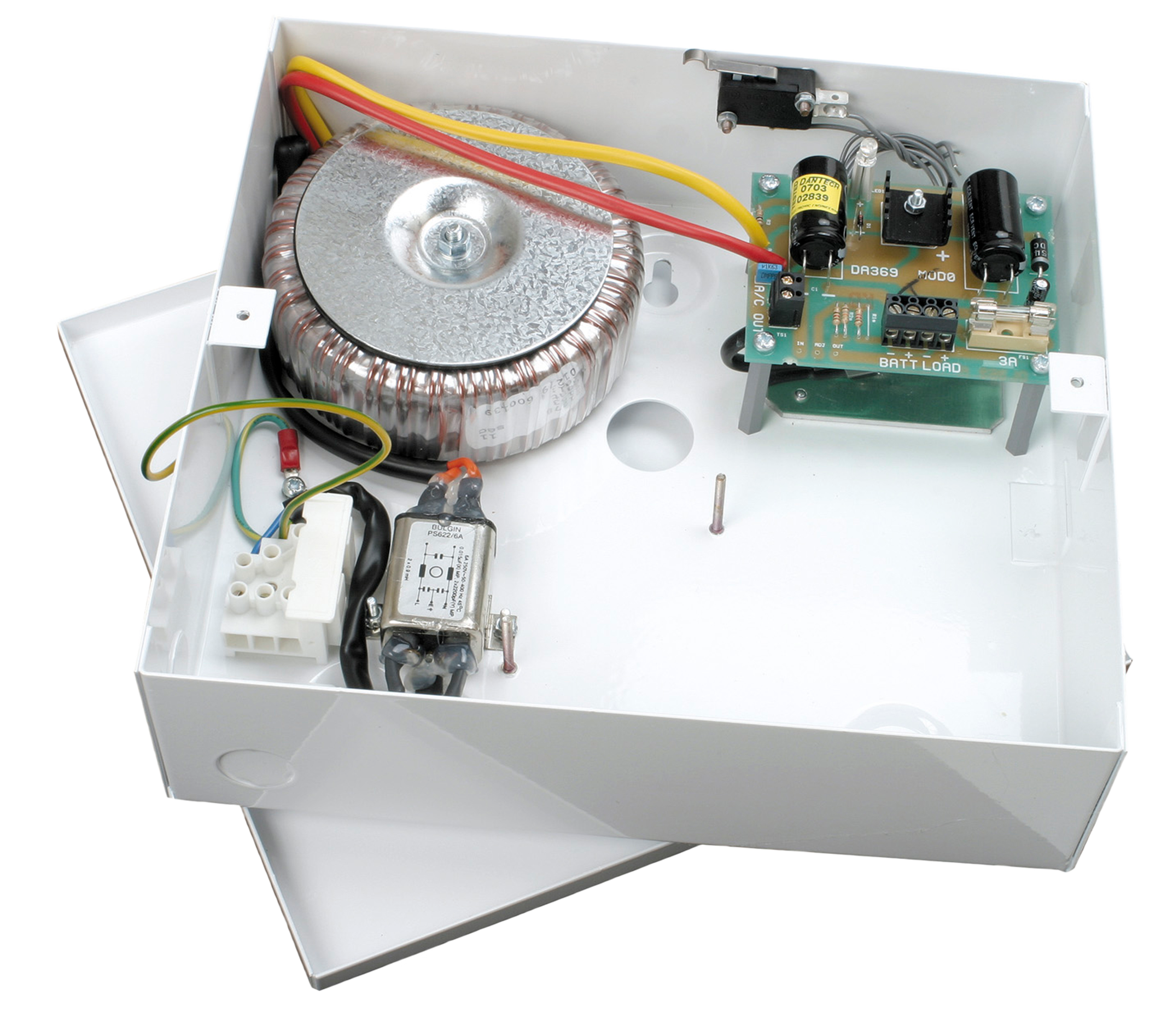

A dual-output, metal-cased power supply providing 12V DC 3A (13.7V) via the Load output and 16V AC 5A via the A/C Out terminals. The load output is protected with a quick-blow 3A glass fuse.

The enclosure can also house a 7Ah VRLA battery, which the power supply will automatically charge while mains power is present, and use in the event of a mains power loss.

Manufactured and tested in Britain, this range of power supplies has a five-year warranty, allowing installers to fit and forget. It is ideal for where high reliability is required and where companies may have long service or maintenance contracts. Typical uses include powering door access controllers, electronic door releases, magnetic locks and CCTV cameras.

12V DC 3A (13.7V) & 16V AC 5A output

This dual-output power supply provides 12V DC 3A (13.7V) via the Load output and 16V AC 5A via the A/C Out terminals. The load output is protected with a quick-blow 3A glass fuse.

Integrated UPS battery back-up function

A 7Ah VRLA battery can be placed in the mild steel enclosure and connected to the battery terminals of the PCB. This power supply will automatically float-charge the battery to capacity, providing continuous uninterrupted power from the battery if mains power is unavailable.

Batteries are not included. This unit can be used with or without batteries fitted.

Mild steel powder-coated enclosures

Precision-made from mild steel and powder-coated white for an easy-clean, durable finish, this enclosure is ideal for wall mounting. The enclosure includes 'knock-outs' for cable gland entries.

Includes a spares-bag mounting kit

Each unit includes a spares-bag for the installation engineer. This kit contains useful items, such as cable glands, wall plugs and fixing screws.

Input 230V AC @ 50Hz (+/- 10%)

Designed to operate on UK standard mains power, this unit will accept a mains-powered input of 230V AC @ 50Hz (+/- 10%)

Ordering information

Similar products

DA449:
12V 8A DC or 24V 4A DC

  • Engineer selectable output
  • 8A 12V DC (13.7V) or 24V 4A DC (27.4V)
  • House and charge VRLA batteries for back-up
  • Mains fail signalling
  • Independent relay
  • Input 230V AC @ 50Hz (+/- 10%)

DA448:
12V 5A DC or 24V 2.5A DC

  • Engineer selectable output
  • 5A 12V DC (13.7V) or 24V 2.5A DC (27.4V)
  • House and charge VRLA batteries for back-up
  • Mains fail signalling
  • Independent relay
  • Input 230V AC @ 50Hz (+/- 10%)

DA447:
12V 3A DC or 24V 1.5A DC

  • Engineer selectable output
  • 3A 12V DC (13.7V) or 24V 1.5A DC (27.4V)
  • House and charge VRLA batteries for back-up
  • Mains fail signalling
  • Independent relay
  • Input 230V AC @ 50Hz (+/- 10%)

DA446:
12V 1.5A DC or 24V 750mA DC

  • Engineer selectable output
  • 1.5A 12V DC (13.7V) or 24V 750mA DC (27.4V)
  • House and charge VRLA batteries for back-up
  • Mains fail signalling
  • Independent relay
  • Input 230V AC @ 50Hz (+/- 10%)

Technical information

Download Data sheet

Outputs

Load Output

Voltage12V DC (13.7V)
CurrentMaximum 3A
Connection typePCB terminal block (2.5mm²)
Fused20 x 5mm 3A quick-blow glass fuse
Power on indicationnone

A/C Out

Voltage16V AC
CurrentMaximum 5A
Connection typePCB terminal block (2.5mm²)
Power on indicationnone

Input
Voltage230V AC @ 50Hz (+/- 10%)
Power consumption< 158VA
Connection type10mm² internal terminal block (3 x 1.5mm² or 2 x 2.5mm²)
Fused5A Mains fuse (BS1362)
Power indicationLED Indicator

Environmental

Operating temperature -10°C to +40°C
Storage temperature -20°C to +50°C
Operating relative humidityMaximum 95% non-condensing
Ingress protection IP20

Dimensions:

Product

Width266mm
Height237mm
Depth80mm
Weight< 3.65Kg
Enclosure materialMild steel
FinishPowder coated RAL9016 (white)

Ordering information

GTINPart codeDescription
DA36912V 3A DC with UPS function & 16V 5A AC Power supply
