DA340-IP66: Weather-resistant LED visual Indicator

  • Available in either indoor ABS or weather-resistant IP66 rated enclosures
  • Trigger LEDs with 5V ≤ 30V DC inputs
  • 10.5V ≤ 14V DC-powered
  • Current consumption 55mA
  • Trigger LEDs independently
  • Lid tamper switch

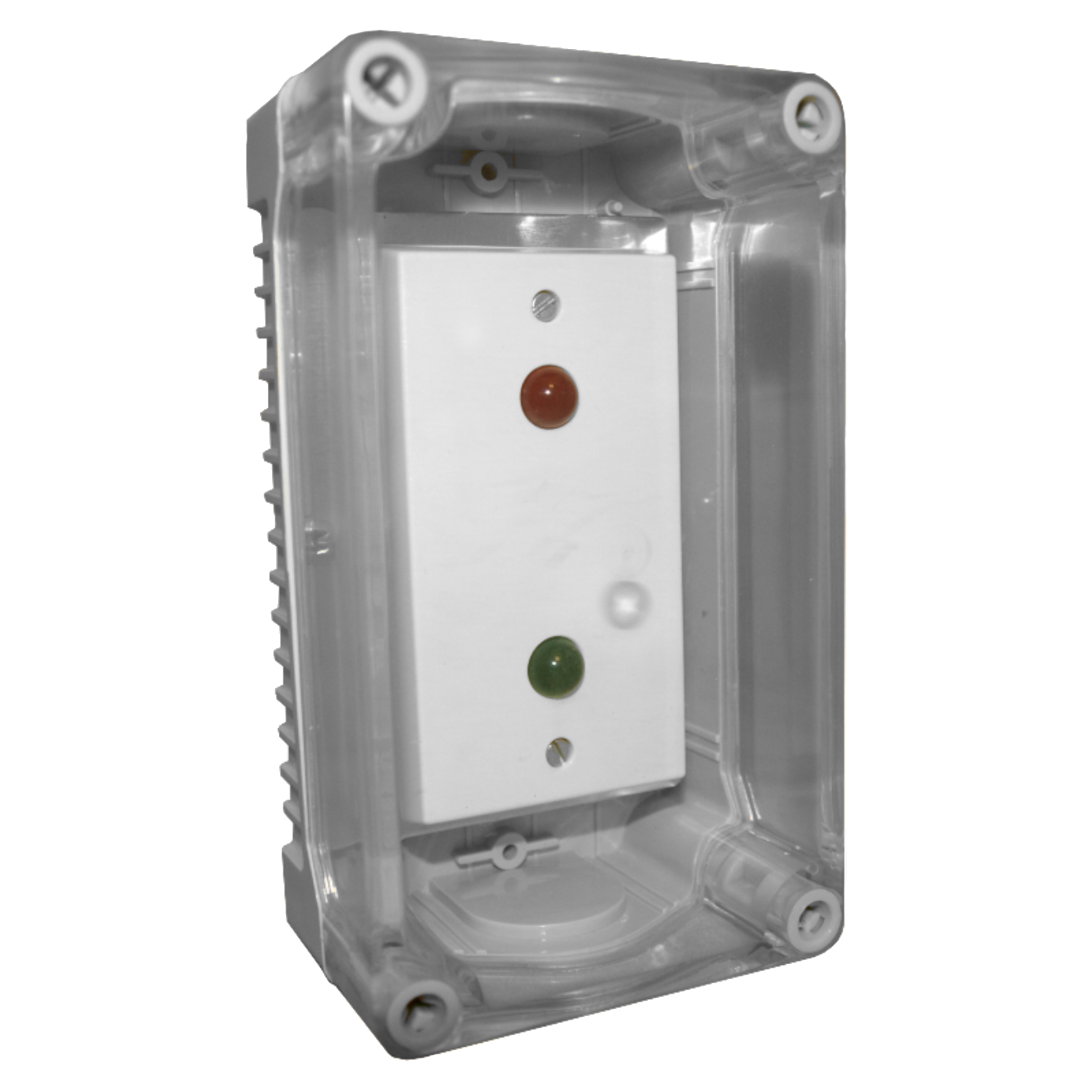

DA340-IP66: Weather-resistant Red & Green LED indicator

With independently switched 10mm jumbo LEDs this unit can clearly display red or green indications. With a low current input to switch each LED independently (<1mA) & 12V DC operation, this unit is very versatile. Typical uses include remote indication of alarm system set/unset or electronic door status.

This unit is also available in a Traffic Light format that has a third amber LED in the centre (DA340-3-IP66).

Ordering information

DA340-3-IP66: Weather-resistant Red, Amber & Green LED indicator

With independently switched 10mm jumbo LEDs this unit can clearly display red, amber or green indications. With a low current input to switch each LED independently (<1mA) & 12V DC operation, this unit is very versatile. Typical uses include remote indication of alarm system set/unset or electronic door status.

This unit is also available with red & green LEDs only (DA340-IP66).

Ordering information

Technical information

Download Data sheet

Indication

DA340DA340-3
10mm Green LED10mm Green LED
-10mm Amber LED
10mm Red LED10mm Red LED

Input

Voltage10.5 > 14V DC
Power consumption< 55mA
Connection typePCB terminal block (2mm²)
High sensitivity trigger (per LED)+5V < +30V DC

Environmental

Operating temperature -10°C to +40°C
Storage temperature -20°C to +50°C
Operating relative humidityMaximum 95% non-condensing
Ingress protection IP66

Dimensions:

Product

Width80mm
Height140mm
Depth55mm
Weight< 0.9Kg
Enclosure materialPlastic
Finish
IP66 enclosure front: Clear
IP66 enclosure rear: Light grey
Internal PCB enclosure: White

Ordering information

GTINPart codeDescription
DA340-IP66IP66 Weather-resistant Red & Green LED indicator
DA340-3-IP66IP66 Weather-resistant Red, Amber & Green LED indicator

Other models

GTINPart codeDescription
DA340Red & Green LED indicator
DA340-3Red, Amber & Green LED indicator

Available from all good distributors.
