An anti-tamper switch fitted to the lid of this steel unit ensures a secure solution for important junction points.
The tamper switch provides normally open and normally-closed connections for optimum compatibility with any system, with the normally open contacts (closed when the unit is mounted with the lid on) pre-wired with 100mm of grey wire for convenience.
Download Data sheet
| Voltage | Maximum 30V |
| Current | Maximum 3A |
| Connection type | Terminal block (2.5mm²) |
| Connections | 48 + Earthing point |
| Operating temperature | -10°C to +60°C |
| Storage temperature | -20°C to +70°C |
| Operating relative humidity | Maximum 95% non-condensing |
| Ingress protection | IP20 |
| Width | 205mm |
| Height | 255mm |
| Depth | 50mm |
| Weight | < 1.9Kg |
| Enclosure material | Mild steel |
| Finish | Powder coated RAL9016 (White) |
| Width | 215mm |
| Height | 265mm |
| Depth | 60mm |
| Weight *including product | < 2.0Kg |
| Packaging material | Corrugated cardboard |
| GTIN | Part code | Description |
|---|---|---|
 |

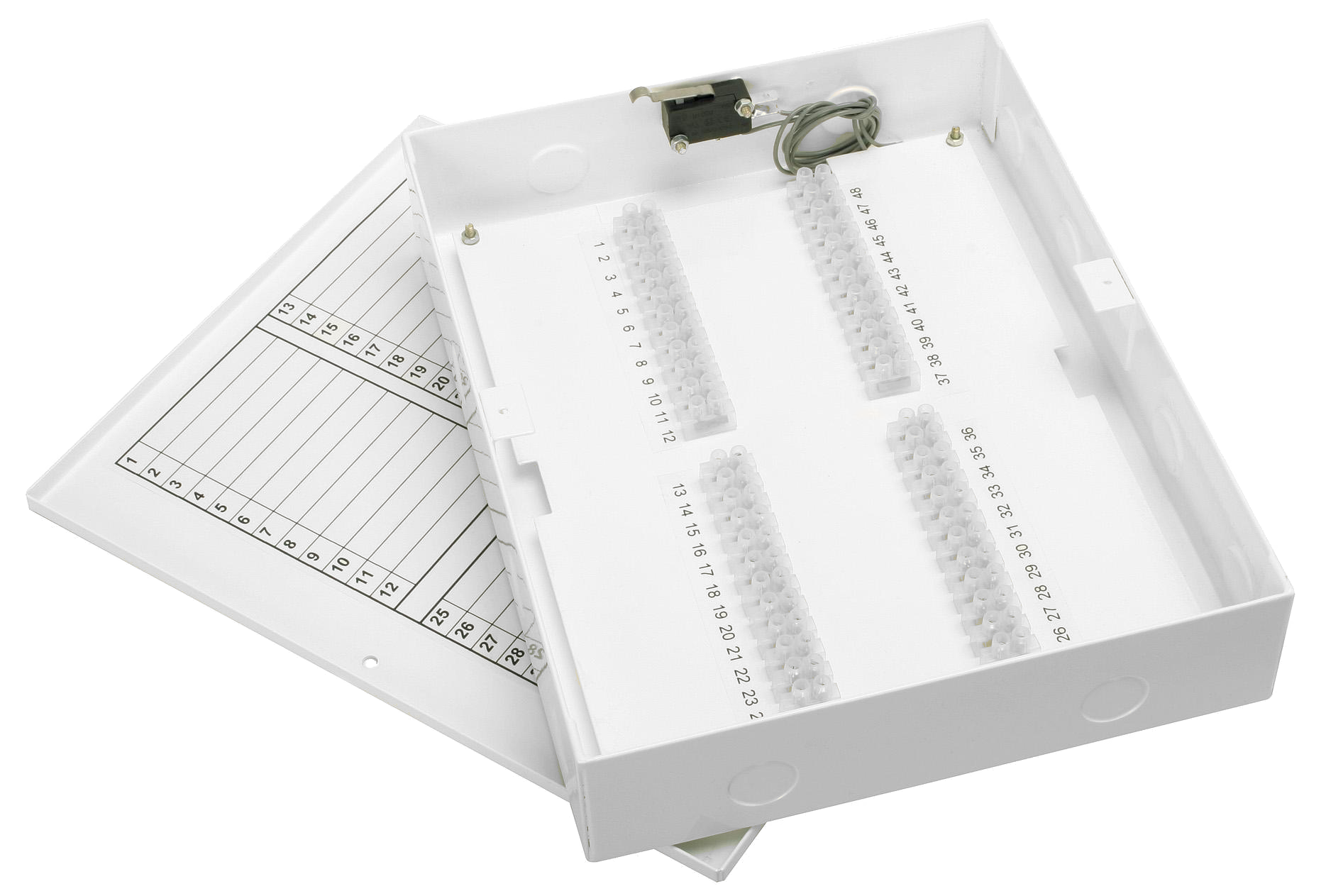

DA328 | 48-Way security junction box with lid tamper |
Available from all good distributors.
