DA255: Quad relay

  • Four 12V DC-powered SPCO relays
  • High and low transistor-driven inputs
  • Tamper-switched
  • Contact rating 30V DC 1A

DA255: Quad relay

Quad universal relay unit with 12V DC operation. This relay has four completely independent SPCO relays on one PCB.

The DA255 quad relay PCB is available with or without a mild steel enclosure. Typical uses include changing the polarity of signals and switching higher currents and voltages. It can also be used as an interface between different systems, e.g. intruder alarm to access control or fire alarm to access control. This unit can also be used for isolating communicator trigger inputs.

Ordering information

Technical information

Download Data sheet

Switching contacts
Relay channelsFour
Contact configurationSingle pole change-over (per channel)
VoltageMaximum 24V
CurrentMaximum 5A DC resistive load
Connection typePCB terminal block (2mm²)

Input
Voltage10.5 > 14V DC
Power consumption< 80mA
Connection typePCB terminal block (2mm²)
High sensitivity trigger+5V < +30V DC

Environmental

Operating temperature -10°C to +40°C
Storage temperature -20°C to +50°C
Operating relative humidityMaximum 95% non-condensing

Dimensions:

Product

DA255 DA255U
Width 90mm 80mm
Height 150mm 105mm
Depth 25mm 25mm
Weight < 0.06Kg < 0.04Kg
Enclosure material Mild steel N/a
Finish White PCB Only

Ordering information

GTINPart codeDescription

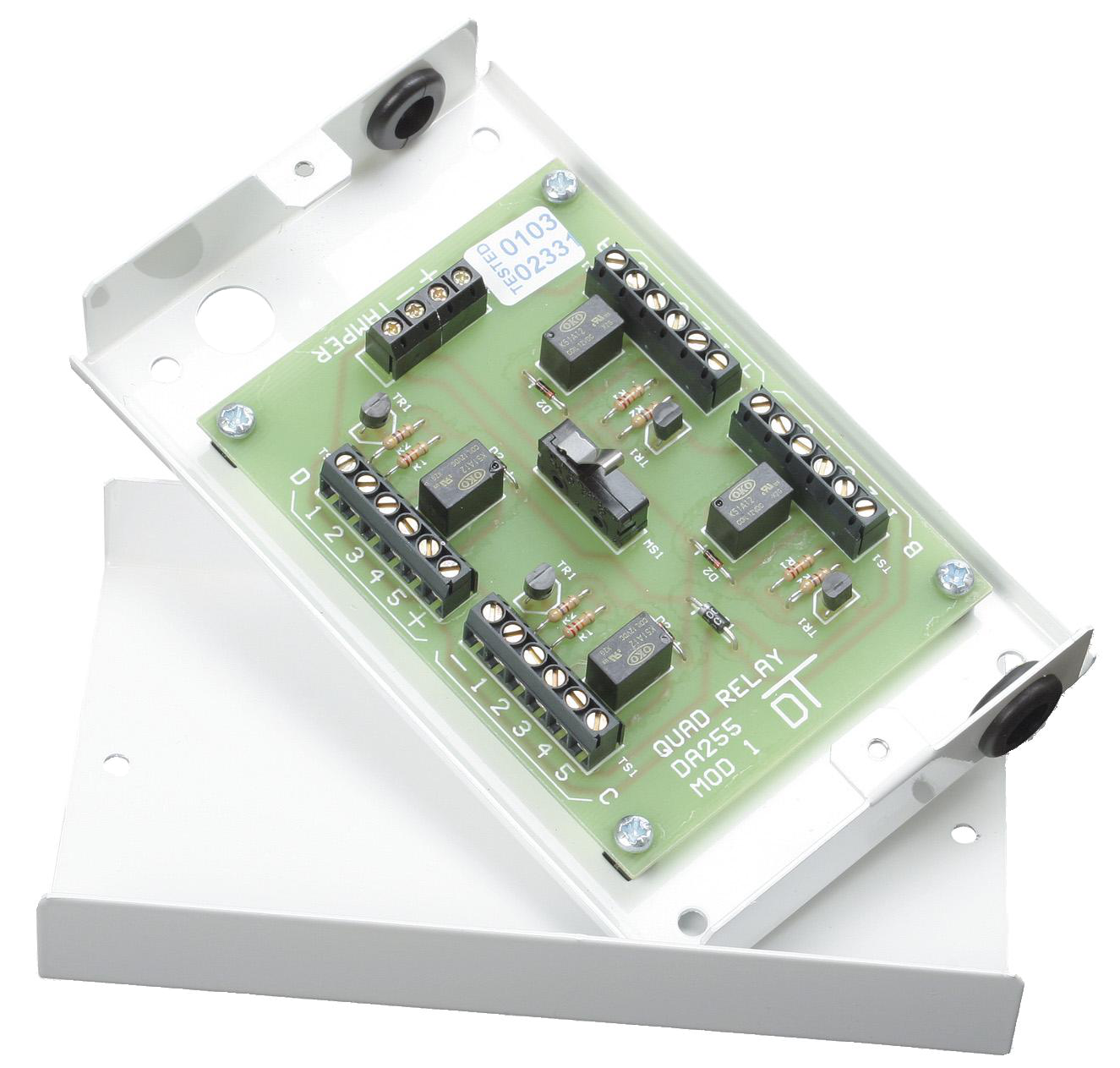

DA255Quad relay: mild steel enclosure

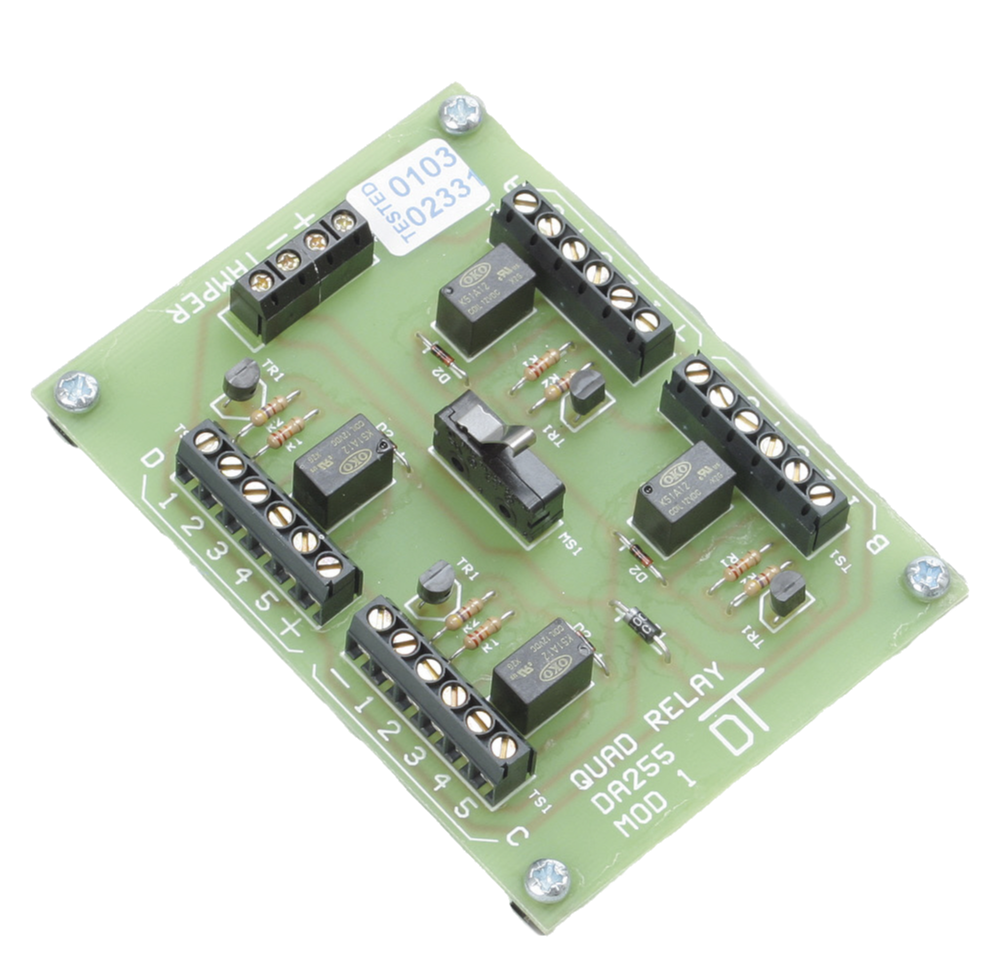

DA255UQuad relay: PCB-only, no enclosure

Available from all good distributors.
