19" Rack-mount SecurePoE 10Ah MidspanUPS 30W PoE injector

  • 10Ah MidspanUPS power injectors with 4 or 8 load ports
  • Battery packs are fast-fit and replaceable
  • Automatic battery low-voltage deep-discharge protection
  • Mains fail and low-battery relay monitoring contacts
  • 30W of load power availability per port, to IEEE 802.3:2012
  • 90-270V AC, 47-63Hz universal mains-input
  • System power status LED & monitoring contacts
  • Individual port power status LEDs and monitoring contacts
  • Tamper-switched secure steel enclosure
  • Automatic load-class detection

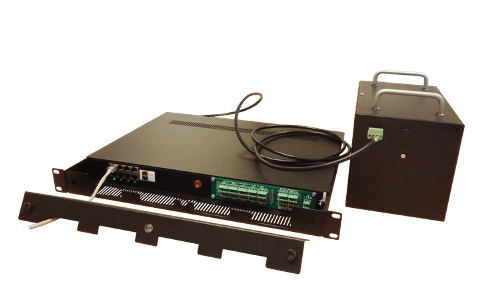

DA1010-RM: 19" Rack-mount SecurePoE 10Ah MidspanUPS 30W PoE injector

The DA1010-RM is just 1U in height. This 10Ah MidspanUPS PoE injector is ideal for rack-mounting where up to eight devices require up to 30W each of PoE power. With four or eight through-port models available, you can connect devices to be powered with or without a data connection.

Four or eight output versions are available. Each output has an RJ45 data port,(e.g. from the network switch) and an RJ45 load port for the PoE device, that outputs the data and power.

Outputs have LED indication to show if a compatible device is connected and powered. In addition there are SPCO clean contacts for monitoring the power status of each output. The unit also has power on LED indication and SPCO clean contacts to signal power failure.

Ordering information

Estimated stand-by times

Designed for reliable battery back-up of PoE devices, our SecurePoEâ„¢ range includes battery-maintained MidspanUPS and MultispanUPS models that provide continuous power to PoE ports when mains power is not available. The MultispanUPS models maintain power to both the SecurePoE unit and the included Cisco network switch.

Power back-up is provided by our replaceable, customized battery packs, which use high reliability Yuasa batteries. Different capacities are available to cater for different stand-by time requirements and we offer guaranteed replacement battery pack availability.

Whether powering CCTV cameras, video intercoms, locks or other device types, Power over Ethernet battery stand-by is available off-the-shelf.

Output loadBattery capacity
1.2Ah7Ah10Ah
5W9 Hours65 Hours100 Hours
12W4 Hours30 Hours44 Hours
25W1.75 Hours14.5 Hours20 Hours
50W40 Minutes6.5 Hours9.5 Hours
75W23 Minutes4 Hours6 Hours
100W14 Minutes2.75 Hours4 Hours

Technical information

Download Data sheet

Ordering information

GTINPart codeDescription
DA1010-RM-419" rack-mount SecurePoE 10Ah MidspanUPS 4 x 30W PoE+ injector
DA1010-RM-819" rack-mount SecurePoE 10Ah MidspanUPS 8 x 30W PoE+ injector
DA1010-RM-4-G19" rack-mount SecurePoE 10Ah MidspanUPS 4 x 30W Gigabit PoE+ injector
DA1010-RM-8-G19" rack-mount SecurePoE 10Ah MidspanUPS 8 x 30W Gigabit PoE+ injector
DA1010-RM-BATT48V 7Ah VRLA Yuasa battery pack for DA1010-RM
DA1010-RM-4-NB19" rack-mount SecurePoE 10Ah MidspanUPS 4 x 30W PoE+ injector with no batteries included
DA1010-RM-8-NB19" rack-mount SecurePoE 10Ah MidspanUPS 8 x 30W PoE+ injector with no batteries included
DA1010-RM-4-G-NB19" rack-mount SecurePoE 10Ah MidspanUPS 4 x 30W Gigabit PoE+ injector with no batteries included
DA1010-RM-8-G-NB19" rack-mount SecurePoE 10Ah MidspanUPS 8 x 30W Gigabit PoE+ injector with no batteries included
DA1010-RM-BATT-NBBattery pack unit for DA1010-RM with no batteries included

Other models

GTINPart codeDescription
DA1010-EX-1IP66 SecurePoE 10Ah MidspanUPS 1 x 30W PoE+ injector
DA1010-EX-2IP66 SecurePoE 10Ah MidspanUPS 2 x 30W PoE+ injector
DA1010-EX-4IP66 SecurePoE 10Ah MidspanUPS 4 x 30W PoE+ injector
DA1010-EX-1-GIP66 SecurePoE 10Ah MidspanUPS 1 x 30W Gigabit PoE+ injector
DA1010-EX-2-GIP66 SecurePoE 10Ah MidspanUPS 2 x 30W Gigabit PoE+ injector
DA1010-EX-4-GIP66 SecurePoE 10Ah MidspanUPS 4 x 30W Gigabit PoE+ injector
DA1010-IN-1Indoor SecurePoE 10Ah MidspanUPS 1 x 30W PoE+ injector
DA1010-IN-2Indoor SecurePoE 10Ah MidspanUPS 2 x 30W PoE+ injector
DA1010-IN-4Indoor SecurePoE 10Ah MidspanUPS 4 x 30W PoE+ injector
DA1010-IN-1-GIndoor SecurePoE 10Ah MidspanUPS 1 x 30W Gigabit PoE+ injector
DA1010-IN-2-GIndoor SecurePoE 10Ah MidspanUPS 2 x 30W Gigabit PoE+ injector
DA1010-IN-4-GIndoor SecurePoE 10Ah MidspanUPS 4 x 30W Gigabit PoE+ injector

Available from all good distributors.
