Rack-mount power supplies
With manually switched outputs
Loading... Made in Britain
Description

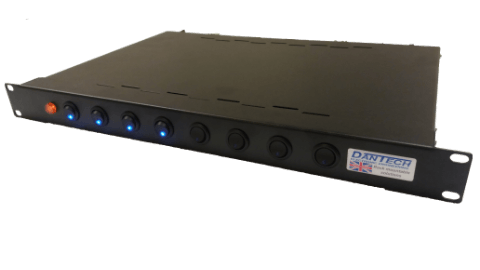

The DAV1U is part of our range of slim, high efficiency rack-mount power supplies. This range of rack-mount power supplies has front mounted switches to manually control each output. Each switch has an integrated LED to visually show each outputs status. No more engineer call-outs for blown fuses. Featuring automatic self-resetting fuses, maintenance is now even easier.

Tidy, quick and simple installations can be achieved with the pluggable fast-fit rear connections. Rear terminations detach from the unit allowing easy connection of the outputs. This output PCB is located on the rear of the enclosure, next to the IEC C14 (Kettle lead style) mains connector.

Features
Product code Description Data sheet Leaflet
DAV1U12D0808 1U Rack-mount 12V DC 8A with eight 1A manually switched outputs. PDF PDF
DAV1U12D0804 1U Rack-mount 12V DC 8A with four 2A manually switched outputs. PDF PDF
DAV1U12D0802 1U Rack-mount 12V DC 8A with two 4A manually switched outputs. PDF PDF
DAV1U12D1608 1U Rack-mount 12V DC 16A with eight 2A manually switched outputs. PDF PDF
DAV1U12D1604 1U Rack-mount 12V DC 16A with four 4A manually switched outputs. PDF PDF
DAV1U24D0808 1U Rack-mount 24V DC 8A with eight 1A manually switched outputs. PDF PDF
DAV1U24D0804 1U Rack-mount 24V DC 8A with four 2A manually switched outputs. PDF PDF
DAV1U24A0808 1U Rack-mount 24V AC 8A with eight 1A manually switched outputs. PDF PDF
DAV1U24A0804 1U Rack-mount 24V AC 8A with four 2A manually switched outputs. PDF PDF
DAV1U24A0802 1U Rack-mount 24V AC 8A with two 4A manually switched outputs. PDF PDF
DAV1U24A1608 1U Rack-mount 24V AC 16A with eight 2A manually switched outputs. PDF PDF
DAV1U24A1604 1U Rack-mount 24V AC 16A with four 4A manually switched outputs. PDF PDF
*These units are available for same day despatch worldwide. Next day delivery available to mainland UK.
