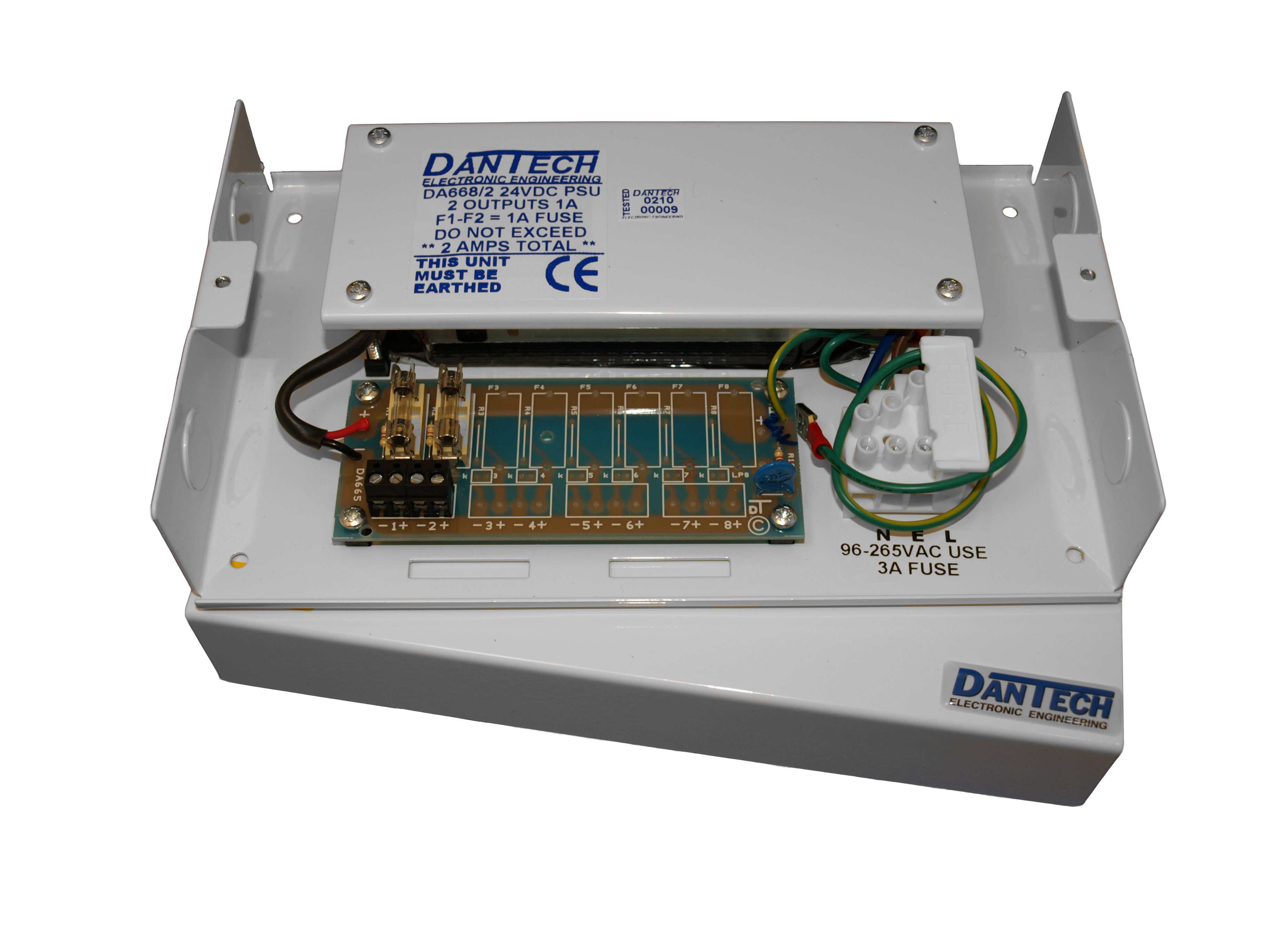

DA668-2: Mild steel 2x 24V 1A DC Multi-purpose 2A power supply
These switched-mode power supplies can accept a wide range of mains voltage from as little as 90V to 270V with frequencies of 47 to 63Hz. These units will provide a regulated output of 24V DC up to 1A total via two individually fused 1A outputs.
Manufactured and tested in Britain, this range of power supplies has a five-year warranty, allowing installers to fit and forget. It is ideal for where high reliability is required and where companies may have long service or maintenance contracts. These units are intended for use with CCTV cameras. However, they are multi-purpose and can be used in a range of security applications.
Up to eight individually fused outputs
The DA668 range of power supplies are available with one, two, four or eight individually fused outputs.
- DA668-1: One 24V 2A DC individually fused output
- DA668-2: Two 24V 1A DC individually fused output
- DA668-4: Four 24V 500mA DC individually fused output
- DA668-8: Eight 24V 250mA DC individually fused output
Mild steel powder-coated enclosures
Precision-made from mild steel and powder-coated white for an easy-clean, durable finish, this enclosure is ideal for wall mounting. The enclosure includes 'knock-outs' for gland entries.
Includes a spares-bag
mounting kit
Each unit includes a spares-bag for the installation engineer. This kit contains useful items, such as cable glands, wall plugs and fixing screws.
90V to 270V AC @ 47Hz to 63Hz
Designed to operate on standard mains power voltages world-wide this unit can accept a wide range mains-input of between 90V to 270V AC @ 47Hz to 63Hz.
