The DA469 is part of our range of slim, high efficiency rack-mount power supplies.
No more engineer call-outs for blown fuses. Featuring automatic self-resetting fuses, maintenance is now even easier. Combined with our FIVE YEAR warranty, you can now fit and forget.
The highly efficient design provides 24V AC with a maximum available current of 8A, in just 1U of rack space.

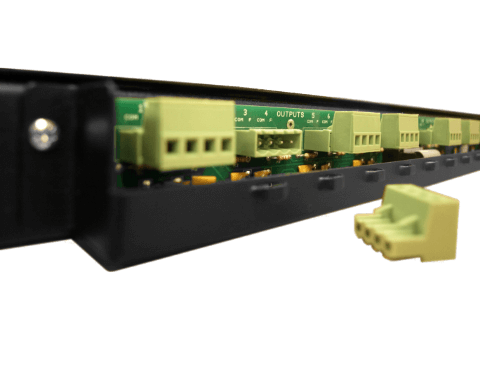

Tidy, quick and simple installations can be achieved easily with the "plug & play" rear connections. Termination is provided by a four way plug, which detaches from the PCB mounted socket and allows easy connection of each pair of outputs. This output PCB is located on the rear of the enclosure, next to the IEC C14 (Kettle lead style) mains connector.
Typical uses include powering CCTV cameras and camera housing heaters, or any location where there is only limited rack space available.
|Product code||Description||Data sheet||Leaflet|
|DA469-4||4 x 24V AC 2A, slim 1U rack-mount power supply.|
|DA469-8||8 x 24V AC 1A, slim 1U rack-mount power supply.|
|DA469-16||16 x 24V AC 500mA, slim 1U rack-mount supply.|
