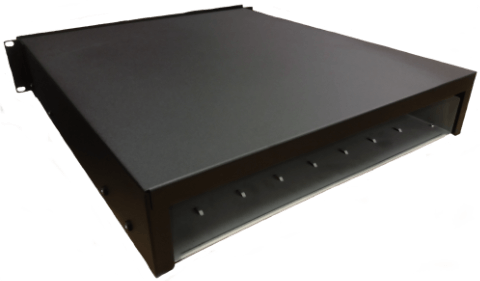

19" 2U rack-mount multi-purpose equipment drawer enclosure

  • Key-locking
  • Includes equipment mounting plate
  • Tamper-switched mild steel construction
  • Made in Britain with 5 year warranty

DA459: 19" 2U rack-mount multi-purpose equipment drawer enclosure

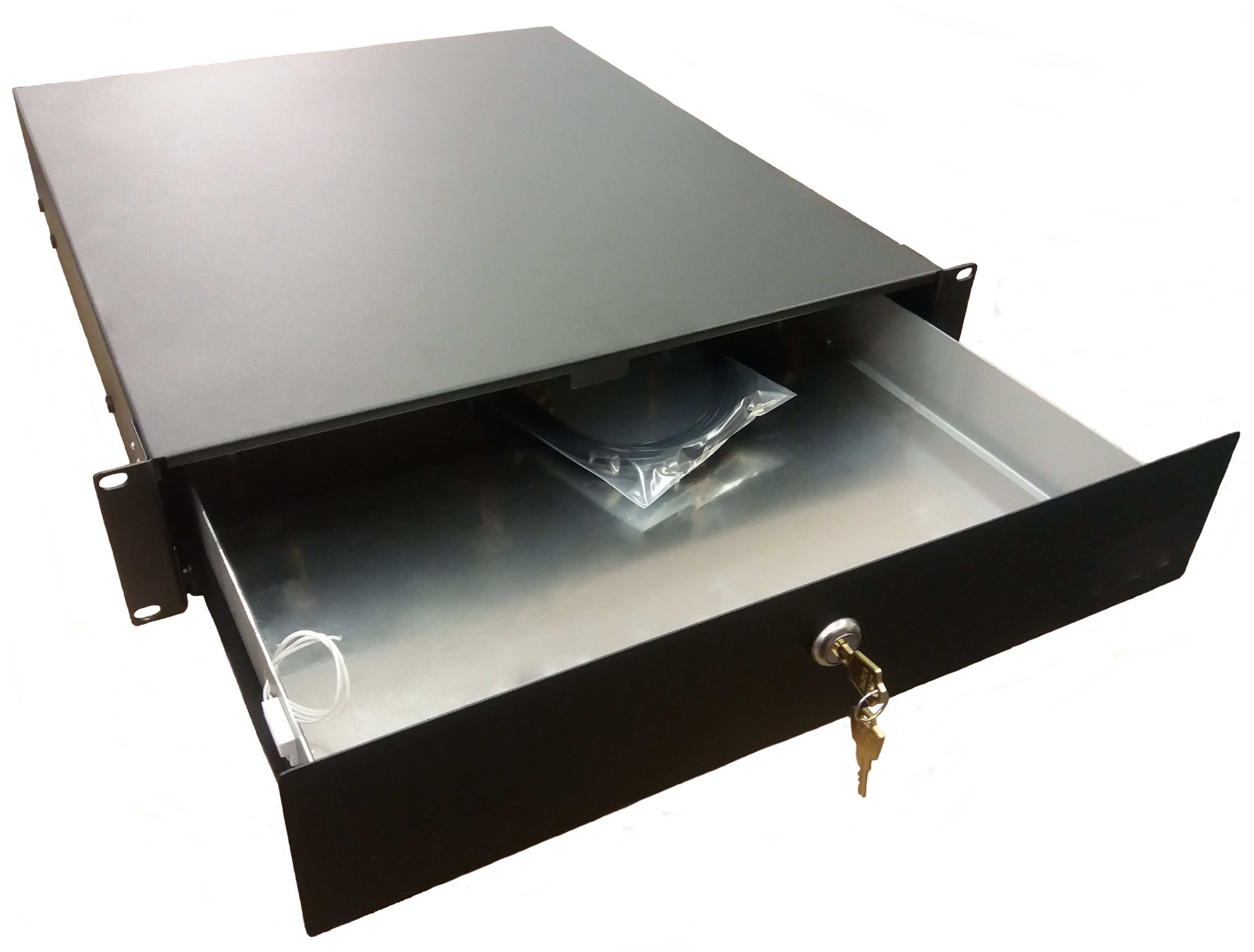

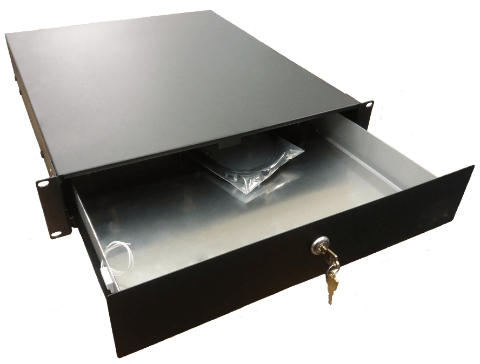

Rack mounting systems are the ideal solution for efficient and organised use of space. This 19" 2U rack mount sliding drawer is ideal for housing non-standard sized equipment that needs to fit standard racks or just as a handy drawer for ancillary parts, batteries or spares.

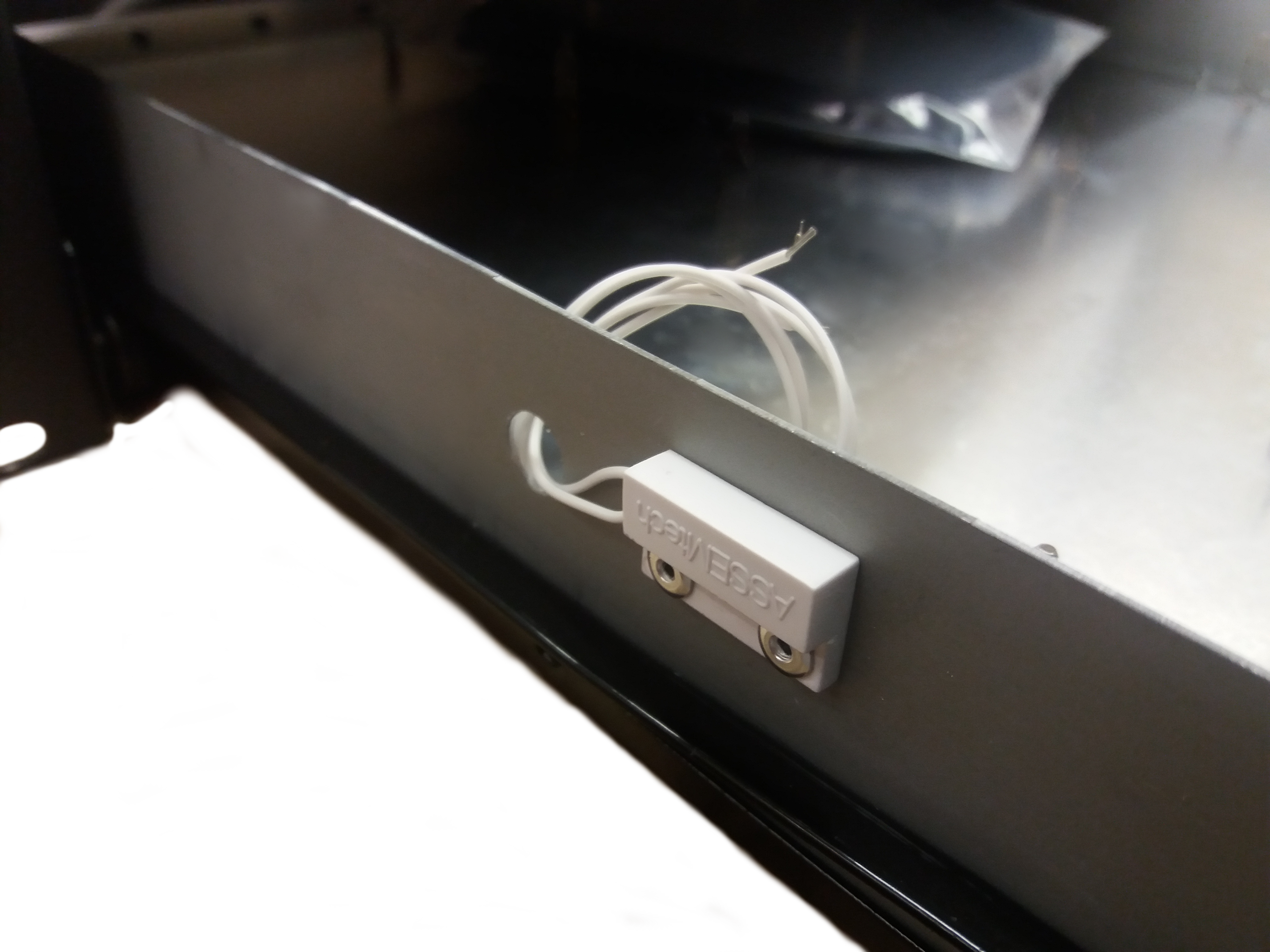

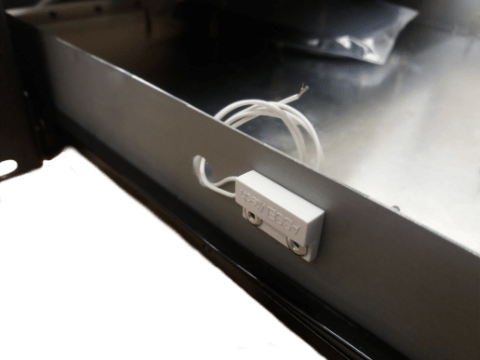

The rack drawer features a sliding mechanism for smooth, easy access. As standard, the drawer is fitted with a key-lock and magnetic tamper switch with an equipment mounting plate. The enclosure and drawer is finished in a black powder coat.

Ordering information

Technical information

Download Data sheet

Environmental

Operating temperature -10°C to +70°C
Storage temperature -20°C to +70°C
Operating relative humidityMaximum 95% non-condensing
Ingress protection N/A

Dimensions:

Product

Width 480mm (19" rack-mount)
Height 88mm (2U rack-mount)
Depth505mm
Weight< 8.4Kg
Enclosure materialMild steel
FinishTextured semi-gloss black

Ordering information

GTINPart codeDescription
DA45919" 2U rack-mount multi-purpose equipment drawer enclosure

Available from all good distributors.
