Dantech Electronic Engineering, powering security.
Selectable voltage power supply
12V or 24V DC with monitoring
Made in Britain

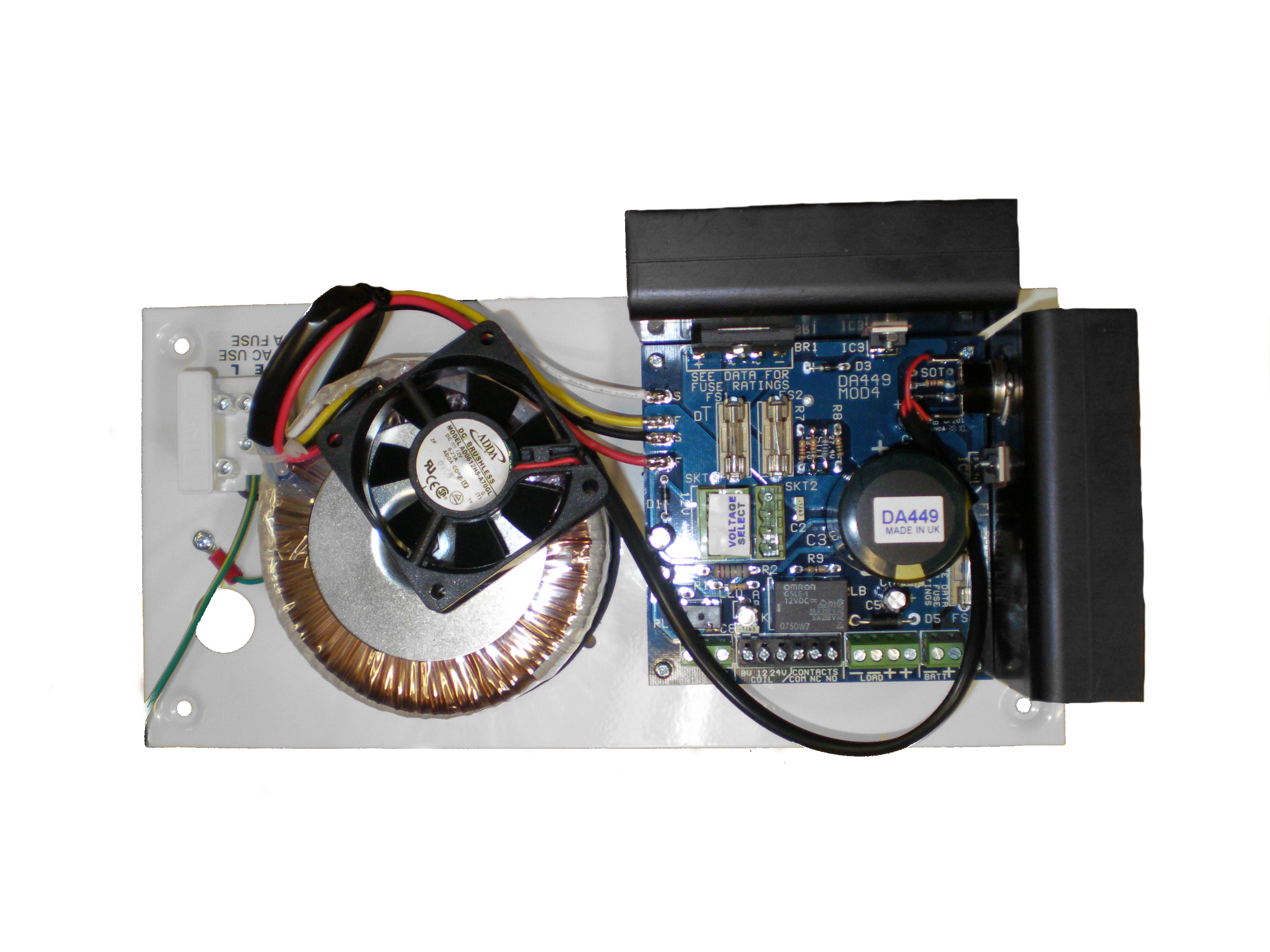

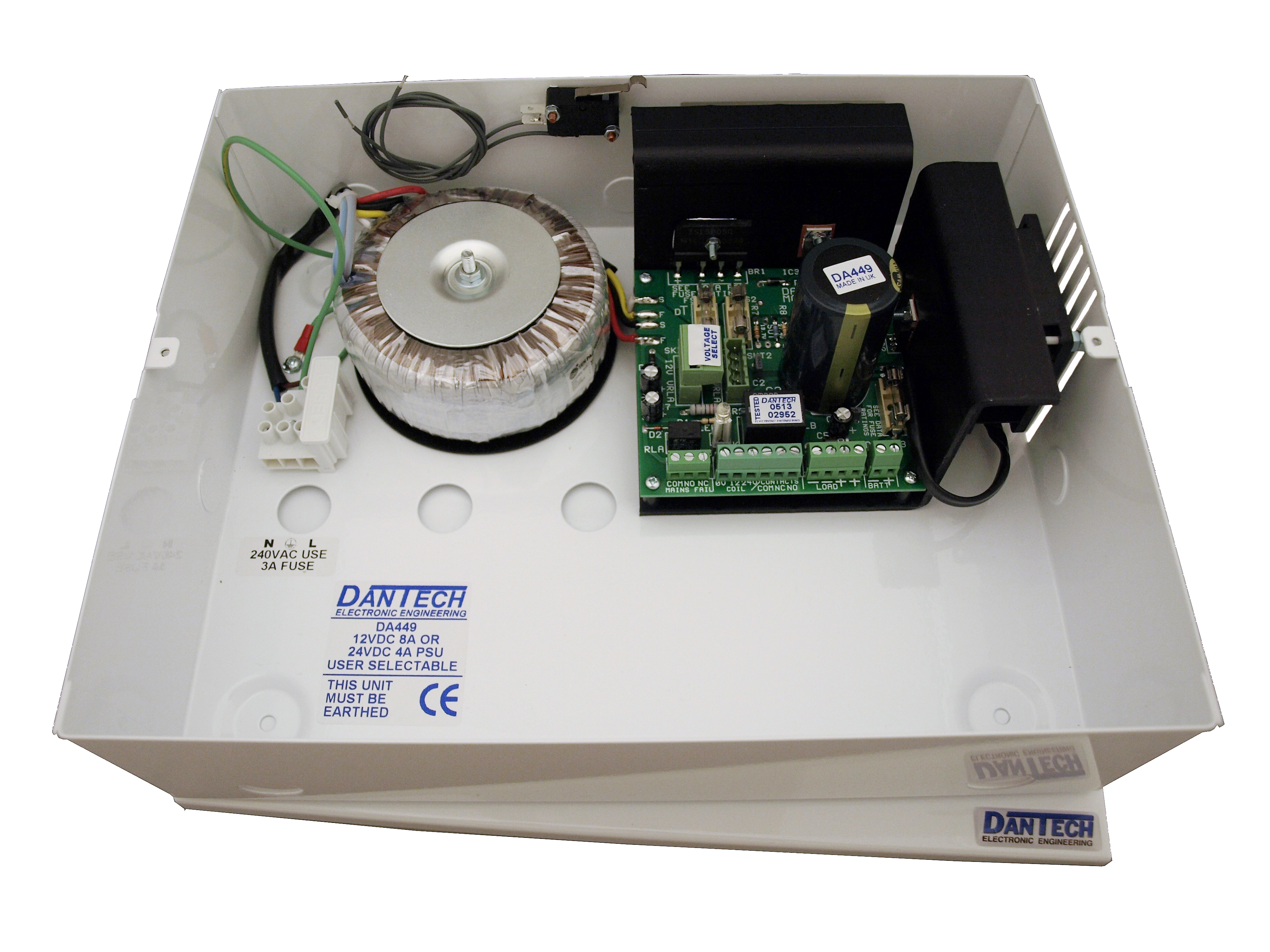

This model of power supply provides either a 12V DC 8A or a 24V DC 4A output. The output voltage can be changed from 12V to 24V by using a simple selector plug. These units provide two separate output terminal pairs and can house and charge two 12V 7Ah VRLA batteries.

Typical uses are for powering door access controllers, electric releases and maglocks.

These units are equipped with separate SPCO (Single Pole Change Over) contacts for 'mains fail' monitoring.

There is also an undedicated SPCO 'universal' relay that can be driven from a 12V or 24V DC supply. A typical use for this relay would be interfacing a fire panel with the power supply to de-power maglocks in the event of a fire condition.

Manufactured and tested in Britain, this range of power supplies has a five year warranty, allowing installers to fit and forget. It is ideal for where high reliability is required and where companies may have service or maintenance contracts for long periods of time.

Product code Description Data sheet Leaflet
DA449 8A 12V DC (13.7V) or 4A 24V DC (27.4V), within a mild steel enclosure. PDF PDF
DA449-4OP 8A 12V DC (13.7V) or 4A 24V DC (27.4V), within a mild steel enclosure
& DA4WS 4-Way splitter PCB.
DA449-8OP 8A 12V DC (13.7V) or 4A 24V DC (27.4V), within a mild steel enclosure
& DA8WS 8-Way splitter PCB.
*These units are available for same day despatch worldwide. Next day delivery available to mainland UK.
