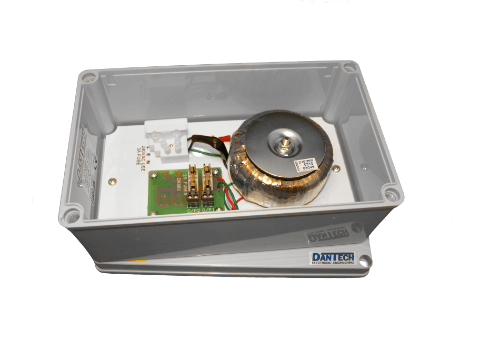

230V AC to 2 x 24V 2A AC Power supply in an ABS IP66 enclosure

  • Two 2A 24V AC fused outputs
  • IP66 Weather-resistant enclosure
  • Includes a spares-bag mounting kit
  • Input 230V AC @ 50Hz (+/- 10%)

DA381-230V-IP66: 230V AC to 2 x 24V 2A AC Power supply in an ABS IP66 enclosure

This simple range of multi-purpose metal-cased, IP66 rated or open-frame plate-mounted power supplies provides 4A of 24V AC via individually fused outputs.

Manufactured and tested in Britain, this range of power supplies has a five-year warranty, allowing installers to fit and forget. It is ideal for where high reliability is required and where companies may have long service or maintenance contracts. Typical uses include powering door access controllers, electronic door releases, magnetic locks and CCTV cameras.

Ordering information

Similar products

DA391: 1 x 12V DC (13.7V) 4A in a mild steel enclosure.

  • 1x 12V 4A DC output
  • Integrated UPS battery back-up function
  • Mild steel powder-coated enclosures
  • Input 230V AC @ 50Hz (+/- 10%)

DA398: 2 x 12V DC (13.7V) 2A in a mild steel enclosure.

  • 2x 12V 2A DC outputs
  • Integrated UPS battery back-up function
  • Mild steel powder-coated enclosures
  • Input 230V AC @ 50Hz (+/- 10%)

DA397: 1x 12V DC (13.7V) 4A in a mild steel enclosure.

  • 8x 12V 500mA DC output
  • Integrated UPS battery back-up function
  • Mild steel powder-coated enclosures
  • Input 230V AC @ 50Hz (+/- 10%)

Technical information

Download Data sheet

Output
Outputs2
Voltage24V AC
Current2A (4A maximum total)
Connection typePCB terminal block (2.5mm²)
Fused20 x 5mm 2A quick-blow glass fuse
Power on indicationnone

Input
Voltage230V AC @ 50Hz (+/- 10%)
Power consumption< 125VA
Connection type10mm² internal terminal block (3 x 1.5mm² or 2 x 2.5mm²)
Fused3A Mains fuse (BS1362)
Power indicationnone

Environmental

Operating temperature -10°C to +40°C
Storage temperature -20°C to +50°C
Operating relative humidityMaximum 95% non-condensing
Ingress protection IP66

Dimensions:

Product

Width150mm
Height250mm
Depth100mm
Weight2.1Kg
Enclosure materialAcrylonitrile Butadiene Styrene (ABS)

Shipping packaging

Width160mm
Height265mm
Depth110mm
Weight *including product< 2.2Kg
Packaging materialCorrugated cardboard

Ordering information

GTINPart codeDescription
DA381-230V-IP66 2x 24V AC 2A outputs within a IP66 enclosure, 230V input

Other models

GTINPart codeDescription
DA381-230V 2x 24V AC 2A outputs in a mild steel enclosure, 230V input
DA381-110V 2x 24V AC 2A outputs in a mild steel enclosure, 110V input
DA381-110V-IP66 2x 24V AC 2A outputs within a IP66 enclosure, 110V input
DA381-230V-P Open-frame 2x 24V AC 2A output power supply, 230V input
DA381-110V-P Open-frame 2x 24V AC 2A outputs power supply, 110V input

Available from all good distributors.
