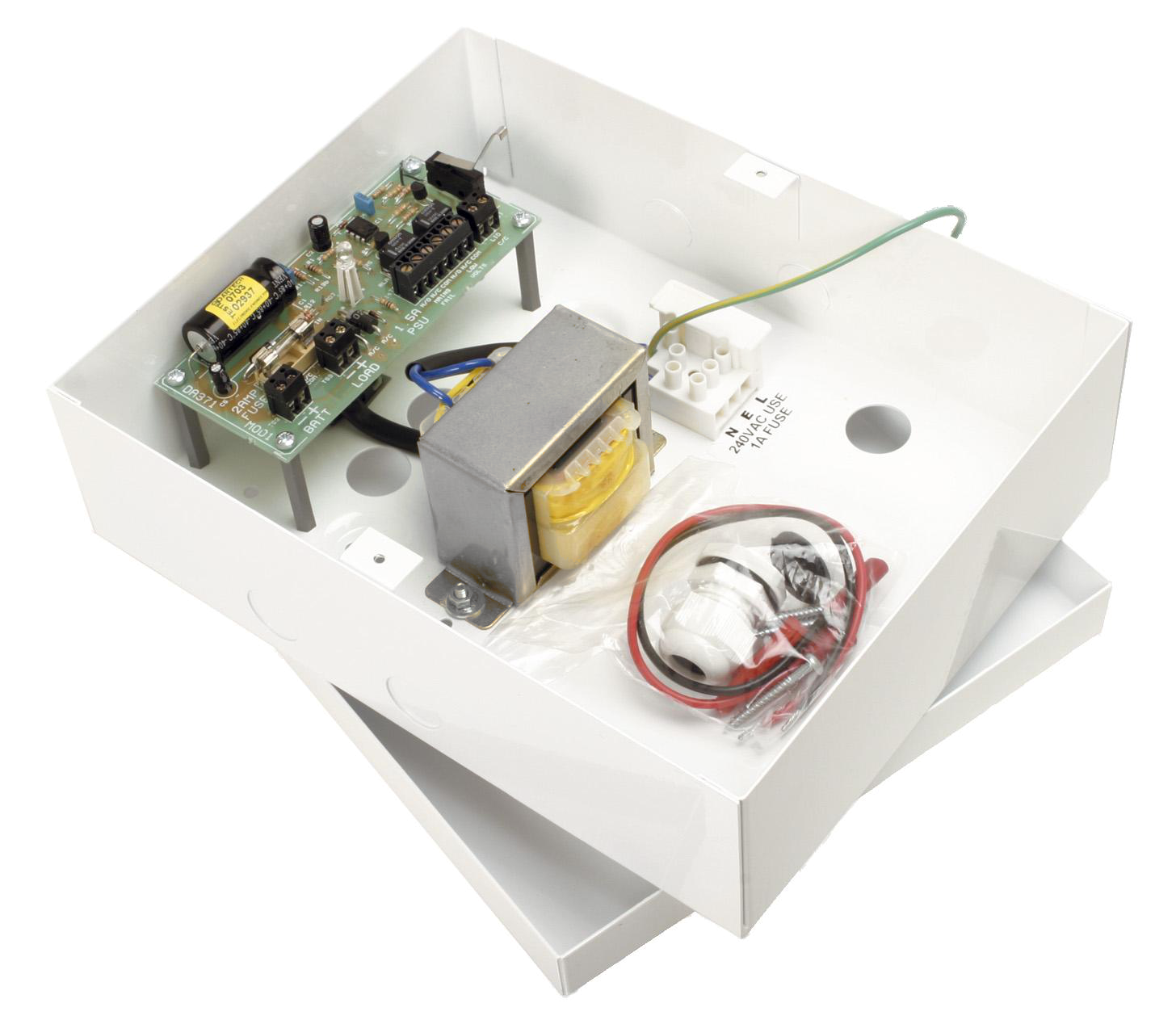

12V 1.5A DC Steel-cased power supply with integrated UPS, mains-failure and low-battery monitoring

  • 1.5A 12V DC fused output
  • Integrated UPS battery back-up function
  • Mains failure & Low-battery signalling
  • Mild steel powder-coated enclosures
  • Includes a spares-bag mounting kit
  • Input 230V AC @ 50Hz (+/- 10%)

DA371: 12V 1.5A DC Steel-cased power supply with integrated UPS, mains-failure and low-battery monitoring

This simple range of multi-purpose metal-cased power supplies provides 1.5A of 13.7V DC via a fused output, for 12V DC equipment. The enclosure can also house a 7Ah VRLA battery, which the power supply will automatically charge while mains power is present, and use in the event of a mains power loss.

Manufactured and tested in Britain, this range of power supplies has a five-year warranty, allowing installers to fit and forget. It is ideal for where high reliability is required and where companies may have long service or maintenance contracts. Typical uses include powering door access controllers, electronic door releases, magnetic locks and CCTV cameras.

Ordering information

1.5A 12V DC fused output

This output can provide 12V up to 1.5A DC continuously and is protected with a quick-blow 2A glass fuse.

Integrated UPS battery back-up function

A 7Ah VRLA battery can be placed in the mild steel enclosure and connected to the battery terminals of the PCB. This power supply will automatically float-charge the battery to capacity, providing continuous uninterrupted power from the battery if mains power is unavailable.

Batteries are not included. This unit can be used with or without batteries fitted.

Mains failure signalling

If the mains-input power is not detected for approximately 30 seconds, the mains-fail relay will change-over. The delay helps prevent false triggering during common power fluctuations within the national grid. The clean normally open-circuit (N/O) & normally-closed-circuit (N/C) relay contacts can be used to switch or signal other systems.

Low-battery signalling

Should the connected VRLA battery be nearing depletion, the Low Vol relay will change-over. The clean N/O & N/C relay contacts can be used to switch or signal other systems.

Mild steel powder-coated enclosures

Precision-made from mild steel and powder-coated white for an easy-clean, durable finish, this enclosure is ideal for wall mounting. The enclosure includes knock-outs for cable gland entries.

Includes a spares-bag mounting kit

Each unit includes a spares-bag for the installation engineer. This kit contains useful items, such as cable glands, wall plugs and fixing screws.

Input 230V AC @ 50Hz (+/- 10%)

Designed to operate on UK standard mains power, this unit will accept a mains-powered input of 230V AC @ 50Hz (+/- 10%)

Similar products

Technical information

Download Data sheet

Output

Voltage12V DC (13.7V)
Current1.5A (maximum total)
Connection typePCB terminal block (2.5mm²)
Fused20 x 5mm 2A quick-blow glass fuse
Power on indicationLED indicator

Mains fail signalling contacts

Contact configurationSingle pole change-over
Change over≈ 30 seconds switching delay
VoltageMaximum 30V DC
CurrentMaximum 1A
Connection typePCB terminal block (2.5mm²)

Low-battery signalling contacts

Contact configurationSingle pole change-over
Change over≦ 9V Battery voltage
VoltageMaximum 30V DC
CurrentMaximum 1A
Connection typePCB terminal block (2.5mm²)

Input

Voltage230V AC @ 50Hz (+/- 10%)
Power consumption< 72VA
Connection type10mm² internal terminal block (3 x 1.5mm² or 2 x 2.5mm²)
Fused3A Mains fuse (BS1362)
Power indicationLED Indicator

Environmental

Operating temperature -10°C to +40°C
Storage temperature -20°C to +50°C
Operating relative humidityMaximum 95% non-condensing
Ingress protection IP20

Dimensions:

Product

Width210mm
Height260mm
Depth80mm
Weight< 3.63Kg
Enclosure materialMild steel
FinishPowder coated RAL9016 (white)

Shipping packaging

Width220mm
Height270mm
Depth90mm
Weight *including product< 3.7Kg
Packaging materialCorrugated cardboard

Ordering information

GTINPart codeDescription
5060501320019 DA37112V 1.5A DC Steel-cased power supply with integrated UPS, mains-failure and low-battery monitoring

Available from all good distributors.
