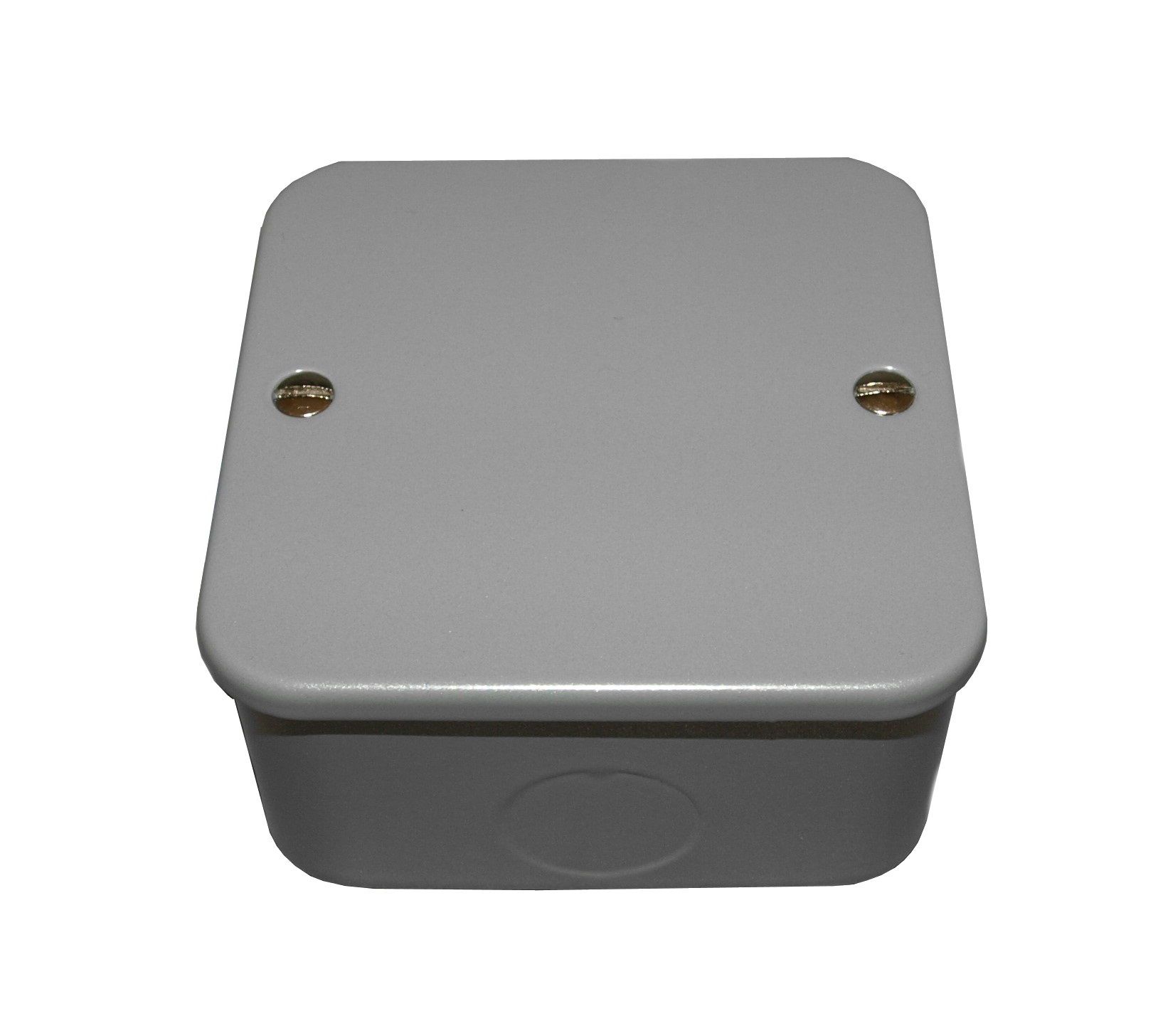

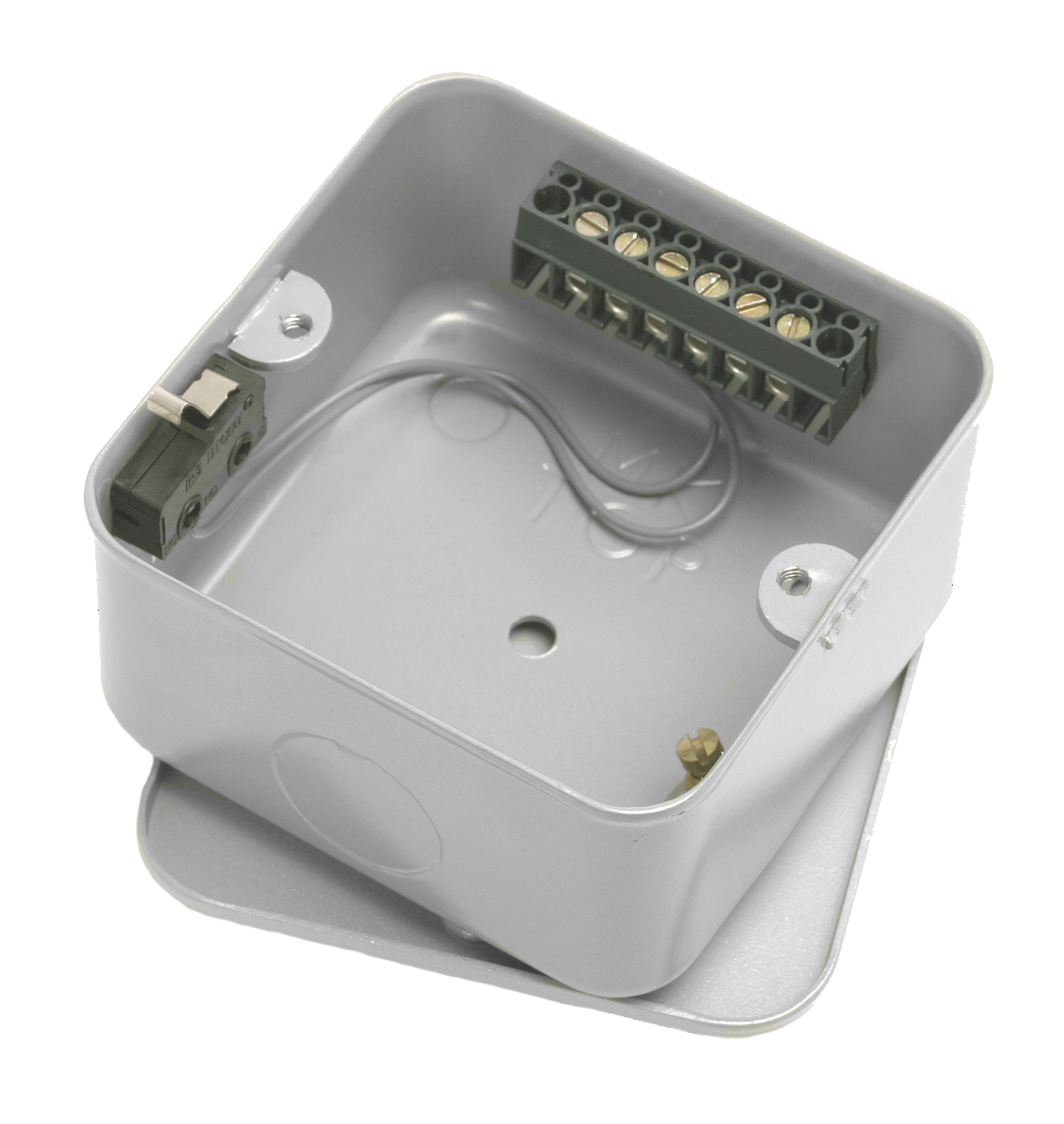

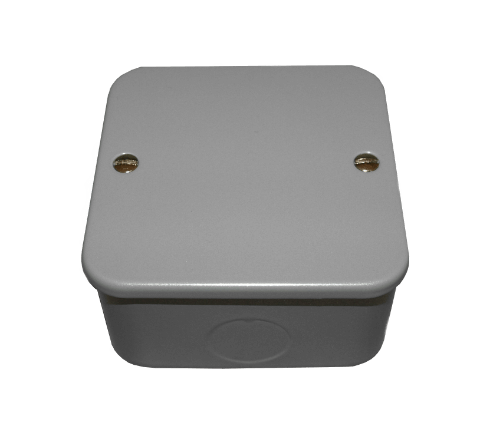

This small, single-gang surface-mounting junction box is equipped with a 6-way terminal block and earthing point. In addition this junction box is also fitted with a lid tamper switch that can used to signal electrical systems that the junction box has been opened.
Download Data sheet
| Voltage | Maximum 30V |
| Current | Maximum 3A |
| Connection type | Terminal block (2.5mm²) |
| Connections | 6 + Earthing point |
| Operating temperature | -10°C to +60°C |
| Storage temperature | -20°C to +70°C |
| Operating relative humidity | Maximum 95% non-condensing |
| Ingress protection | IP20 |
| Width | 75mm |
| Height | 75mm |
| Depth | 45mm |
| Weight | < 0.15Kg |
| Enclosure material | Mild steel |
| Finish | Powder coated grey |
| GTIN | Part code | Description |
|---|---|---|
 |
DA318 | Single-gang 75mm x 75mm x 45mm 6-Way junction box with tamper |
Available from all good distributors.
