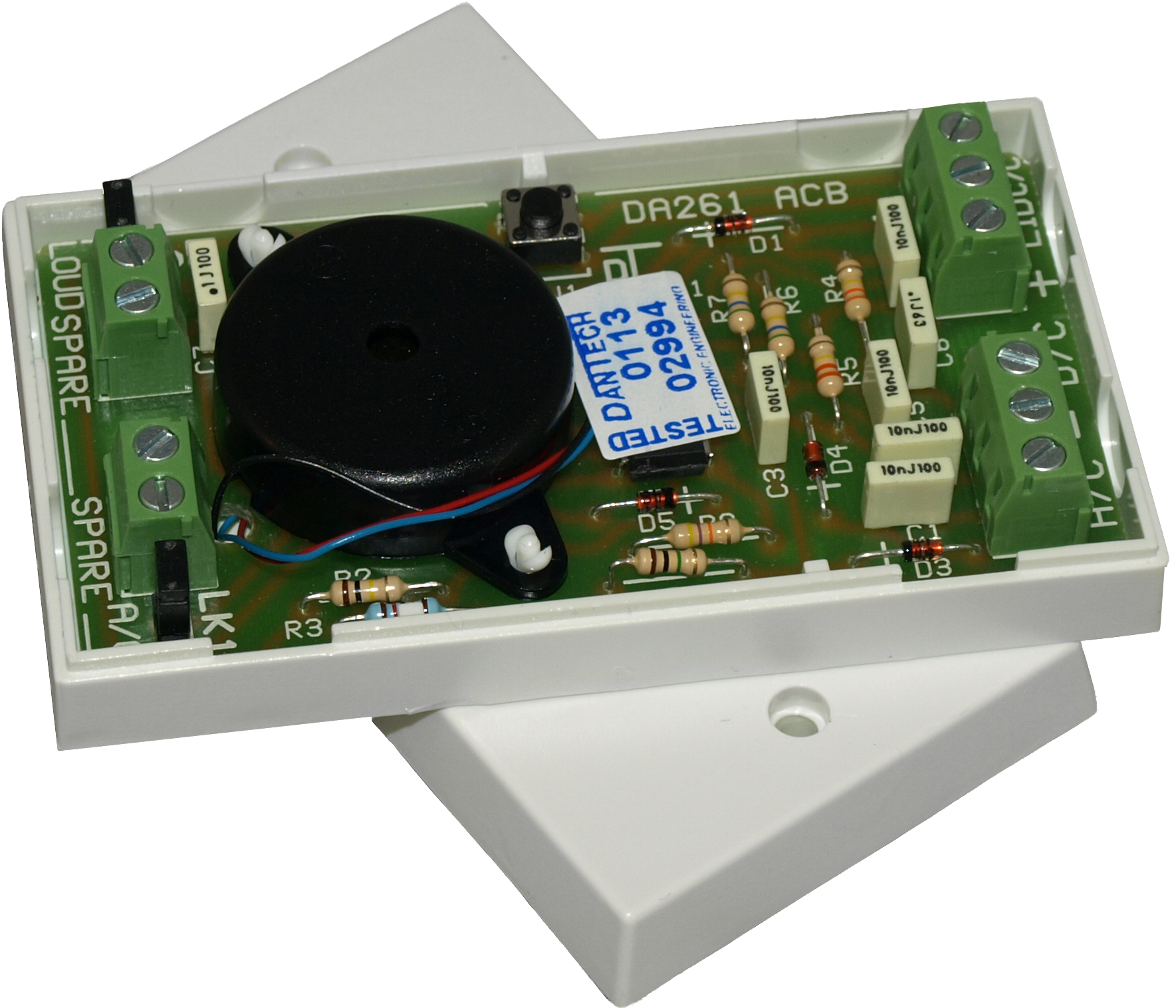

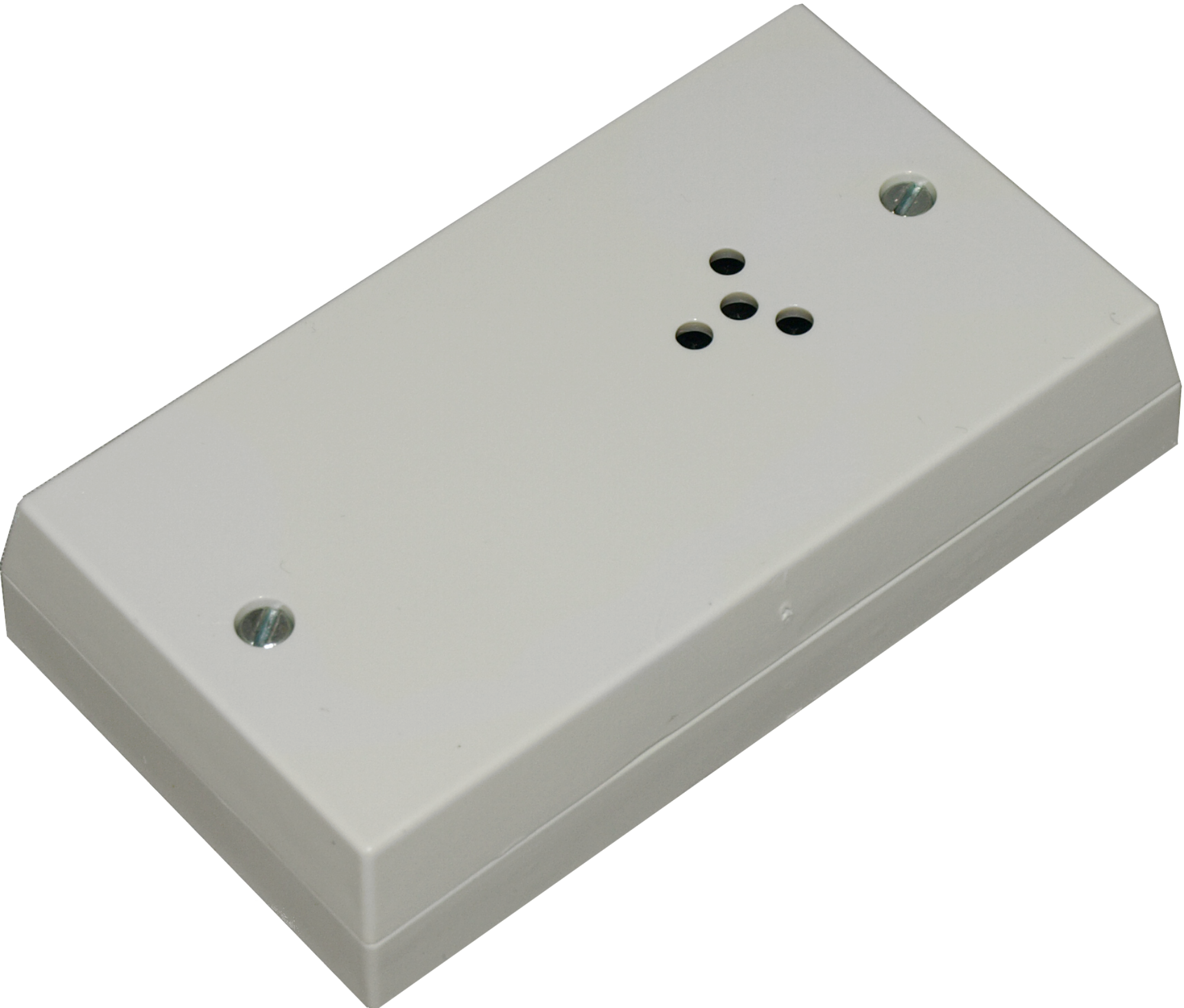

DA261: Versatile extension sounder

  • Flame-retardant ABS enclosure
  • 12V DC-powered with AC/DC trigger input
  • Current consumption 5mA on & .075mA off

DA261: Versatile extension sounder

A visually unobtrusive sounder for remote indication purposes. Link-selected AC or DC input, DC-driven, link-selected low and high sound level. The unit’s small size makes it ideal for mounting on exit route door frames. 12V DC operation. Intended for use as a security system extension bleep.

Ordering information

Technical information

Download Data sheet

Output

Sound level80<90dbA (maximum at 1m)

Input

Voltage10.5 > 14V DC
Power consumption< 5mA
Connection typePCB terminal block (2.5mm²)
Trigger+4.3V > 30V AC or +10.5V > 14V DC

Environmental

Operating temperature -10°C to +40°C
Storage temperature -20°C to +50°C
Operating relative humidityMaximum 95% non-condensing
Ingress protection IP20

Dimensions:

Product

Width90mm
Height50mm
Depth20mm
Weight< 0.06Kg
Enclosure materialAcrylonitrile Butadiene Styrene (ABS)
FinishWhite

Ordering information

GTINPart codeDescription
DA261Versatile extension sounder

Available from all good distributors.
