19" Rack-mount SecurePoE 1.2Ah MultispanUPS 30W PoE injector

  • 1, 2 or 4 load output ports with 30W of PoE power availability each, to IEEE 802.3:2012
  • Integrated UPS function 1.2Ah VRLA battery back-up power
  • Power status LEDs & monitoring contacts
  • Network switch and PoE power are both battery-backed
  • Maintain data network during accidental or deliberate power failures or faults
  • Easily keep security infrastructure independent of existing networks
  • Ability to extend the range of Power over Ethernet and network, up to 200m between network and PoE devices
  • Secure steel enclosure with fast cable entry system & tamper switching

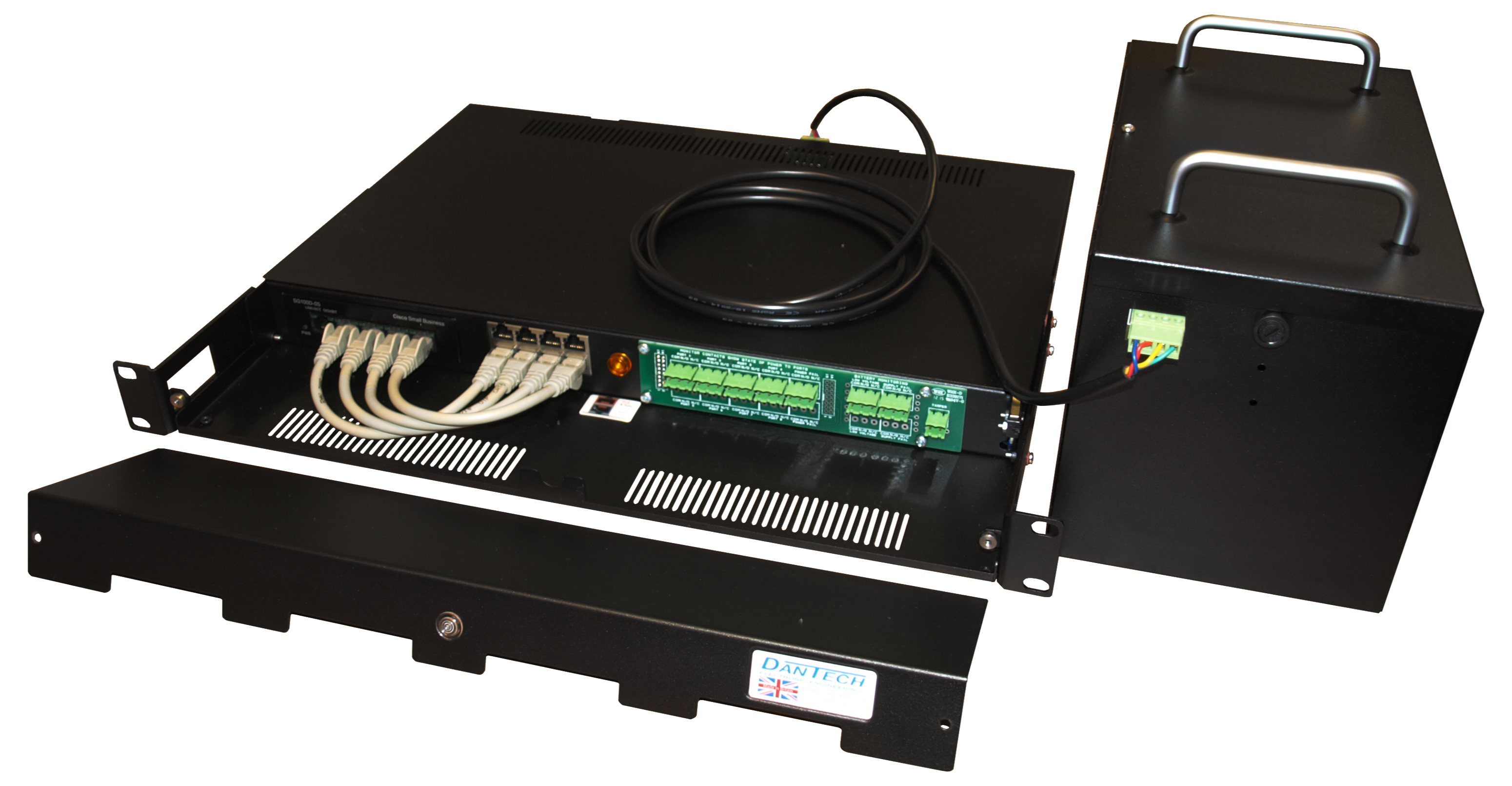

DA1101-RM: 19" Rack-mount SecurePoE 1.2Ah MultispanUPS 30W PoE injector

The DA1101-RM is just 1U in height. This 1.2Ah MultispanUPS PoE injector is ideal for rack-mounting where up to four devices require up to 30W each of PoE power. You can connect devices to be powered with or without a data connection.

Each output has an RJ45 data port,(e.g. from the network switch) and an RJ45 load port for the PoE device, that outputs the data and power.

Outputs have LED indication to show if a compatible device is connected and powered. In addition there are SPCO clean contacts for monitoring the power status of each output. The unit also has power on LED indication and SPCO clean contacts to signal power failure.

Ordering information

Multispan with integrated 5-port network switch

Multispan and MultispanUPS products include a 5-port network switch. Available in an indoor mild steel wall mount enclosure, exterior IP66 weather-resistant enclosure ideal for harsh environments, or simply as a 1U rack-mount product.

These switched Multispan models are ideal for installations where there is limited access to, or availability of, Ethernet ports on the network. Only a single Ethernet data cable is required to send and receive data from up to four devices, whether or not they require Power over Ethernet.

Estimated stand-by times

Designed for reliable battery back-up of PoE devices, our SecurePoEâ„¢ range includes battery-maintained MidspanUPS and MultispanUPS models that provide continuous power to PoE ports when mains power is not available. The MultispanUPS models maintain power to both the SecurePoE unit and the included Cisco network switch.

Power back-up is provided by our replaceable, customized battery packs, which use high reliability Yuasa batteries. Different capacities are available to cater for different stand-by time requirements and we offer guaranteed replacement battery pack availability.

Whether powering CCTV cameras, video intercoms, locks or other device types, Power over Ethernet battery stand-by is available off-the-shelf.

Output loadBattery capacity
1.2Ah7Ah10Ah
5W9 Hours65 Hours100 Hours
12W4 Hours30 Hours44 Hours
25W1.75 Hours14.5 Hours20 Hours
50W40 Minutes6.5 Hours9.5 Hours
75W23 Minutes4 Hours6 Hours
100W14 Minutes2.75 Hours4 Hours

Technical information

Download Data sheet

Ordering information

GTINPart codeDescription
DA1101-RM-4-G19" rack-mount SecurePoE 1.2Ah MultispanUPS 4 x 30W Gigabit PoE+ injector
DA1101-RM-BATT48V 7Ah VRLA Yuasa battery pack for DA1101-RM
DA1101-RM-4-G-NB19" rack-mount SecurePoE 1.2Ah MultispanUPS 4 x 30W Gigabit PoE+ injector with no batteries included
DA1101-RM-BATT-NBBattery pack unit for DA1101-RM with no batteries included

Other models

GTINPart codeDescription
DA1101-EX-1-GIP66 SecurePoE 1.2Ah MultispanUPS 1 x 30W Gigabit PoE+ injector
DA1101-EX-2-GIP66 SecurePoE 1.2Ah MultispanUPS 2 x 30W Gigabit PoE+ injector
DA1101-EX-4-GIP66 SecurePoE 1.2Ah MultispanUPS 4 x 30W Gigabit PoE+ injector
DA1101-IN-1-GIndoor SecurePoE 1.2Ah MultispanUPS 1 x 30W Gigabit PoE+ injector
DA1101-IN-2-GIndoor SecurePoE 1.2Ah MultispanUPS 2 x 30W Gigabit PoE+ injector
DA1101-IN-4-GIndoor SecurePoE 1.2Ah MultispanUPS 4 x 30W Gigabit PoE+ injector

Available from all good distributors.
