2Amp 24V DC
Power
Supplies |
Technical
Information
These PSUs are designed to allow 96V - 250V Inputs.
 |
DA668/8
A
power supply that provides 8 x 250mA 24V DC outputs. Each output is
fused and is provided with internal LED indication. The unit is
intended for use with CCTV cameras. Metal cased.
Technical
Information |
 |
 |
DA668/4
A power supply that provides 4 x 500mA 24V DC outputs. Each output is fused and is provided with internal LED indication. The unit is intended for use with CCTV cameras. Metal cased.
Technical
Information |
 |
 |

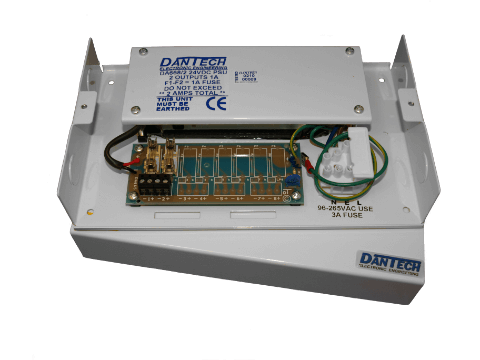

DA668/2
A power supply that provides 2 x 1Amp 24V DC outputs. Each output is fused and is provided with internal LED indication. The unit is intended for use with CCTV cameras. Metal cased.
Technical
Information |
 |
 |
DA668/1
A power supply that provides 1 x 2Amp 24V DC outputs. Each output is fused and is provided with internal LED indication. The unit is intended for use with CCTV cameras. Metal cased.
Technical
Information |
 |
Technical Information
24V DC POWER SUPPLIES, Input voltage UK
mains.
All metal cases are
finished in a white gloss powder coating.
All plastic cases are black
flame retardant ABS.
| Model No |
DA668/8 |
DA668/4 |
DA668/2 |
DA668/1 |
| Current
(Amps) |
8 x 250mA |
4 x 500mA |
2 x 1A |
1 x 2A |
| Voltage
(nominal) |
24V DC
|
24V DC |
24V DC |
24V DC |
| Input
Voltage |
96V - 250V
|
96V - 250V |
96V - 250V |
96V - 250V |
| Case |
Metal Cased |
Metal Cased |
Metal Cased |
Metal Cased |
| Weight (Kg) |
1.300 |
1.300 |
1.300 |
1.300 |
Dimensions
W x H x D |
145 x 230 x 45 |
145 x 230 x 45 |
145 x 230 x 45 |
145 x 230 x 45 |
Datasheets |
|
 |
 |
 |
These products are
part of the wide range of items we manufacture for the security
industry. We are constantly widening our range by adding new items as
technology advances. Data sheets are available on
request.
We also design
& manufacture to customers special
requirements.
|
