12V DC 8A PSU Range

8Amp 12V DC Power Supplies

Technical Information

These PSUs are designed to allow 96V - 250V Inputs.

	DA667/16 A power supply that provides 16 x 500mA 12V DC outputs. Each output is fused and is provided with internal LED indication. The unit is intended for use with CCTV cameras. Metal Cased. Technical Information

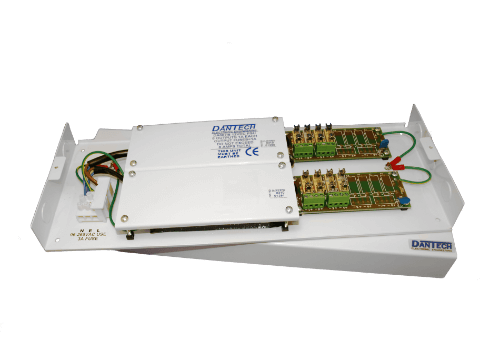

	DA667/8 A power supply that provides 8 x 1Amp 12V DC outputs. Each output is fused and is provided with internal LED indication. The unit is intended for use with CCTV cameras. Metal Cased. Technical Information

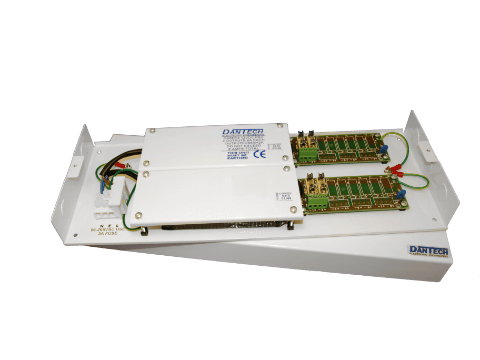

	DA667/4 A power supply that provides 4 x 2Amp 12V DC outputs. Each output is fused and is provided with internal LED indication. The unit is intended for use with CCTV cameras. Metal Cased. Technical Information

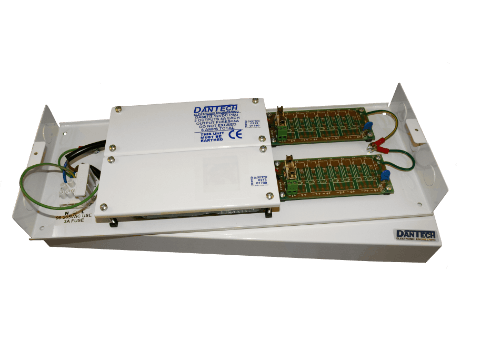

	DA667/2 A power supply that provide 2 x 4Amp 12V DC outputs. Each output is fused and is provided with internal LED indication. The unit is intended for use with CCTV cameras. Metal Cased. Technical Information

Technical Information

12V DC POWER SUPPLIES Input voltage UK mains

All metal cases are finished in a white gloss powder coating.
All plastic cases are black flame retardant ABS.

Model No	DA667/16	DA667/8	DA667/4	DA667/2
Current (Amps)	16 x 0.5mA	8 x 1A	4 x 2A	2 x 4A
Voltage (nominal)	12V DC	12V DC	12V DC	12V DC
Input Voltage	96V - 250V	96V - 250V	96V - 250V	96V - 250V
Case	Metal Cased	Metal Cased	Metal Cased	Metal Cased
Weight (Kg)	2.300	2.300	2.300	2.300
Dimensions W x H x D	400 x 155 x 40	400 x 155 x 40	400 x 155 x 40	400 x 155 x 40
Datasheets

These products are part of the wide range of items we manufacture for the security industry.
We are constantly widening our range by adding new items as technology advances. Data sheets are available on request.

We also design & manufacture
to customers special requirements.
