12V DC 8A Rack Mountable PSUs

Technical Information

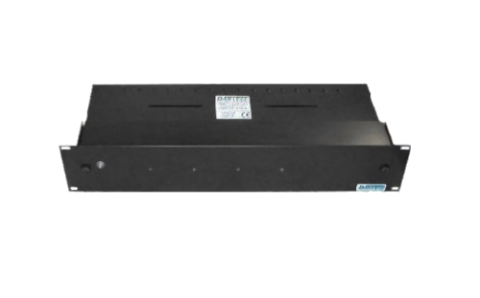

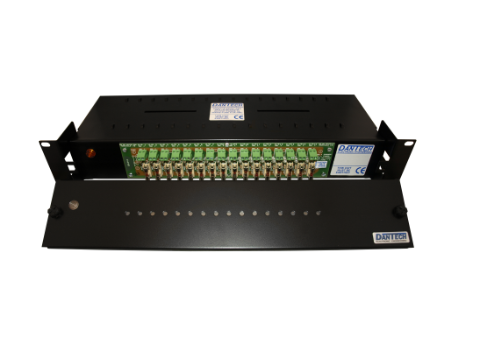

12V DC 8A Rack Mountable PSU

DA442/16
A power supply with 16 x 500mA 12V DC, Individually fused and indicated outputs. Intended for powering 12V DC CCTV cameras and similar equipment.
These PSUs are supplied in a 19" 2U Rack mountable case..


Technical Information

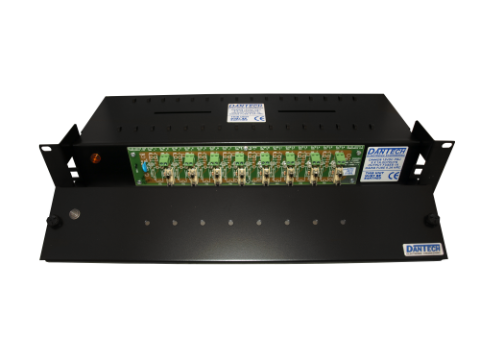

12V DC 8A Rack Mountable PSU DA442/8
A power supply with 8 x 1Amp 12V DC, Individually fused and indicated outputs. Intended for powering 12V DC CCTV cameras and similar equipment.
These PSUs are supplied in a 19" 2U Rack mountable case.







Technical Information


Technical Information

Rackmount POWER SUPPLIES

Model No DA442/16 DA442/8
Supply Voltage (nominal) 240V 240V
Output Voltage (nominal) 12V DC 12V DC
Current (Amps) 16 x 500mA 8 x 1Amp

Outputs

16 8

Mains Indication

(YES)NEON (YES)NEON
Weight (Kg) 3.200 3.200
Dimensions
W x H x D 		480 x 88 (2U) x 165 480 x 88 (2U) x 165
Datasheets

These products are part of the wide range of items we manufacture for the security industry.
We are constantly widening our range by adding new items as technology advances. Data sheets are available on request.


We also design & manufacture
to customers special requirements.
