Setting Switches
|
Technical Information
 |
DA123/F
Remote Setting Switch. (flush mounting). A highly water resistant final exit setting switch using a ‘normally open’ magnetically operated sealed dry reed switch. The push button diaphragm is a flexible moulding and there is no metal spring to corrode or break. Supplied with a neoprene gasket and hardened steel zinc plated fixing screws. Connections are via an integral 1metre long 4 core white flylead. It fits into a hole 19mm in diameter and 30mm deep.
Technical Information
|
 |
DA123/FLED

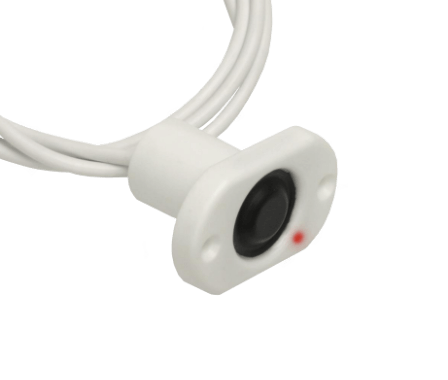

As the DA123/F but including a Red LED concealed within the moulding to give visual indication of system setting.
Technical Information
|
 |
DA123/S
A surface mount version of the DA123/F switch, for use where there is insufficient room to recess the flush version.
Technical Information |
|
DA123/SBZR
As the DA123/S but with a built in buzzer to give audible indication of system setting.
All versions are now available in a “closed-circuit” going open configuration, suffix “/CC” (i.e. DA123/F/CC).
Technical Information |
Technical Information
SETTING SWITCHES
All switch casings are white ABS with a black ALCRYN push button.
| Model No |
DA123/F |
DA123/FLED |
DA123/S |
DA123/SBZR |
| Flush Mount |
YES |
YES
|
NO |
NO |
| Surface Mount |
NO |
NO |
YES |
YES |
| LED |
NO |
YES |
NO |
NO |
| Buzzer |
NO |
NO |
NO |
YES |
| Switch Rating |
30V DC 100mA |
30V DC 100mA |
30V DC 100mA |
30V DC 100mA |
| Weight (Kg) |
0.030 |
0.030 |
0.035 |
0.035 |
Dimensions
W x H x D |
28 x 45 x 35 |
28 x 45 x 35 |
28 x 45 x 21 |
28 x 45 x 21 |
These switches can also be used as ‘request to exit’ buttons on access control systems.
We also design & manufacture
to customers special requirements.
|
